Custom manufacturing example · Rubber protective sheath/silicone rubber dust cover

CUSTOM RUBBER & SILICONE MANUFACTURING

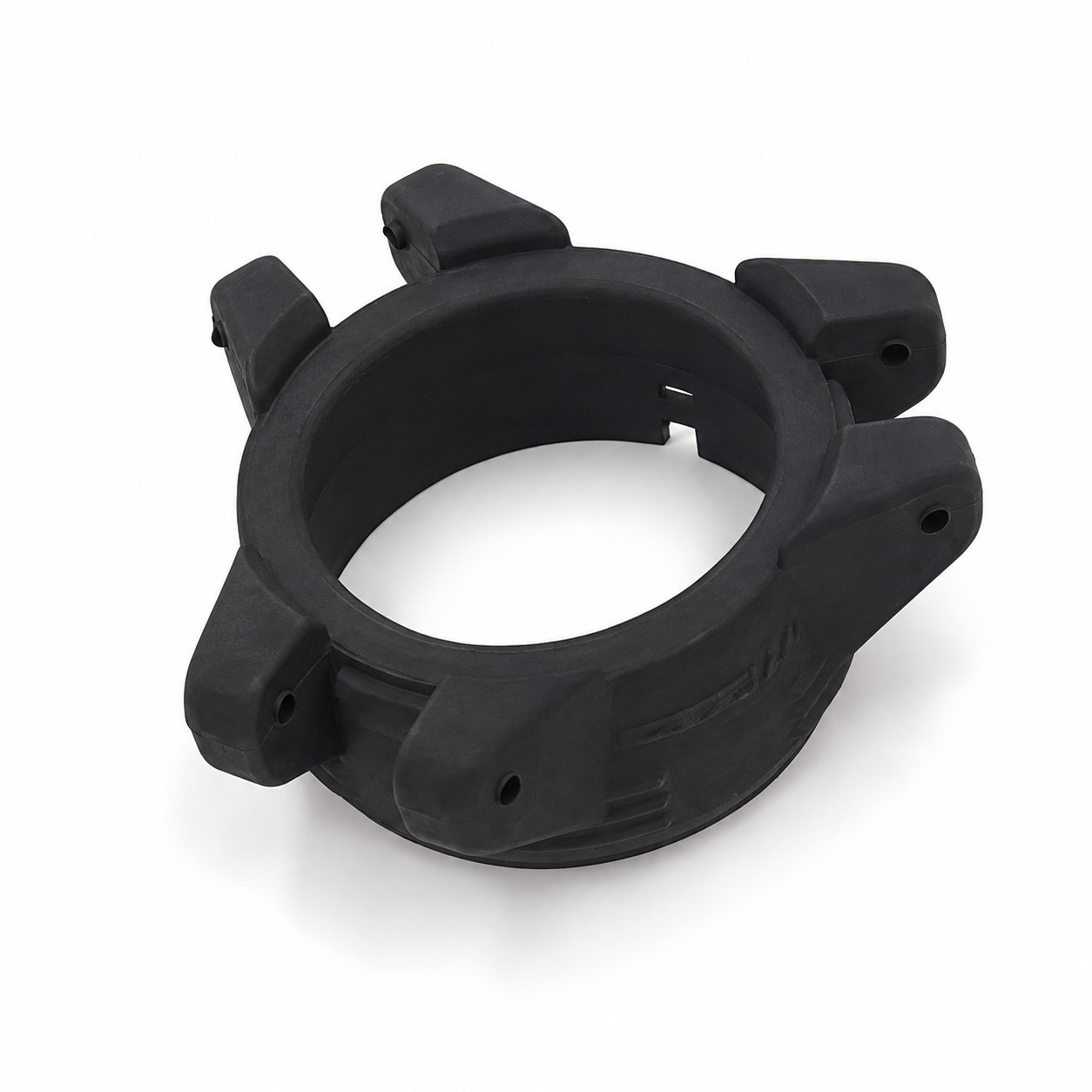

Rubber protective sheath/silicone rubber dust cover

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

A rubber protective sheath surrounds a component with a custom shaped covering. A silicone dust cover version can be adapted in size, color, and hardness to the exposed region. The internal profile should follow the covered part and establish where the sheath ends and how it remains in position.

Consider the entire length being covered. A narrow section at the entrance may need to pass a wider feature during installation, and a shoulder farther inside can stop the sheath before it reaches its intended seat. The fitting method should not require excessive stretching at a thin edge. Leave the necessary access around any feature that remains operational or needs servicing.

Select the material for the actual contact and surrounding conditions. Before installation, clean the internal cavity so trapped particles do not remain against the covered surface. Inspect the ends and transitions after removal, where handling can concentrate strain. If the sheath moves with the component in use, evaluate clearance throughout that movement so the rubber is not pinched against adjacent structure or pulled away from its retaining area.

Material options: Custom silicone compound; formulation and geometry developed together.
Hardness selection: Silicone options: 20–80 Shore A. The fitting method should not require excessive stretching at a thin edge.
Custom geometry: The internal profile should follow the covered part and establish where the sheath ends and how it remains in position.
Fit evaluation: A narrow section at the entrance may need to pass a wider feature during installation, and a shoulder farther inside can stop the sheath before it reaches its intended seat.
Color & OEM: Custom colors; OEM markings clear of the working interface.

Photos illustrate structure or material appearance only. The internal profile should follow the covered part and establish where the sheath ends and how it remains in position. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.

DISCUSS THIS COMPONENT

Describe the part you need.

Share the fit, operating conditions and quantity with our manufacturing team.
