Custom manufacturing example · Silicone medical nose mouth breathing mask
CUSTOM RUBBER & SILICONE MANUFACTURING

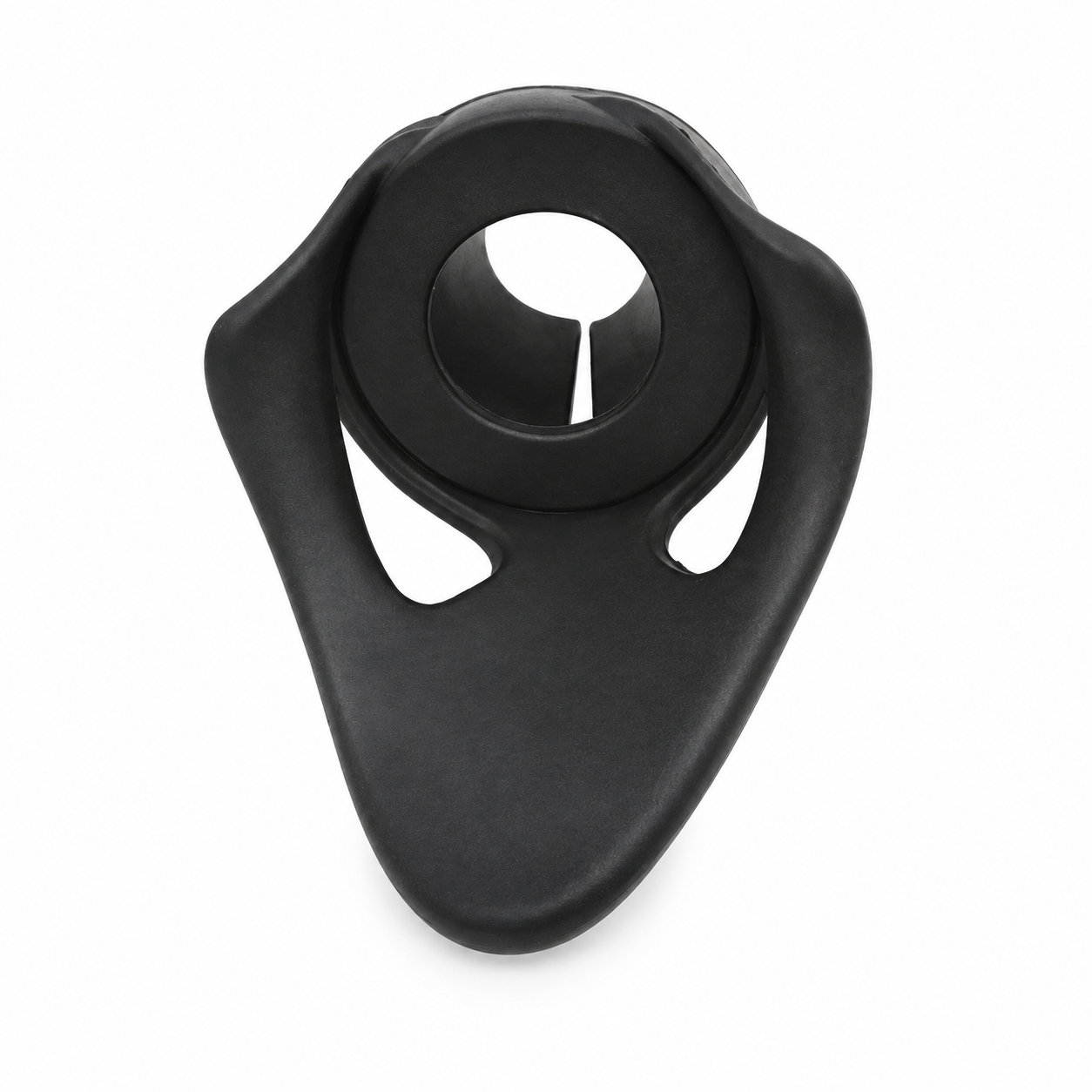

Silicone medical nose mouth breathing mask
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A silicone nose mouth breathing mask is developed as part of a complete breathing-interface design. The flexible perimeter and the hardware attached to the molded body need to work together, because connecting another component can change how the mask shape rests in its intended position.
ETOL offers custom dimensions and color. Establish the frame, connectors and retention features before finalizing the silicone geometry. Keep rigid parts clear of the areas intended to flex, and provide a controlled seat for each connection so assembly force does not roll the edge inward.
Inspect the molded component after all intended hardware is attached. Look for a crease or localized stretch that was not present in the loose part. The finished device should be evaluated for its intended use with the selected material and complete accessory arrangement. Handle the contact surfaces according to the device's cleanliness requirements and protect them from sharp tools. Cleaning, processing and replacement should follow the finished product's specified method. A damaged contact edge should be replaced rather than corrected by trimming or permanently bending the silicone during assembly.
- Material options
- Custom silicone formulation and color for the specified shape and working environment.
- Hardness range
- 20–80 Shore A for silicone. Assess the grade against this fit requirement: Look for a crease or localized stretch that was not present in the loose part.
- Custom profile & fit
- Establish the frame, connectors and retention features before finalizing the silicone geometry.
- Assembly considerations
- Keep rigid parts clear of the areas intended to flex, and provide a controlled seat for each connection so assembly force does not roll the edge inward.
- Design check
- The finished device should be evaluated for its intended use with the selected material and complete accessory arrangement.
Photos illustrate structure or material only. Handle the contact surfaces according to the device's cleanliness requirements and protect them from sharp tools. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
