Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · silicone rubber hand grip elastic rubber handle
CUSTOM RUBBER & SILICONE MANUFACTURING

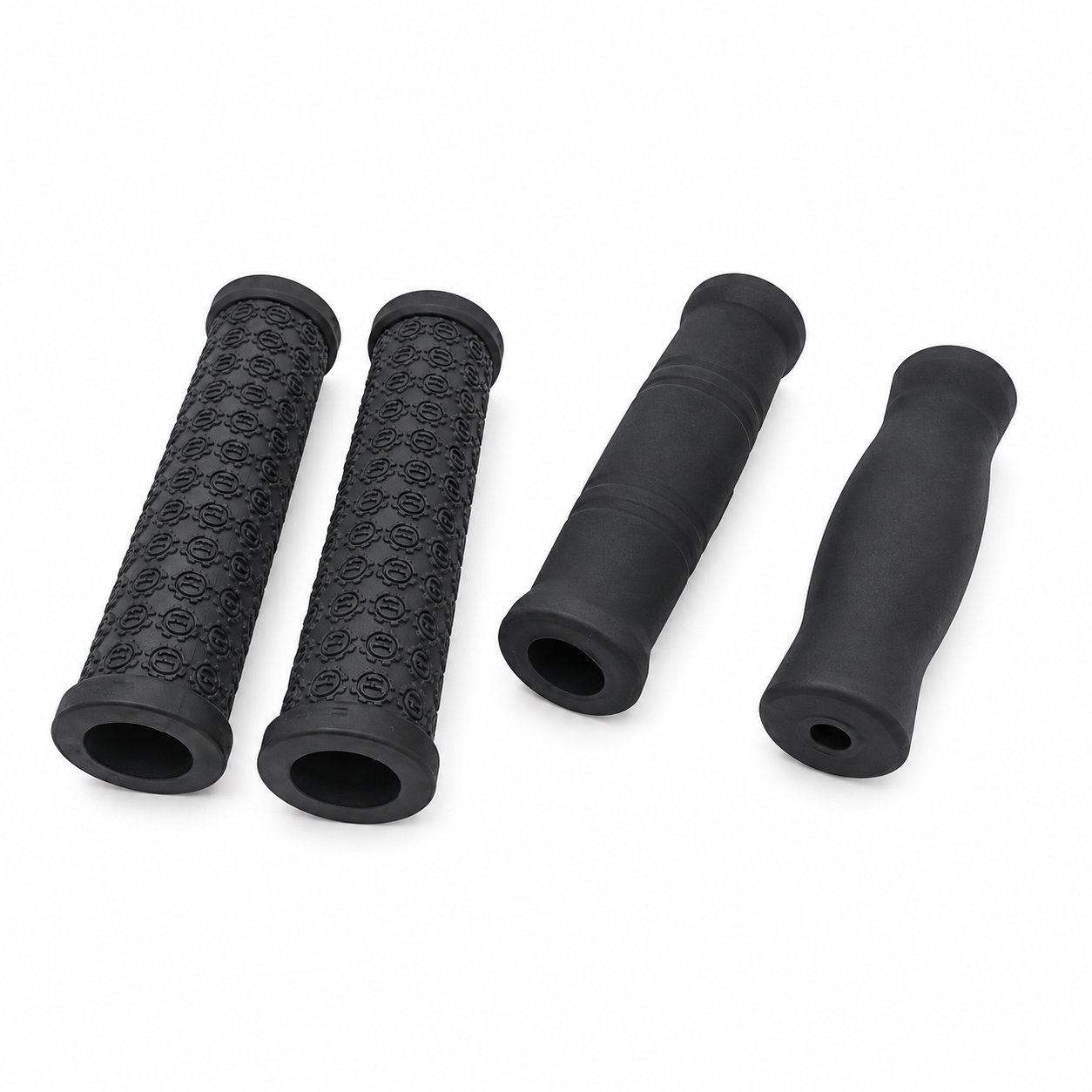

silicone rubber hand grip elastic rubber handle
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A silicone rubber hand grip needs its internal profile to retain the handle while its outer contour suits the intended grasp. Elasticity can assist fitting, but it should not be used to stretch an approximate sleeve over an unsuitable shape. The receiving length and any taper are part of the required geometry.
Check how the finished grip changes the hand position and surrounding clearance. Added thickness can affect access to nearby controls or the space between the handle and another component. The selected formulation should suit the actual contact and cleaning conditions of the finished item.
Evaluate retention under normal pulling and twisting forces before regular use. The rubber sleeve does not establish the strength of the underlying handle. During care, remove residue from the grasping surface and inspect the opening for splitting or movement. Replace a grip that rotates or creeps independently rather than adding layers that enlarge the handhold without restoring the intended fit between the sleeve and handle.
- Material options
- Custom silicone or rubber formulation, with dimensions and color adapted to the mating component.
- Hardness range
- Silicone: 20–80 Shore A; rubber: 30–90 Shore A. Assess the grade against this fit requirement: Elasticity can assist fitting, but it should not be used to stretch an approximate sleeve over an unsuitable shape.
- Custom profile & fit
- The receiving length and any taper are part of the required geometry.
- Assembly considerations
- Check how the finished grip changes the hand position and surrounding clearance.
- Design check
- Evaluate retention under normal pulling and twisting forces before regular use.
Photos illustrate structure or material only. Elasticity can assist fitting, but it should not be used to stretch an approximate sleeve over an unsuitable shape. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
