Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Custom flexible extruded rubber seal/gasket/sealing ring
CUSTOM RUBBER & SILICONE MANUFACTURING

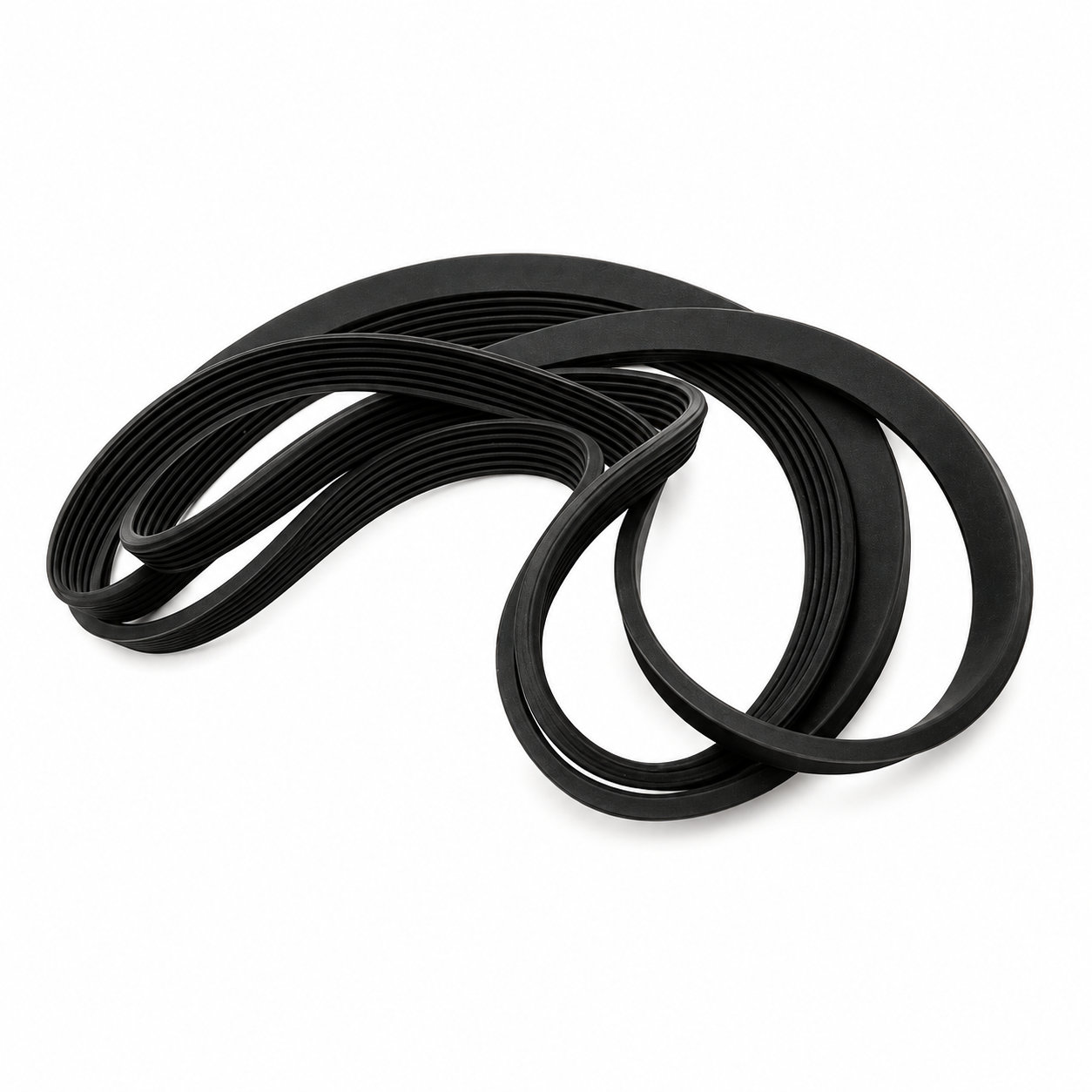

Custom flexible extruded rubber seal/gasket/sealing ring
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
An extruded rubber seal needs a section that follows the channel or mating faces supporting it. This custom gasket and ring offering allows material, outline, and dimensions to be developed for the intended interface. The production profile should work with the assembly rather than relying on flexibility to absorb a substantial mismatch.
Identify the surfaces that locate the seal and those that apply compression. A narrow channel may control the sidewalls, while an open face requires a different arrangement to keep the rubber positioned. Corners, transitions, and the finished perimeter should be included in the dimensional definition.
Choose the compound for the medium, temperature, and cleaning exposure. Fit the seal without stretching its length to reach the end of the seat, and check that it lies naturally through any change in direction. Close the mating parts without dragging the profile sideways. During maintenance, inspect compressed regions and transitions for cuts or lasting distortion. Replace the component with the required finished geometry, preserving the intended contact path and supported section.
- Material options
- Rubber. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. Fit the seal without stretching its length to reach the end of the seat, and check that it lies naturally through any change in direction.
- Custom dimensions
- A narrow channel may control the sidewalls, while an open face requires a different arrangement to keep the rubber positioned.
- Fit & assembly
- The production profile should work with the assembly rather than relying on flexibility to absorb a substantial mismatch.
- Use & inspection
- During maintenance, inspect compressed regions and transitions for cuts or lasting distortion.
Photos illustrate structure or material only. An extruded rubber seal needs a section that follows the channel or mating faces supporting it. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
