Custom manufacturing example · Custom made non-standard silicone adhesive backed rubber pad
CUSTOM RUBBER & SILICONE MANUFACTURING

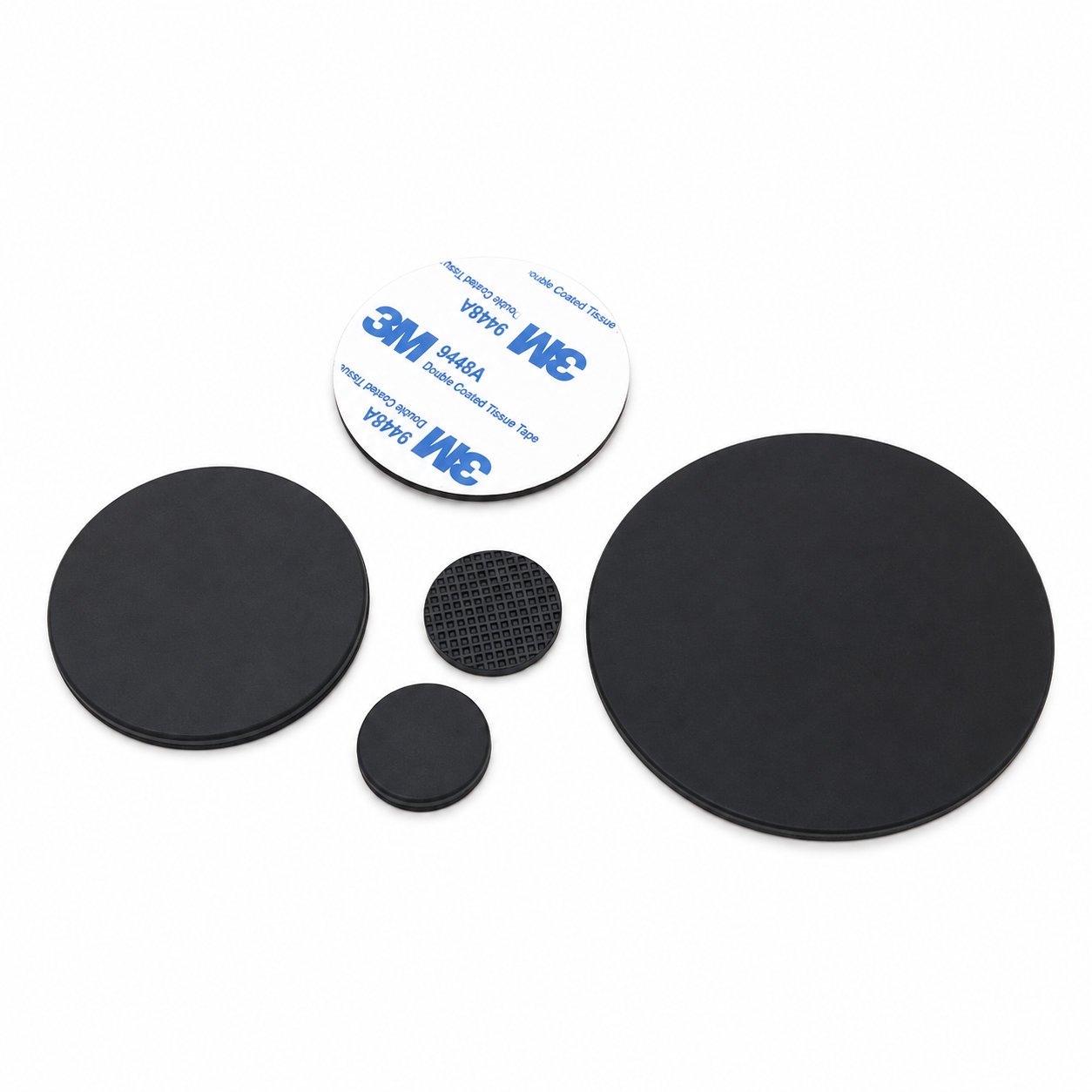

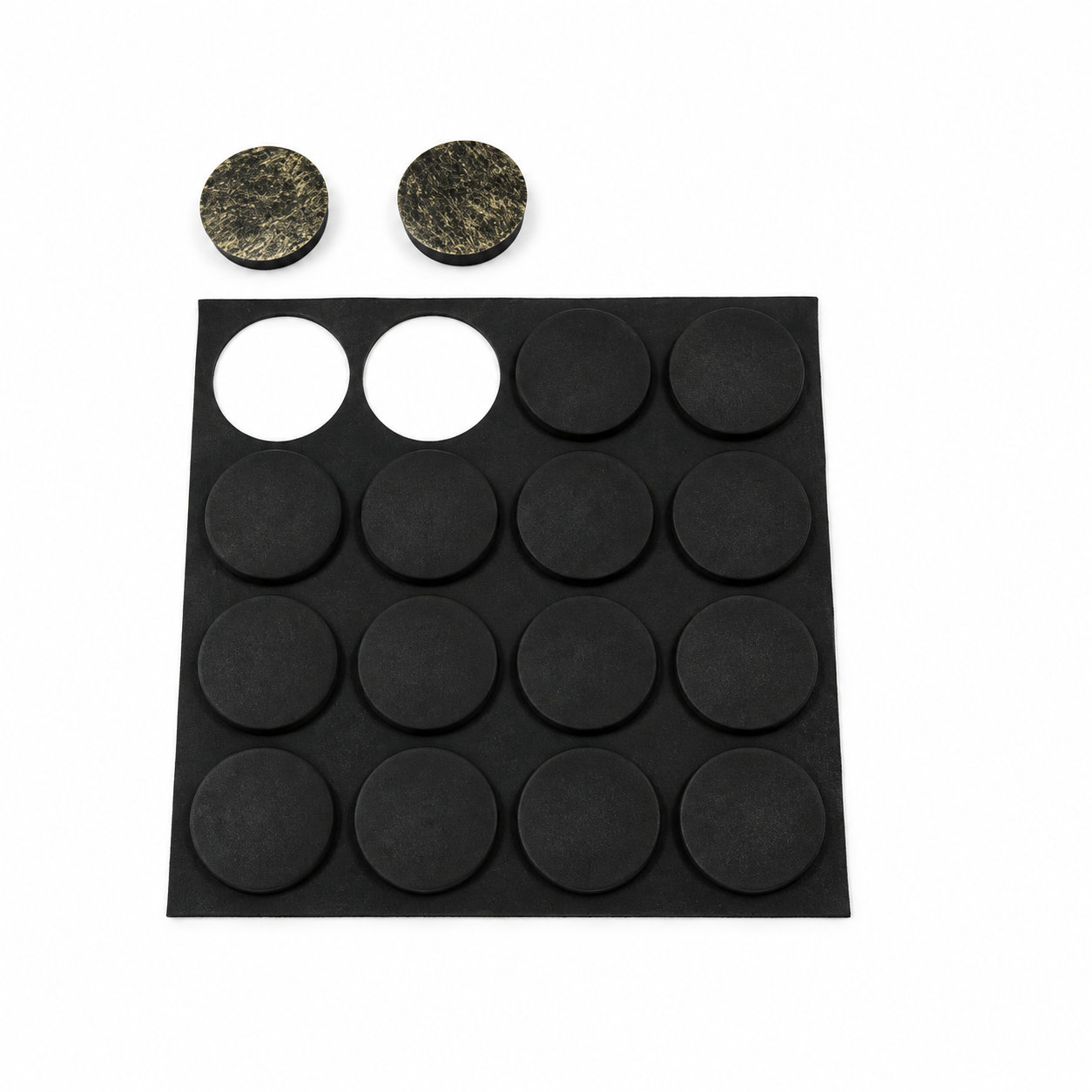

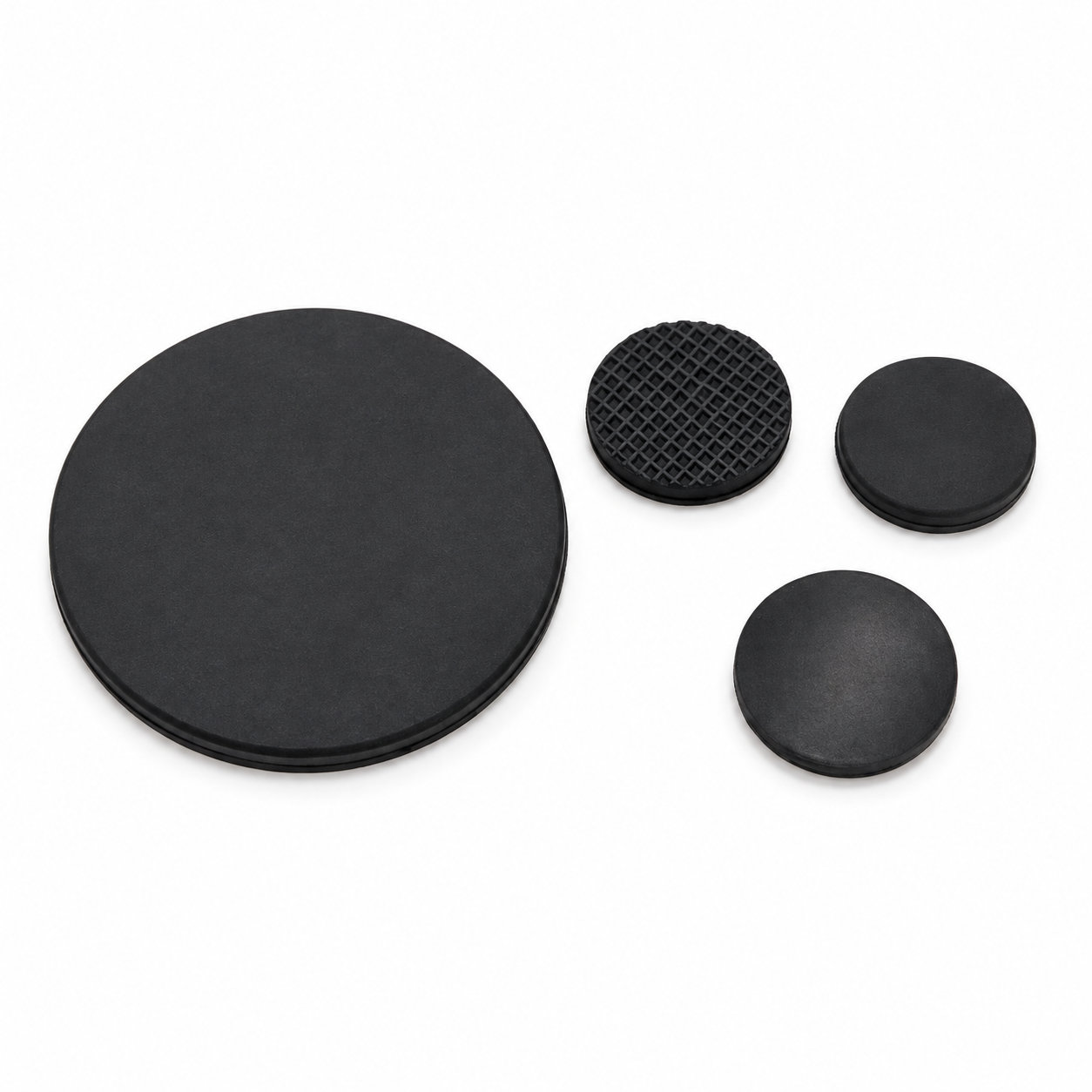

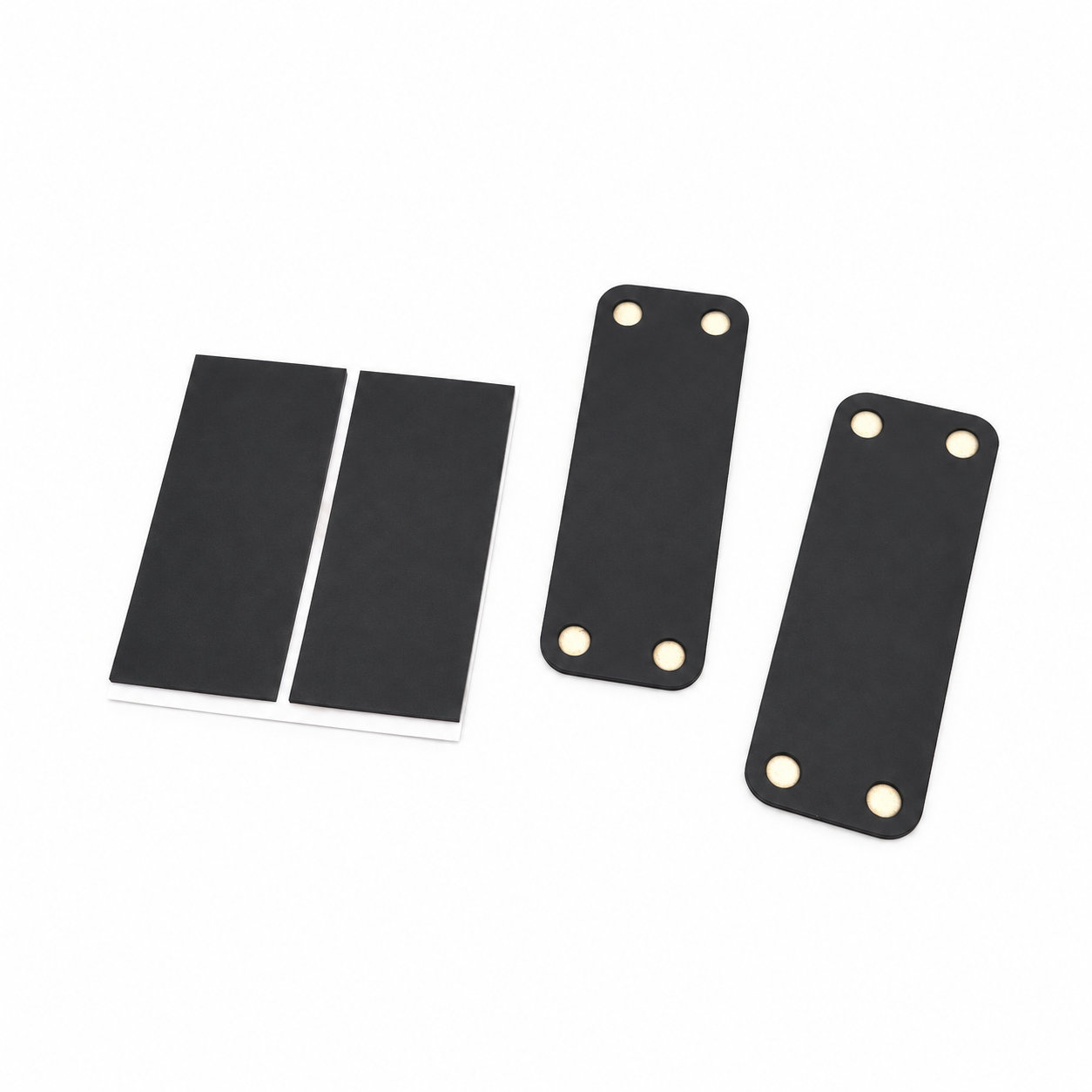

Custom made non-standard silicone adhesive backed rubber pad
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A custom adhesive backed rubber pad follows a mounting area that may not suit a standard round or square piece. Its silicone outline and thickness can be developed around the product's contact region, nearby features, and available clearance. The bonded area should be defined on the actual mounting surface rather than its overall visual footprint.
Check for recesses, ribs, or texture beneath the pad. These features can leave parts of the adhesive unsupported even when the rubber covers them. Select the adhesive for the base material and service conditions, then prepare the surface and apply the pad according to that adhesive's requirements. Accurate placement helps keep edges away from locations where they can be caught or lifted.
Evaluate the finished assembly for the intended contact role. A pad used as a support, spacer, or cushioning layer needs dimensions appropriate to that role. Keep the working face clean and inspect the bond if the pad shifts. Replacement should restore the original mounting condition with the correct outline, thickness, and adhesive configuration rather than cover unsuitable residue with another pad.
- Material options
- Silicone. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Silicone: 20–80 Shore A. A pad used as a support, spacer, or cushioning layer needs dimensions appropriate to that role.
- Custom dimensions
- A custom adhesive backed rubber pad follows a mounting area that may not suit a standard round or square piece.
- Fit & assembly
- Check for recesses, ribs, or texture beneath the pad.
- Use & inspection
- Replacement should restore the original mounting condition with the correct outline, thickness, and adhesive configuration rather than cover unsuitable residue with another pad.
Photos illustrate structure or material only. Accurate placement helps keep edges away from locations where they can be caught or lifted. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
