Custom manufacturing example · Adhesive Backing Pad Self Sticky Silicone Rubber Pad
CUSTOM RUBBER & SILICONE MANUFACTURING

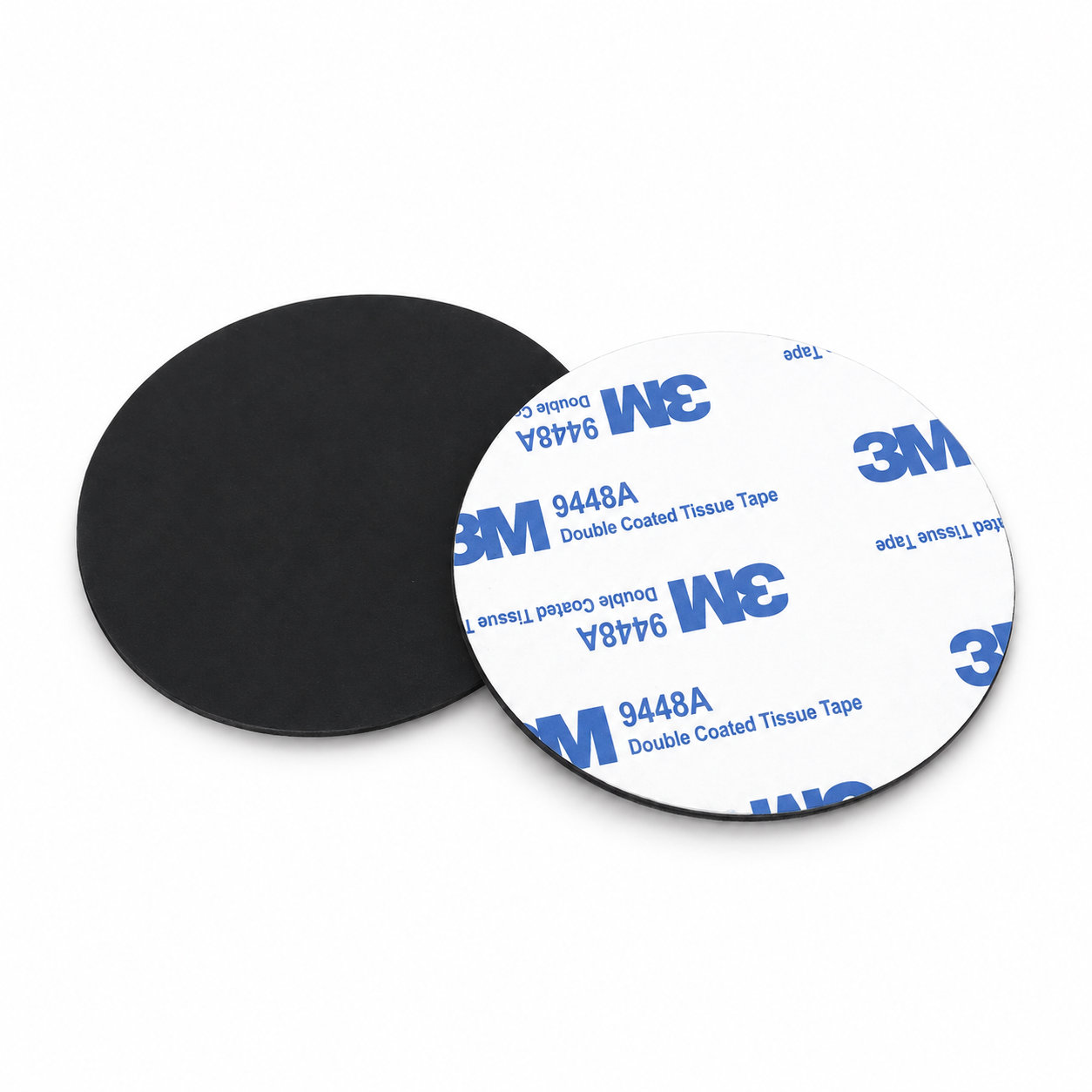

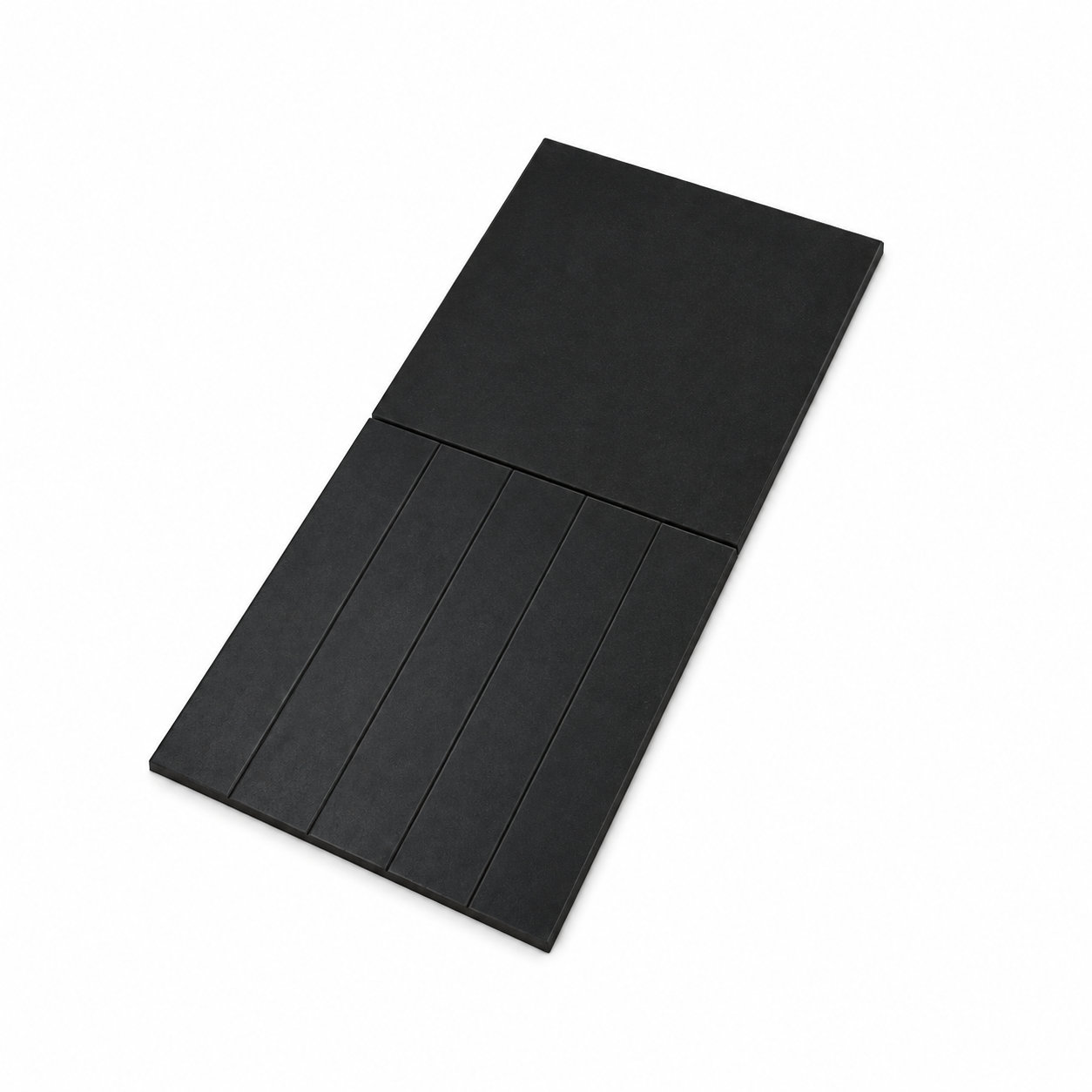

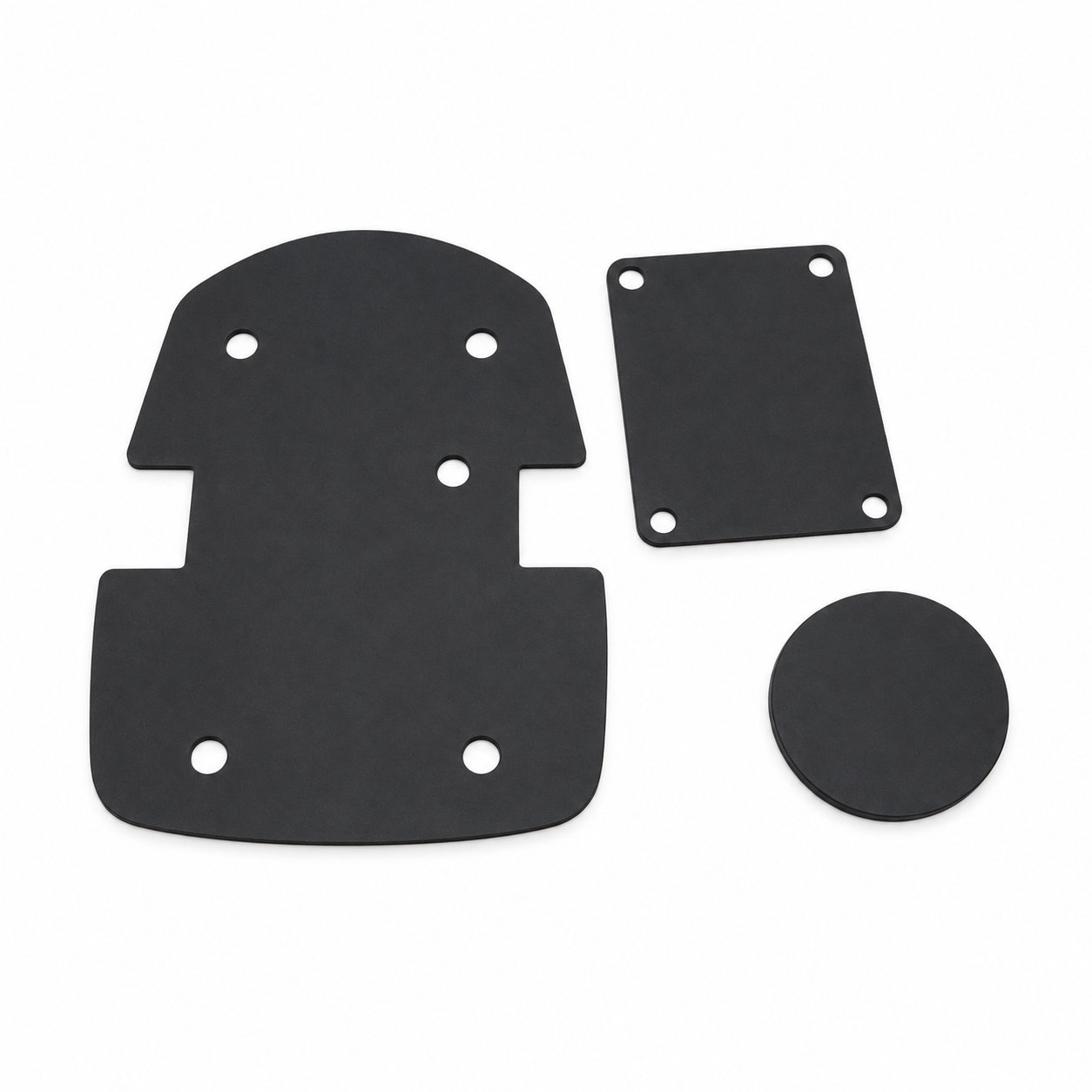

Adhesive Backing Pad Self Sticky Silicone Rubber Pad
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
An Adhesive Backing Pad attaches a silicone rubber contact layer to a prepared surface. For a broad pad, alignment before contact helps avoid repeated lifting that can stretch the rubber or contaminate portions of the exposed adhesive.
Establish the required footprint and any neighboring features that must remain clear. The substrate should support the adhesive face rather than leaving it to bridge a recess or unsupported opening.
Prepare the mounting area and position the pad according to the selected backing's application requirements. Keep fingers and loose particles away from the bond surface. After allowing the required bond development, check the loaded contact region for uneven compression or an edge beginning to peel. During maintenance, inspect around the perimeter, especially where cleaning tools or handled objects may catch it. Replace a lifted pad on a properly cleaned surface instead of repeatedly reseating a dirty section. If alignment is consistently difficult, revise the application access or outline before repeating the same fit.
- Material options
- Custom silicone or rubber formulation, with dimensions and color adapted to the mating component.
- Hardness range
- Silicone: 20–80 Shore A; rubber: 30–90 Shore A. Assess the grade against this fit requirement: After allowing the required bond development, check the loaded contact region for uneven compression or an edge beginning to peel.
- Custom profile & fit
- If alignment is consistently difficult, revise the application access or outline before repeating the same fit.
- Assembly considerations
- For a broad pad, alignment before contact helps avoid repeated lifting that can stretch the rubber or contaminate portions of the exposed adhesive.
- Design check
- Prepare the mounting area and position the pad according to the selected backing's application requirements.
Photos illustrate structure or material only. The substrate should support the adhesive face rather than leaving it to bridge a recess or unsupported opening. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
