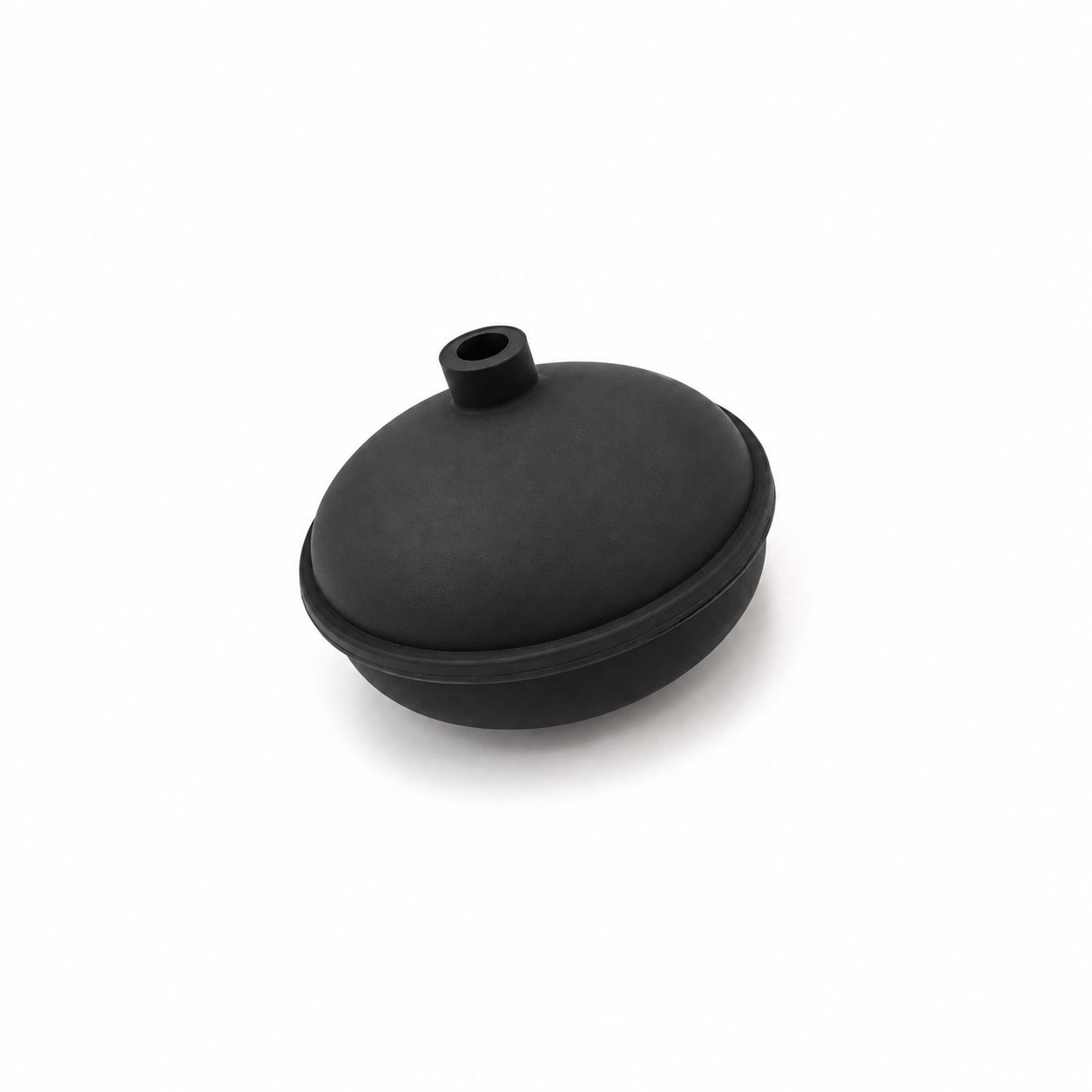

Custom made hand air medical silicone rubber bulb pump

A silicone rubber bulb pump provides a squeezable body for a hand-operated air arrangement. The bulb, its connecting features and any valves in the finished system need to work together so air follows the intended path as the body is compressed and released. Custom dimensions and material can be selected around that system.

Consider the hand movement needed to compress the bulb and the room available around it. The body should return as intended without being restricted by a nearby housing or a tube pulling at its connection. Connection fit should be assessed with the actual mating parts, including the way they are retained during repeated squeezing.

Evaluate the completed air system for the required response rather than assigning a delivery volume or pressure from the bulb's outer size. If it is intended as a component in medical equipment, the finished device application, material contact and care requirements must be established for that use. The product name alone does not establish a specific clinical function.

Keep the exterior and connections clean using the method appropriate to the evaluated construction. Inspect for splits near connection necks and changes in the body's return after handling. A loose tube connection or deteriorated bulb should be corrected before continued use. Preserve the chosen wall geometry, compound and connecting arrangement when replacing the part so the system retains its evaluated operation.

Material options

Custom silicone or rubber formulation, with dimensions and color adapted to the mating component.

Hardness range

Silicone: 20–80 Shore A; rubber: 30–90 Shore A. Assess the grade against this fit requirement: Consider the hand movement needed to compress the bulb and the room available around it.

Custom profile & fit

Evaluate the completed air system for the required response rather than assigning a delivery volume or pressure from the bulb's outer size.

Assembly considerations

Connection fit should be assessed with the actual mating parts, including the way they are retained during repeated squeezing.

Design check

Keep the exterior and connections clean using the method appropriate to the evaluated construction.

Photos illustrate structure or material only. Preserve the chosen wall geometry, compound and connecting arrangement when replacing the part so the system retains its evaluated operation. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
