Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Custom made silicone rubber medical suction bulb
CUSTOM RUBBER & SILICONE MANUFACTURING

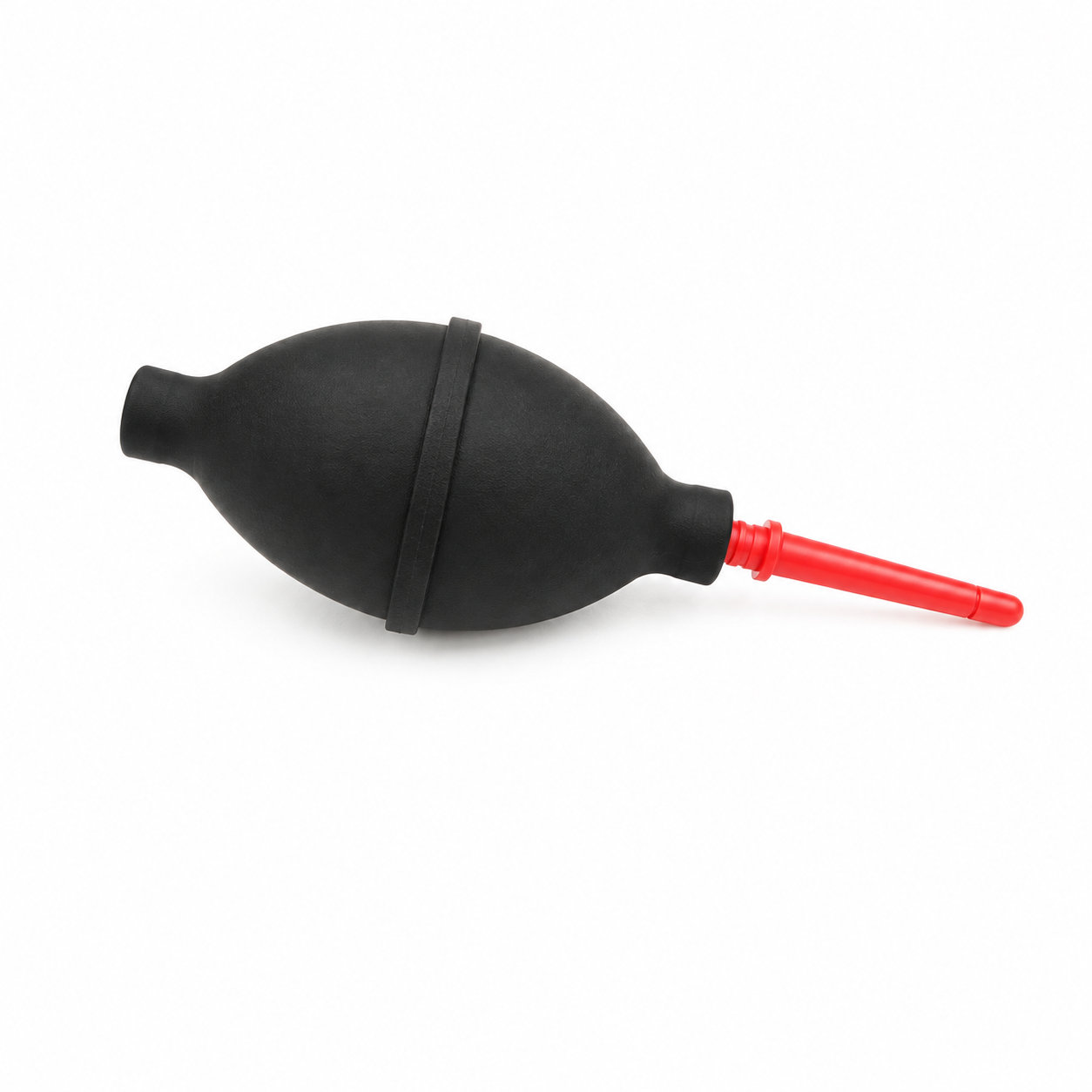

Custom made silicone rubber medical suction bulb
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A custom silicone rubber medical suction bulb provides a flexible chamber for a defined suction arrangement. Its body, neck, and connection profile should suit the equipment in which it is used. The molded component needs to be assessed with the complete pathway and the actual contact conditions of that application.
Establish how the bulb is compressed, released, connected, and cleaned or processed. The body should have the intended room to deform, while the neck should remain aligned without being pinched by the fitting. The relevant valves, tips, or tubing belong to the system assessment because they influence how the bulb's movement produces the intended action.
Select the silicone formulation for the actual medical contact and processing sequence. Keep the internal surfaces protected from contamination during assembly and avoid using a sharp object to clear the opening. Inspect the neck transition and body during permitted care. The bulb's external dimensions alone do not establish suction level or clinical performance. Replacement should preserve the complete interface and be assessed within the device configuration for which the component is intended.
- Material options
- Silicone. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Silicone: 20–80 Shore A. The relevant valves, tips, or tubing belong to the system assessment because they influence how the bulb's movement produces the intended action.
- Custom dimensions
- Keep the internal surfaces protected from contamination during assembly and avoid using a sharp object to clear the opening.
- Fit & assembly
- The body should have the intended room to deform, while the neck should remain aligned without being pinched by the fitting.
- Use & inspection
- Replacement should preserve the complete interface and be assessed within the device configuration for which the component is intended.

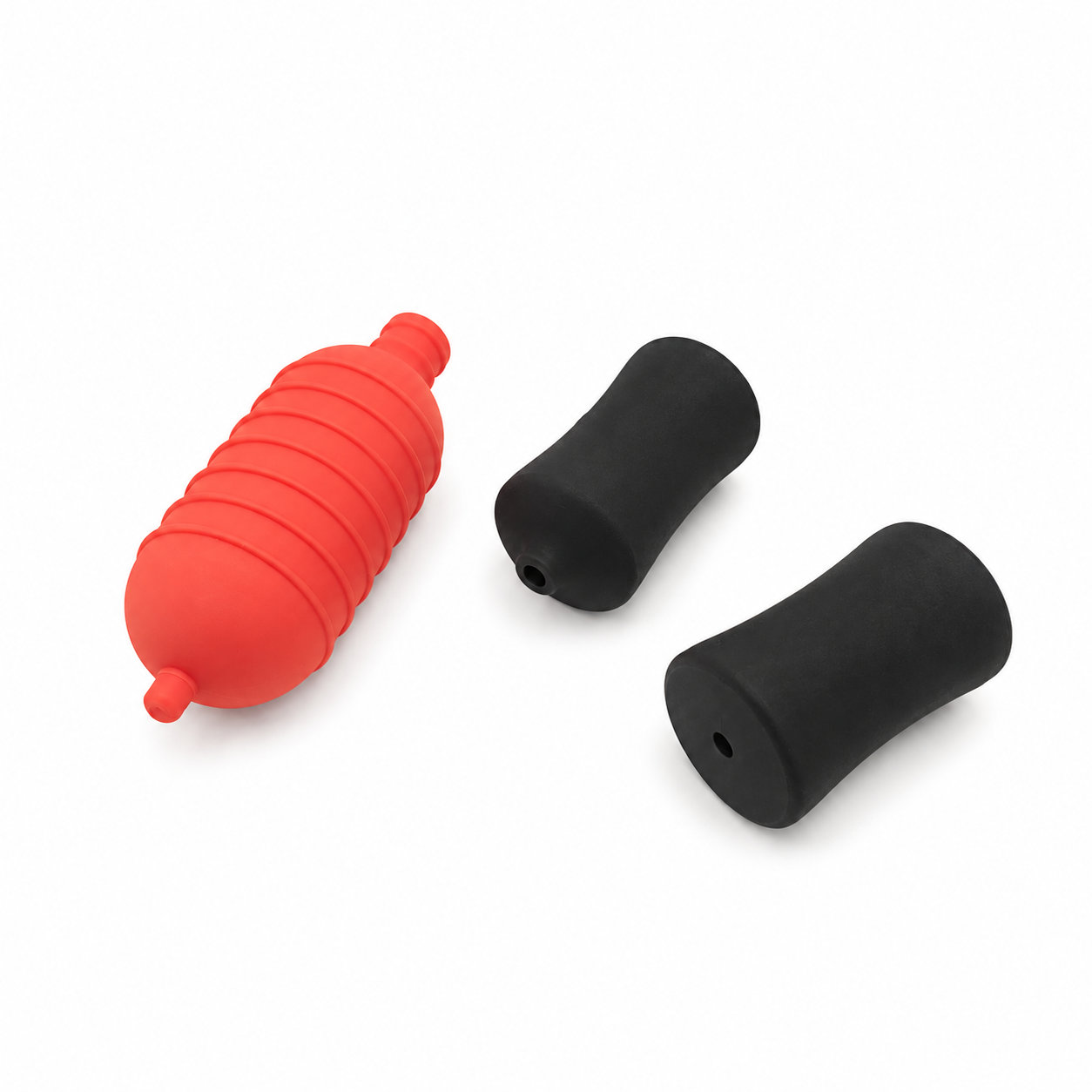

Photos illustrate structure or material only. A custom silicone rubber medical suction bulb provides a flexible chamber for a defined suction arrangement. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
