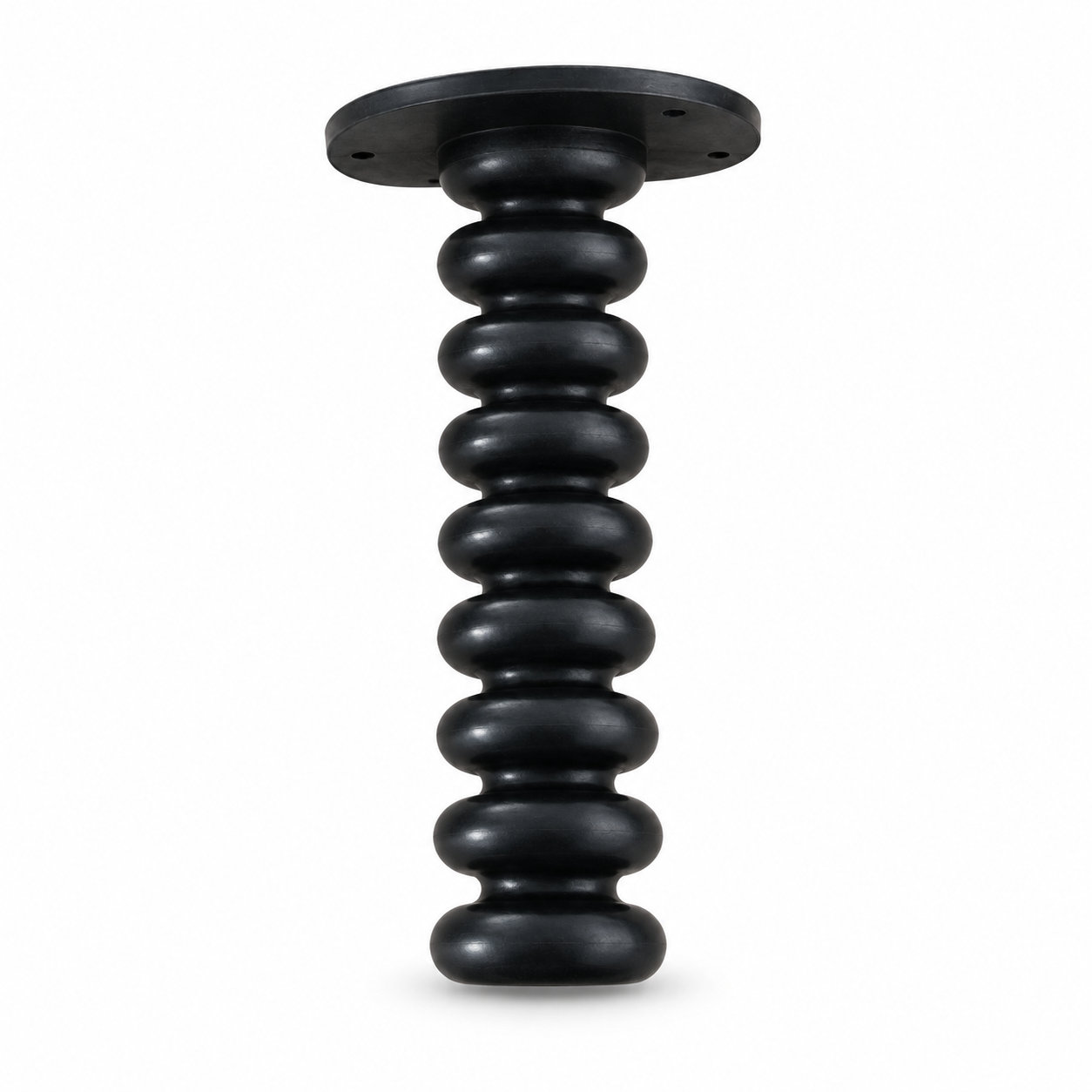

Custom made spring waterproof large silicone rubber bellows

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

Large silicone rubber bellows for a spring related assembly should be developed around the spring's complete working envelope. The cover needs space for its own folds as well as clearance to the moving components inside. A bellows that fits around the spring at rest may contact it during compression or lateral movement.

Custom dimensions, material, hardness and color can match the installation. Define the smallest and largest distances between the end seats and any change in alignment. The bellows should remain a flexible cover rather than act as an unintended travel stop.

Evaluate movement slowly through the intended range before representative operation. Watch for folds entering gaps between nearby components or rubbing against the spring. End retention should remain stable as the central section changes shape. Any waterproofing requirement needs assessment of the complete cover and both attachment interfaces under the expected exposure.

During maintenance, inspect folds for repeated abrasion marks and check the end seats for lifting. If a tear recurs in one area, investigate the spring and cover clearances at the corresponding movement position. Adding length alone may worsen crowding when the assembly is compressed.

Material options: Custom silicone compound; formulation and geometry developed together.
Hardness selection: Silicone options: 20–80 Shore A. A bellows that fits around the spring at rest may contact it during compression or lateral movement.
Custom geometry: Custom dimensions, material, hardness and color can match the installation.
Fit evaluation: Evaluate movement slowly through the intended range before representative operation.
Color & OEM: Custom colors; identification clear of folds and end connections.

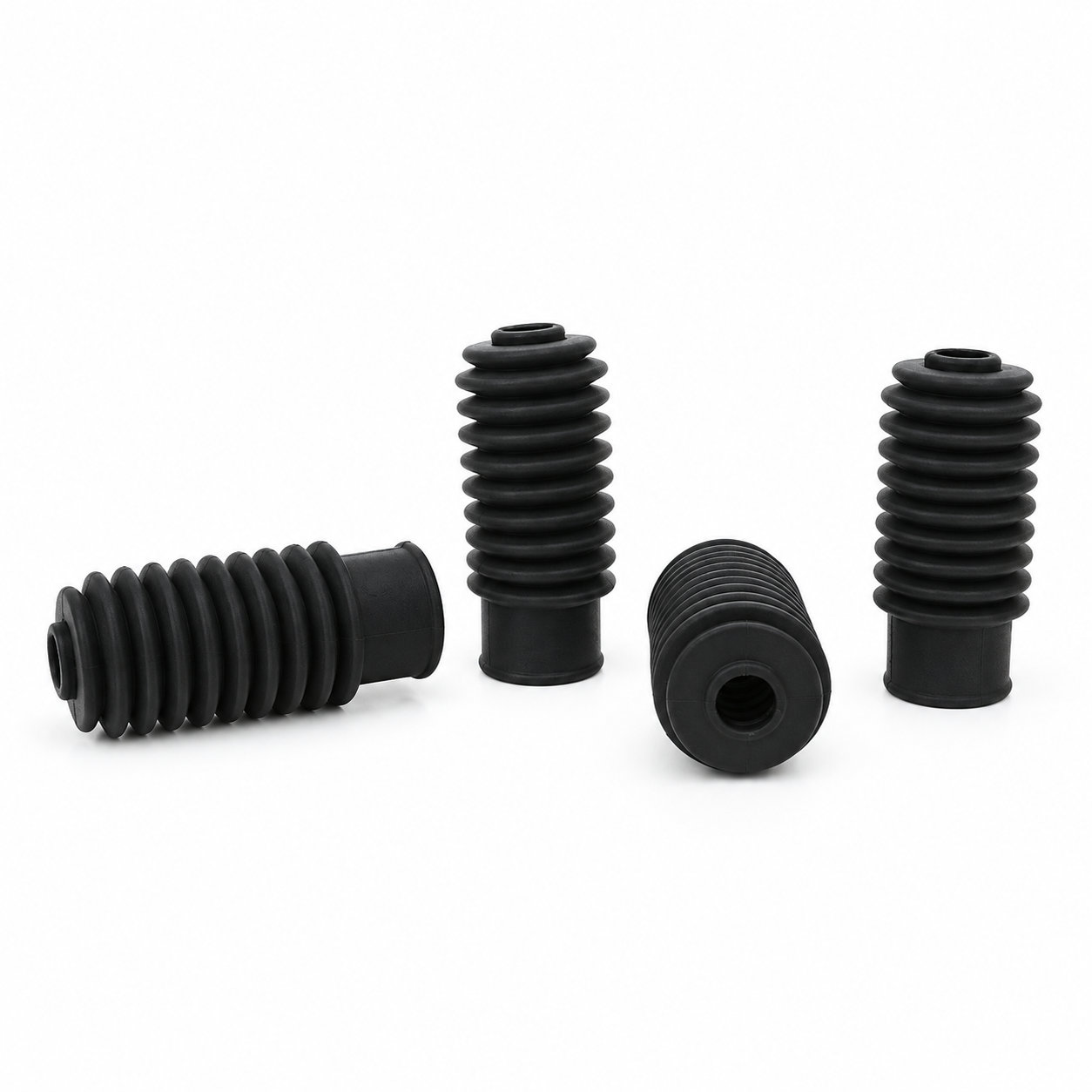

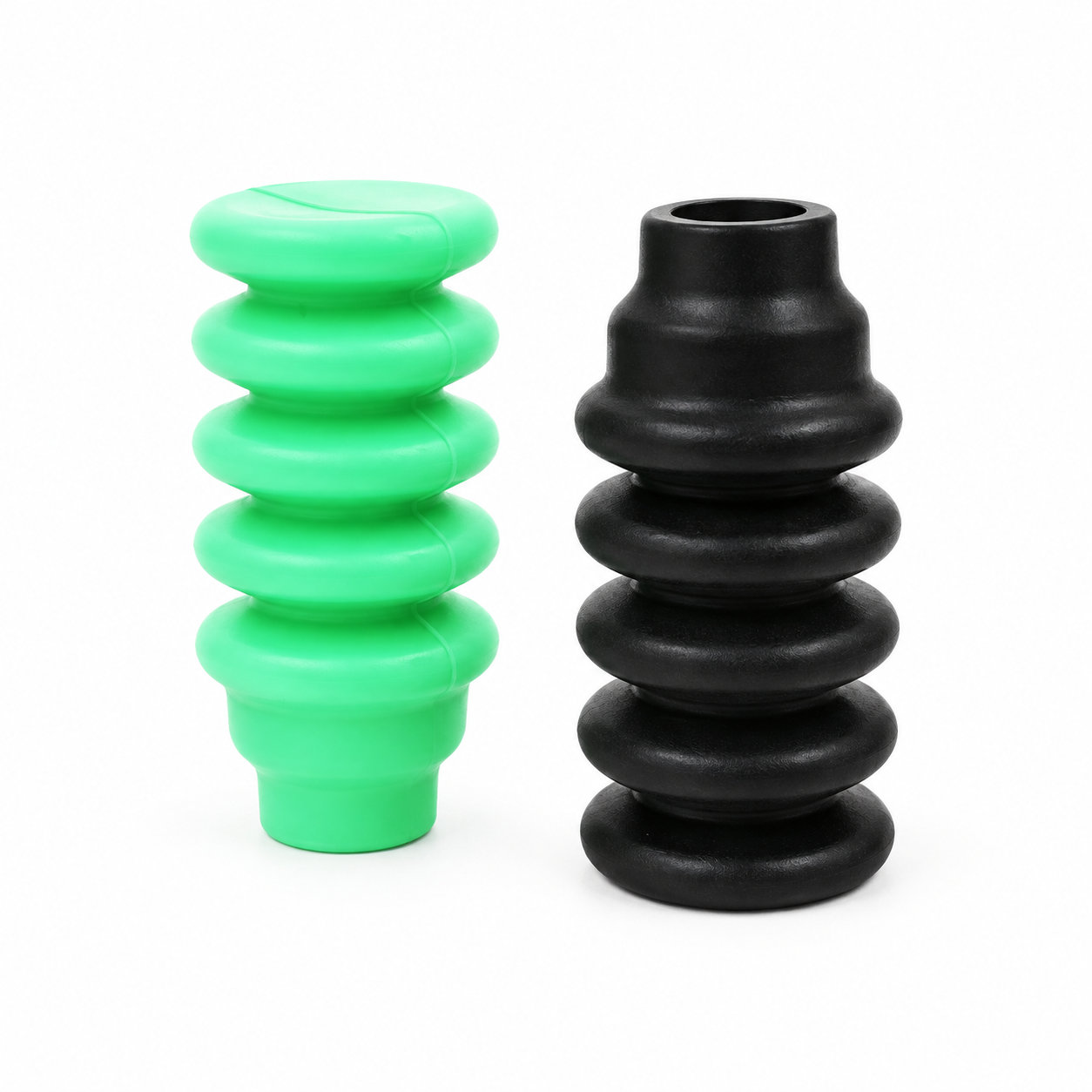

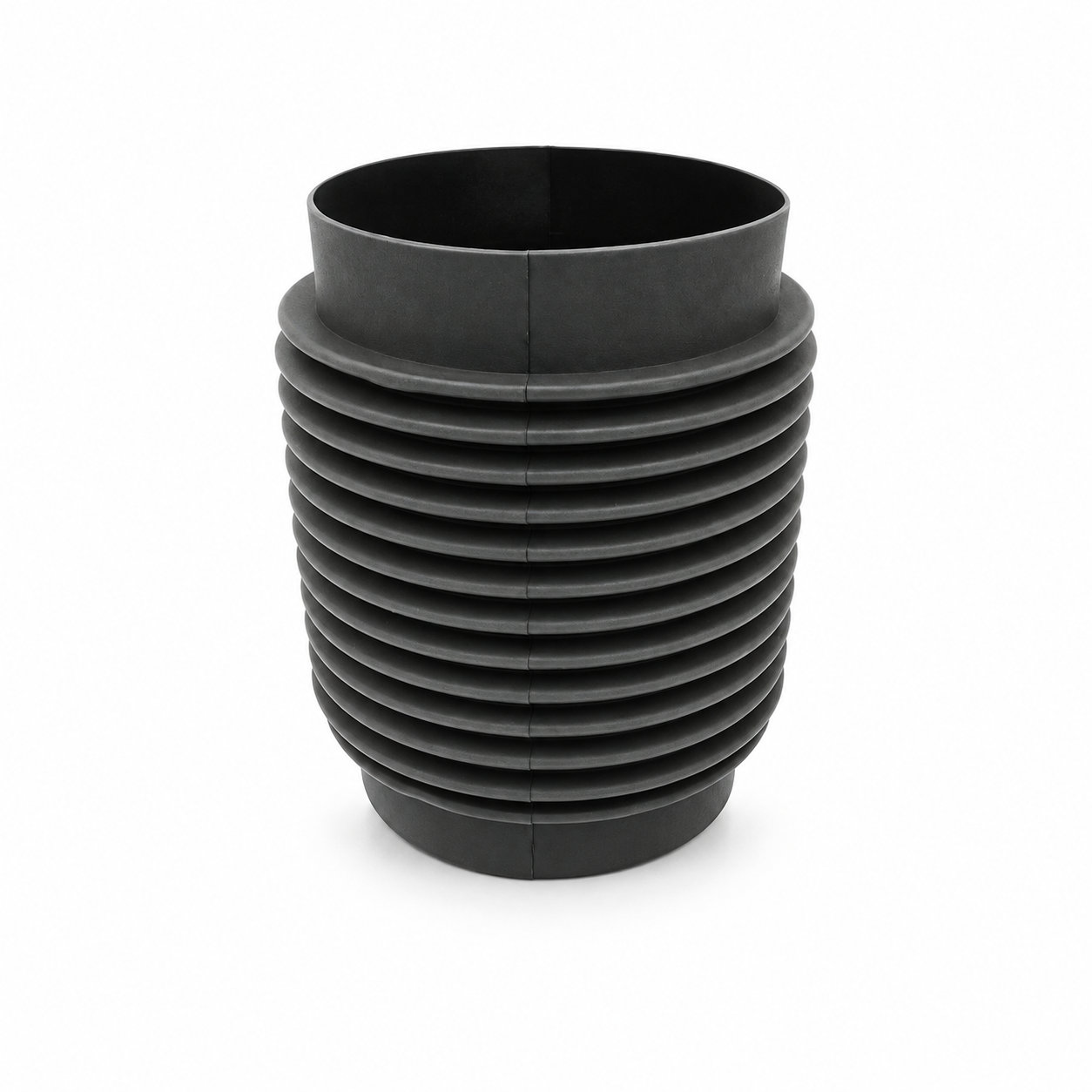

Photos illustrate structure or material appearance only. A bellows that fits around the spring at rest may contact it during compression or lateral movement. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
