Custom manufacturing example · High quality conductive rubber silicone buttons/keypads
CUSTOM RUBBER & SILICONE MANUFACTURING
High quality conductive rubber silicone buttons/keypads
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
Custom conductive rubber silicone buttons create a physical control interface with conductive contact areas suited to the underlying circuit. They can be used in tailored keypads for remote controls, toys, automotive controls, electronic equipment, or industrial machinery. The molded shape and contact arrangement should be selected for the specific control assembly.
The contact needs to reach its intended area as the button moves. Support beneath the keypad, clearance around the visible key, and alignment within the housing all influence that path. A key that tilts because the rubber sheet shifts may behave differently from one that is supported in the intended position. Assess the assembled control using the actual circuit and enclosure.
Custom color and button geometry can help organize different functions, but their positions must remain coordinated with the contact layout. Include presses near accessible edges and successive presses on adjacent controls during evaluation. Handle the underside carefully to avoid transferring residue to the conductive areas. On the user side, clean accumulated dirt around the keys gently so that the moving rubber remains free to return after release.
- Material options
- Custom silicone or rubber formulation, with dimensions and color adapted to the mating component.
- Hardness range
- Silicone: 20–80 Shore A; rubber: 30–90 Shore A. Assess the grade against this fit requirement: Include presses near accessible edges and successive presses on adjacent controls during evaluation.
- Custom profile & fit
- The molded shape and contact arrangement should be selected for the specific control assembly.
- Assembly considerations
- Support beneath the keypad, clearance around the visible key, and alignment within the housing all influence that path.
- Design check
- Assess the assembled control using the actual circuit and enclosure.

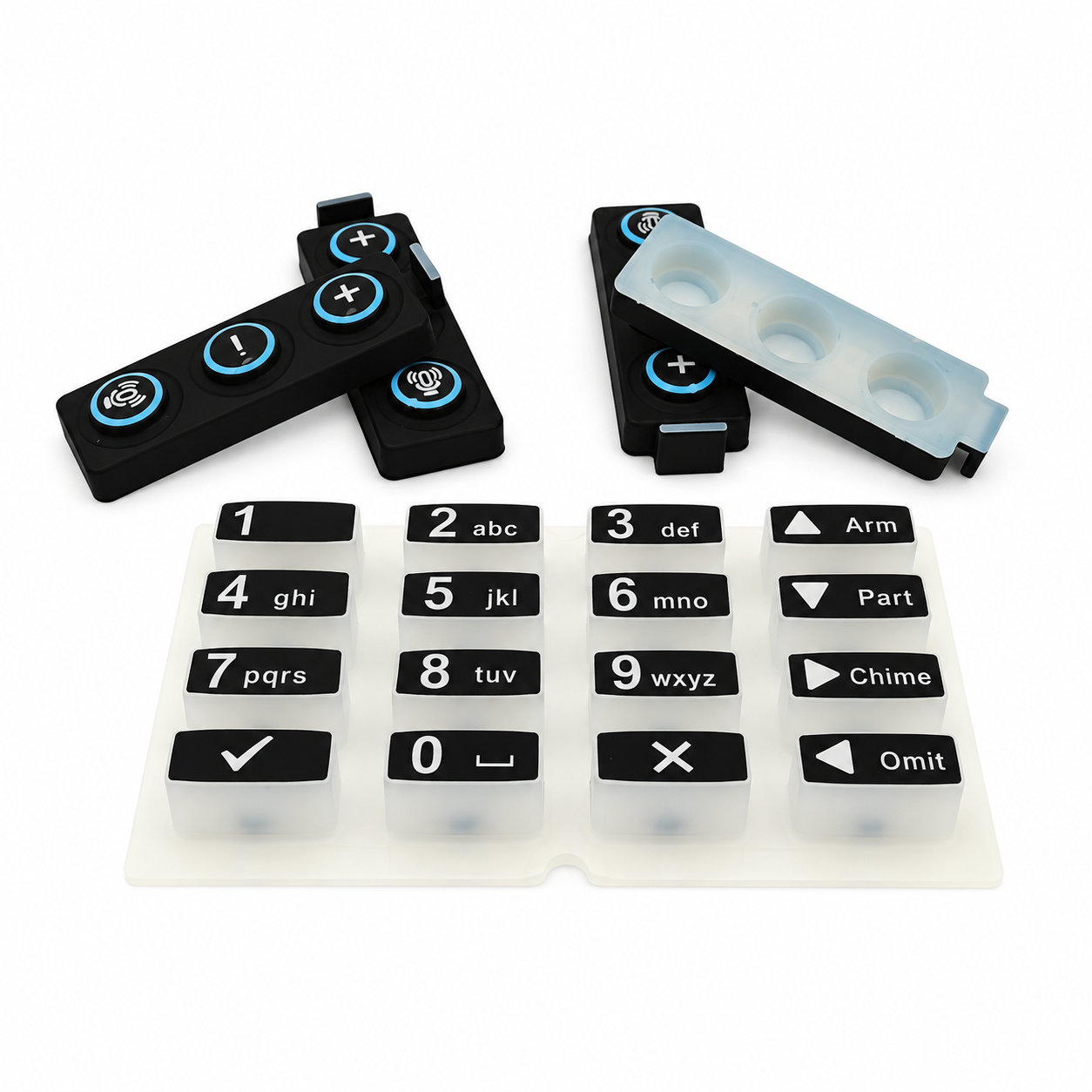

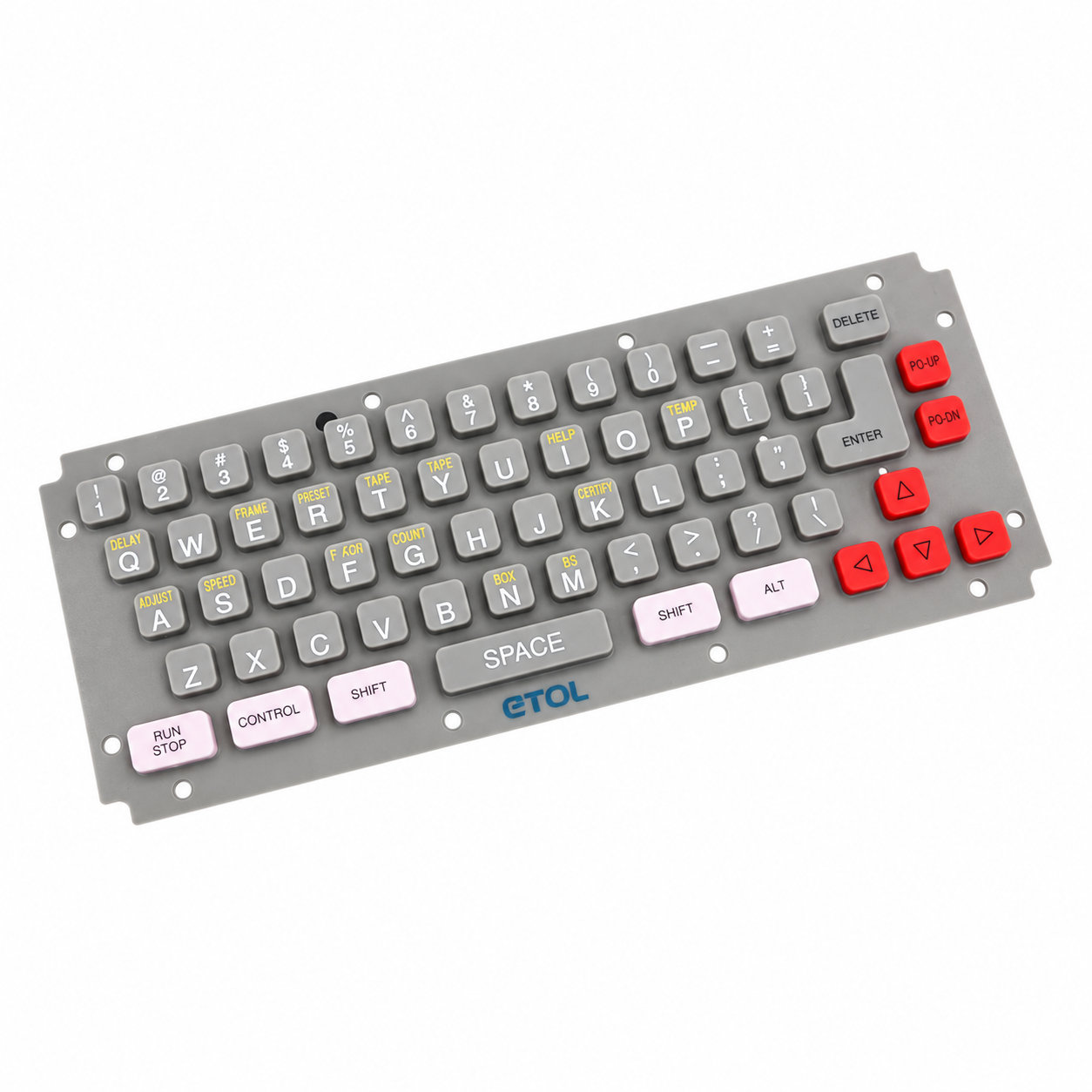

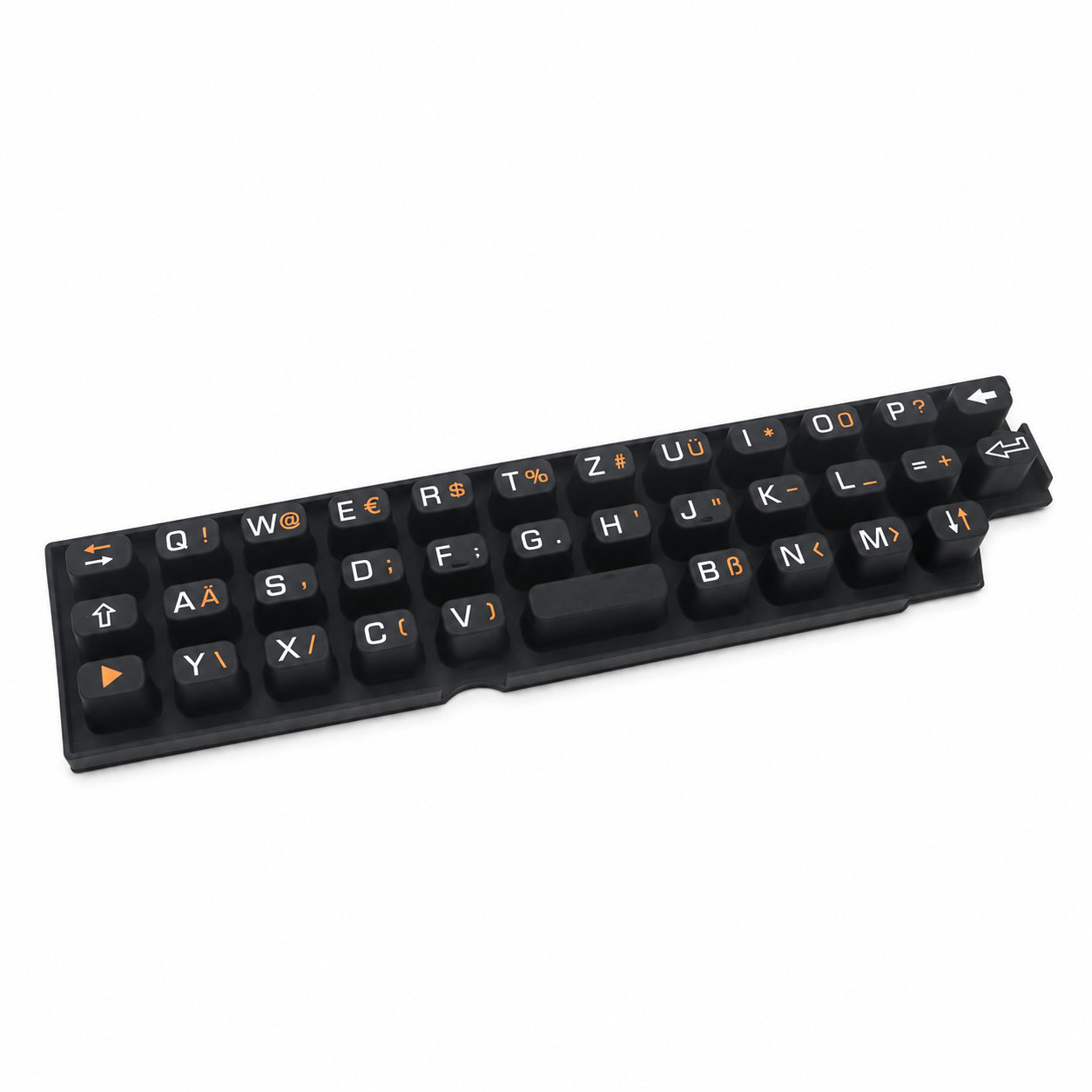

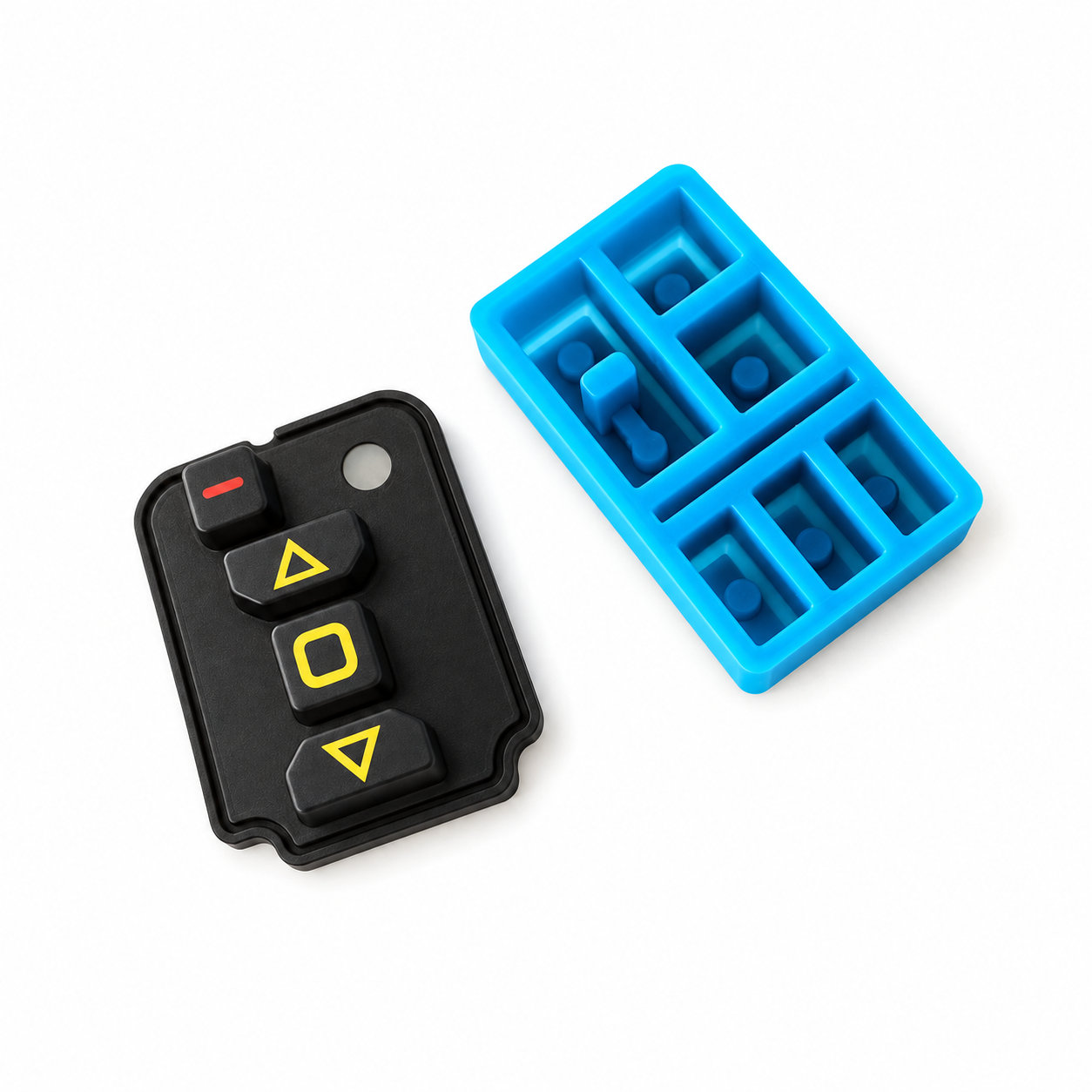

Photos illustrate structure or material only. The molded shape and contact arrangement should be selected for the specific control assembly. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
