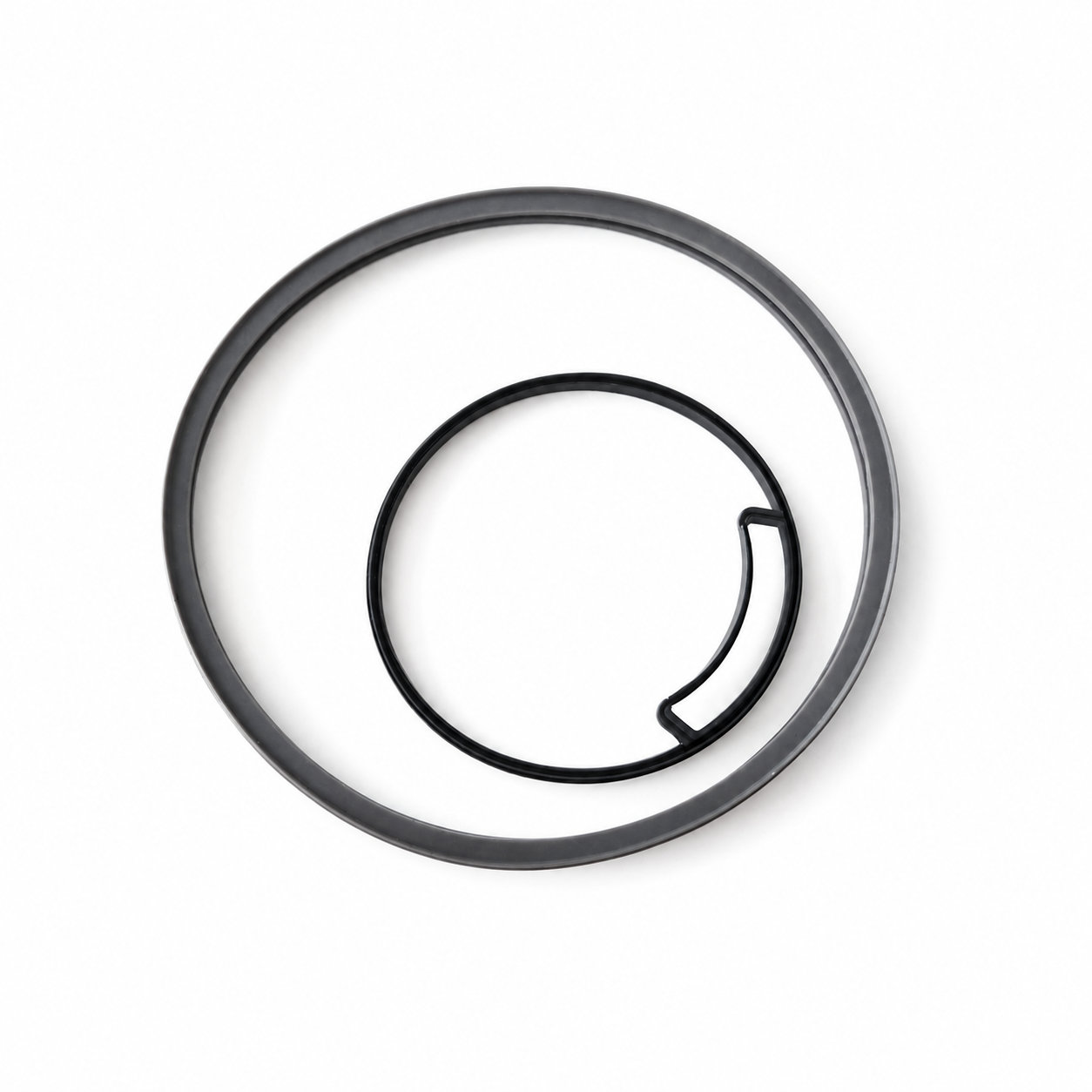

High quality molded special-shape rubber gasket/rubber washer

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

A special-shape rubber gasket can include branches, narrow bridges, and differently sized openings within one molded outline. Those details need a clear orientation in the assembly. A nearly symmetrical shape may appear to fit when reversed while placing one small opening or bridge in the wrong location.

Choose a reliable locating feature and use it to establish the starting position. Check the farthest feature from that point before placing the mating cover. This helps reveal a reversed or rotated part without pulling the flexible outline across the seat to make it appear aligned.

Support delicate extensions when moving the gasket from storage to the assembly. Let each section settle naturally rather than leaving its weight hanging from a thin bridge. The material and working thickness must suit the actual joint conditions. If the gasket is removed for service, keep its orientation identifiable and inspect the narrow transitions before reuse. A replacement should reproduce all functional openings, including small ones that are easy to overlook when comparing only the outer silhouette.

Material options: Rubber. Custom formulation and color for the intended contact conditions.
Hardness selection: Rubber: 30–90 Shore A. Choose the rubber grade with narrow bridges and projecting branches supported, allowing the irregular gasket to compress without pulling those features aside.
Custom dimensions: A special-shape rubber gasket can include branches, narrow bridges, and differently sized openings within one molded outline.
Fit & assembly: Support delicate extensions when moving the gasket from storage to the assembly.
Use & inspection: If the gasket is removed for service, keep its orientation identifiable and inspect the narrow transitions before reuse.

Photos illustrate structure or material only. A nearly symmetrical shape may appear to fit when reversed while placing one small opening or bridge in the wrong location. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
