Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · High quality silicone rubber damper/rubber buffer with screw
CUSTOM RUBBER & SILICONE MANUFACTURING

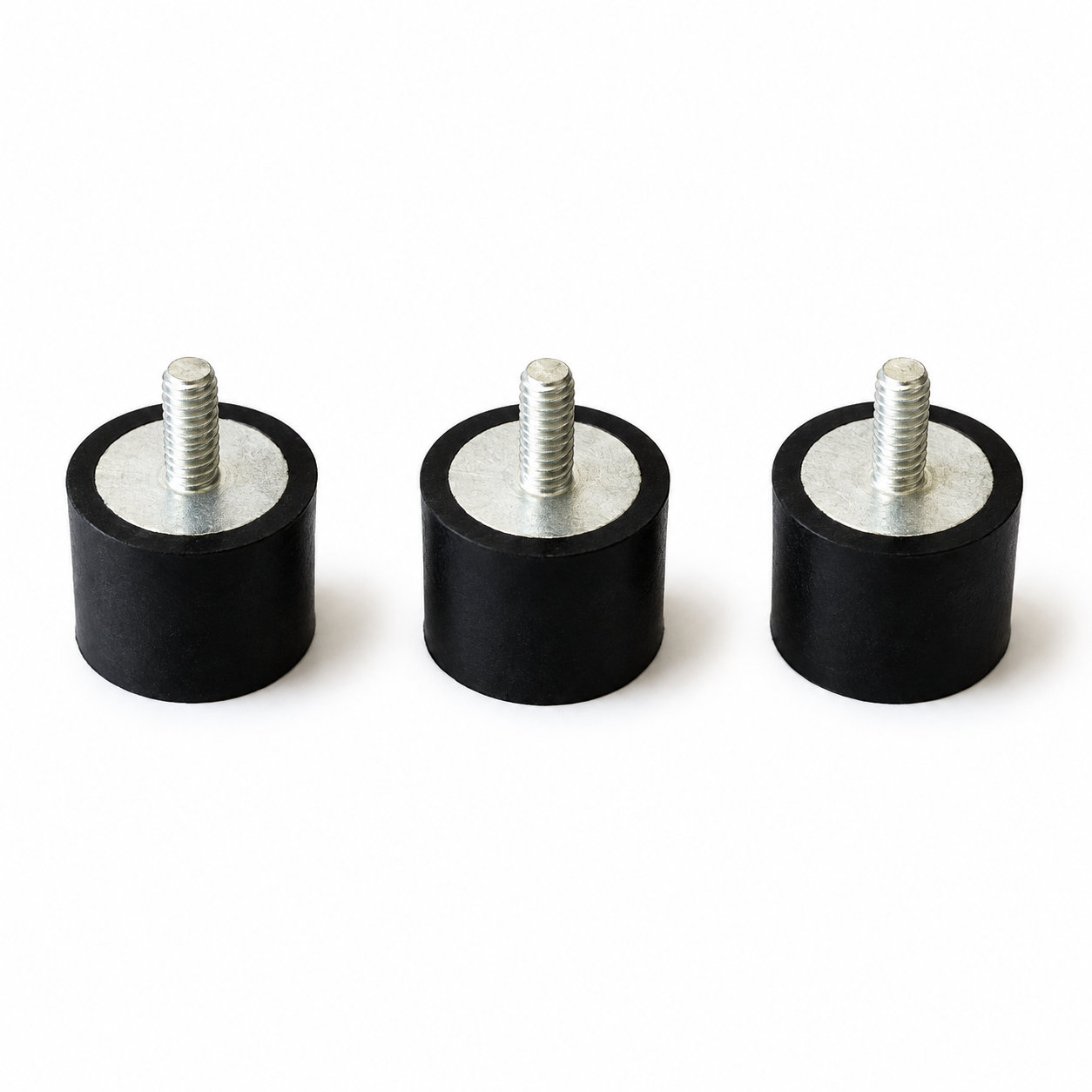

High quality silicone rubber damper/rubber buffer with screw
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A rubber buffer with screw attachment creates a retained compliant contact point within a matching assembly. The screw should locate the body so the opposing part meets its intended face. An attachment that is secure but offset can leave a thin edge receiving most of the contact.
Check the screw's receiving feature and usable engagement before fitting. The body should not be twisted to force alignment, and the surrounding space must allow the intended deformation. Select the silicone formulation and geometry for the actual environment and duty rather than assuming a particular damping value from the material name.
Inspect contact through the assembly's working movement after installation. The buffer should remain clear of nearby sharp features that could cut its sidewall. During maintenance, look for an angled wear patch, loose fastening or damage where rubber meets the screw feature. If the contact path has shifted, correct its alignment before replacing the buffer, so the new part does not immediately inherit the same concentrated loading.
- Material options
- Custom silicone compound; formulation and geometry developed together.
- Hardness selection
- Silicone options: 20–80 Shore A. The body should not be twisted to force alignment, and the surrounding space must allow the intended deformation.
- Custom geometry
- Check the screw's receiving feature and usable engagement before fitting.
- Fit evaluation
- Inspect contact through the assembly's working movement after installation.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. A rubber buffer with screw attachment creates a retained compliant contact point within a matching assembly. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
