Custom manufacturing example · Molded electronic machine engine rubber damper/shock-absorber
CUSTOM RUBBER & SILICONE MANUFACTURING

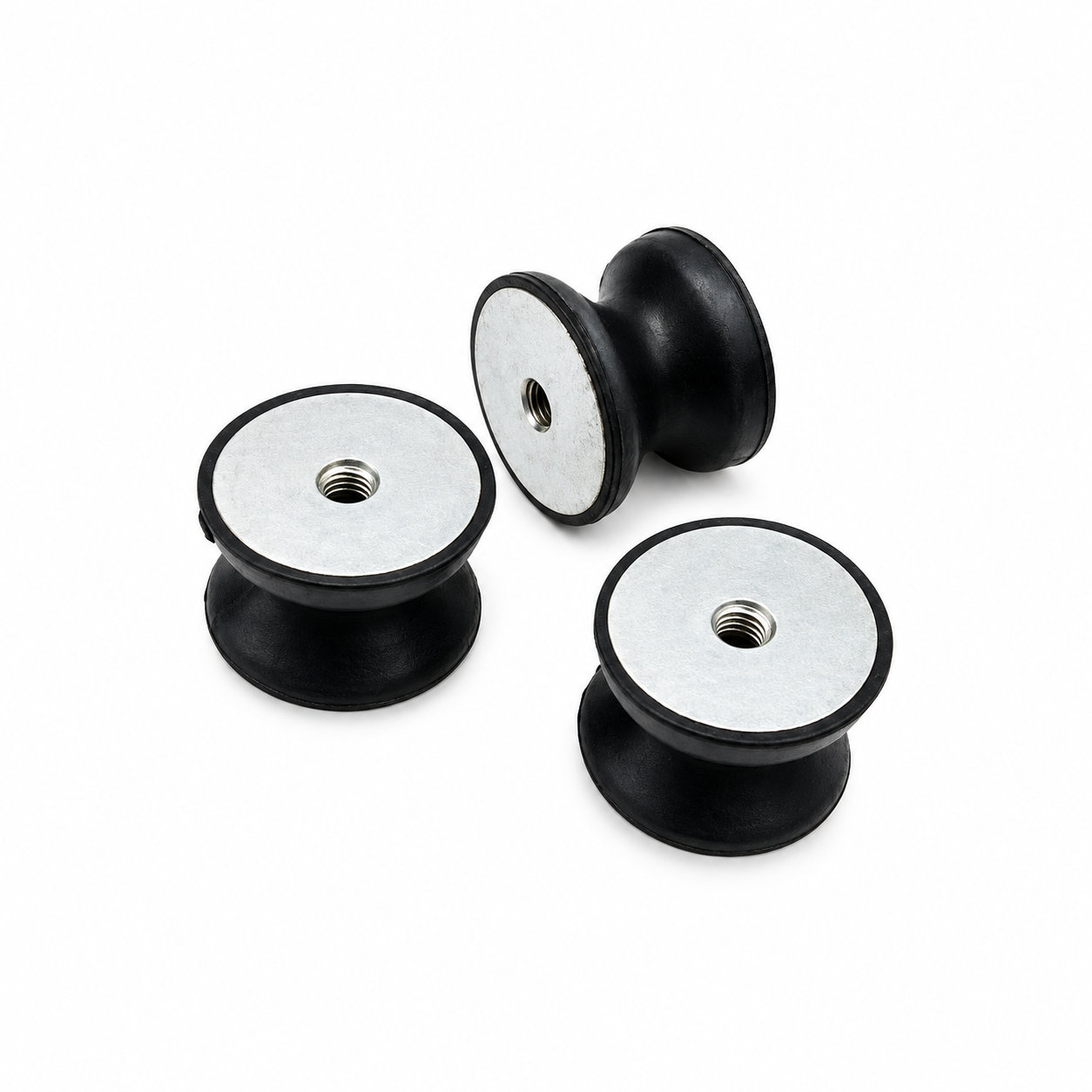

Molded electronic machine engine rubber damper/shock-absorber
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A rubber damper/shock-absorber in an electronic machine assembly needs to retain the clearance and alignment intended by the equipment design. Custom dimensions and material should follow that defined position. Changes to nearby brackets, cables, or components can affect the support even when the rubber part itself remains unchanged.
Check the load path and the space around the working body. The connected assembly should not contact a neighboring rigid surface through its intended movement. Any required attachment hardware should secure the damper without twisting or trapping the rubber.
Evaluate the completed equipment under normal operation after installation or surrounding repairs. A loose molded component cannot establish the response of the full system. During maintenance, inspect for cracks, rubbing marks, loosening, or a lasting change in position. Use a replacement with the specified geometry and compound rather than choosing only by its mounting footprint. Preserving the original installed height and clearance helps maintain the intended flexible support relationship.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. Preserving the original installed height and clearance helps maintain the intended flexible support relationship.
- Custom geometry
- Custom dimensions and material should follow that defined position.
- Fit evaluation
- Evaluate the completed equipment under normal operation after installation or surrounding repairs.
- Color & OEM
- Custom colors; identification clear of connectors and removal features.
Photos illustrate structure or material appearance only. Preserving the original installed height and clearance helps maintain the intended flexible support relationship. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
