Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Molded EPDM rubber bond met/anti-vibration rubber damper
CUSTOM RUBBER & SILICONE MANUFACTURING

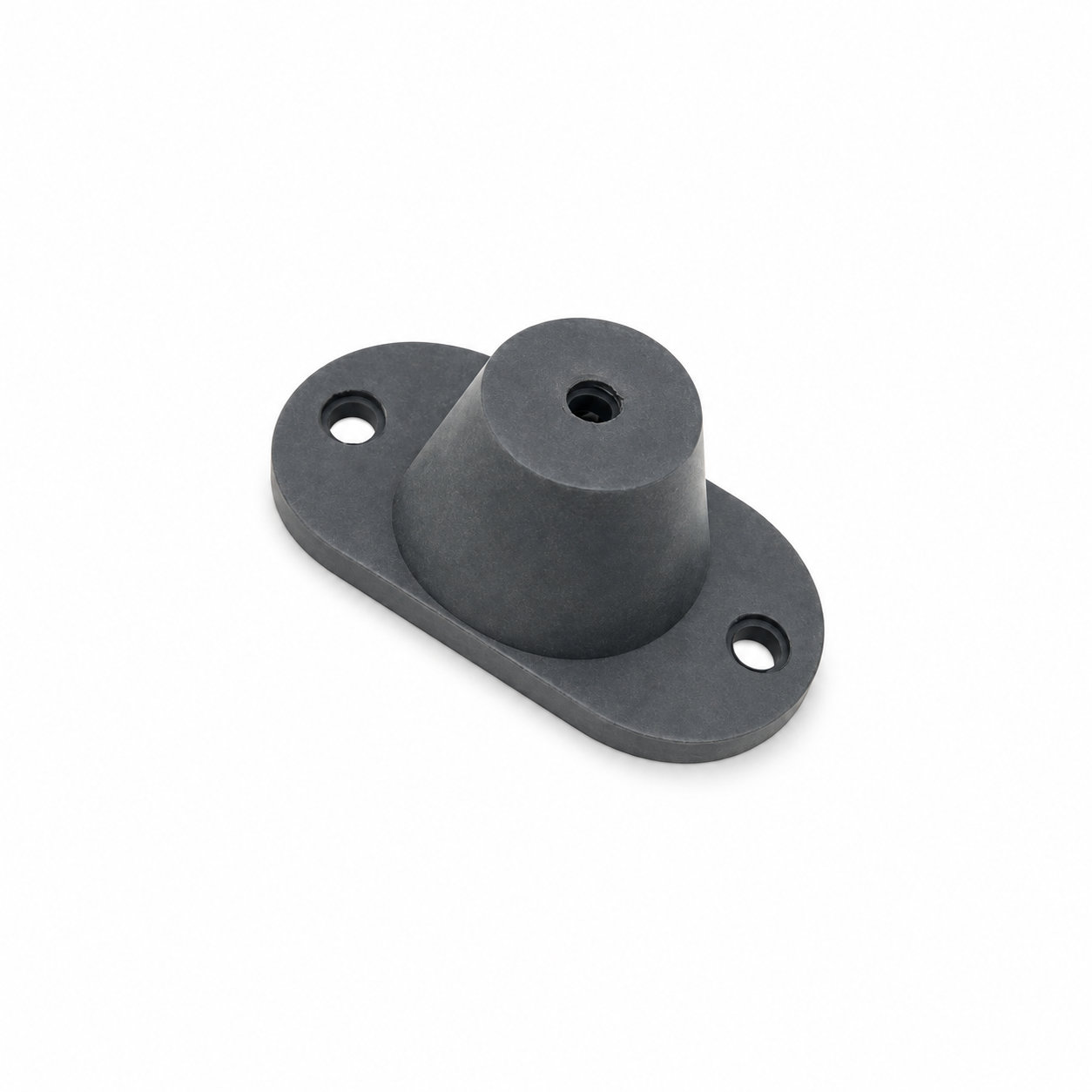

Molded EPDM rubber bond met/anti-vibration rubber damper
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
An anti-vibration rubber damper in EPDM can be custom molded for a mechanical support arrangement. The rubber profile and any bonded attachment need to suit the direction of load and available movement. The finished compound should be chosen for the environment in which the mount operates.
Check how the supporting parts locate the rubber. The mount should not be twisted to compensate for misaligned connections, and its moving region needs clearance from surrounding hardware. A rigid contact that develops beside the mount can change the behavior of the assembly even if the rubber itself remains undamaged.
Evaluate vibration response on the complete equipment under its intended conditions. A molded EPDM component should not be assumed to provide a hydraulic damping mechanism or a universal stopping capacity. During maintenance, inspect the attachment transitions and exposed surfaces for cuts, displacement or separation. If damage is concentrated on one side, review the load alignment and clearances before replacing the part so the same mounting condition is not repeated.
- Material options
- EPDM compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. The rubber profile and any bonded attachment need to suit the direction of load and available movement.
- Custom geometry
- The mount should not be twisted to compensate for misaligned connections, and its moving region needs clearance from surrounding hardware.
- Fit evaluation
- Evaluate vibration response on the complete equipment under its intended conditions.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. The rubber profile and any bonded attachment need to suit the direction of load and available movement. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
