Custom manufacturing example · Custom made rubber anti vibration with iron
CUSTOM RUBBER & SILICONE MANUFACTURING

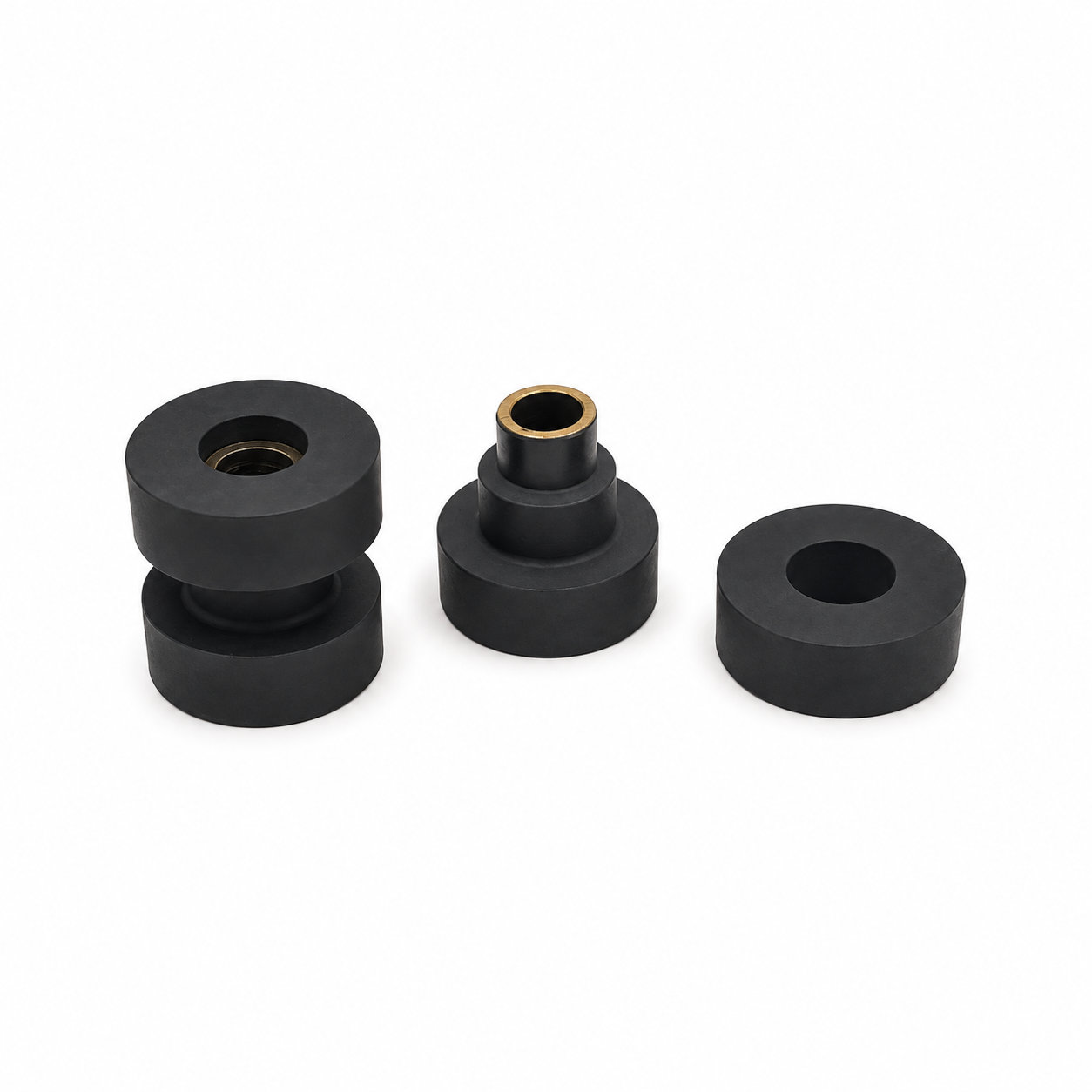

Custom made rubber anti vibration with iron
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A rubber anti vibration component with iron features combines rigid attachment areas with a flexible body. The iron portions locate the part within an assembly, while the rubber's working section must remain arranged to provide the intended compliance. The complete mounting path determines whether rigid surfaces unintentionally bypass that section.
Check the hardware outline, fastening positions and body clearance before installation. Drawing misaligned attachments together by tightening can leave the rubber permanently displaced. The selected formulation must also suit the environment around the mount, including substances that may contact both rubber and exposed metal.
Evaluate the installed equipment under its normal conditions rather than assuming a particular vibration reduction from the material combination. During service, inspect accessible iron for corrosion and the adjoining rubber for cracking or separation. If the component has shifted, examine the fastening and receiving structure as well as the body. Restoring a loose connection does not necessarily restore a compliant section that has already deteriorated or changed shape.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. A rubber anti vibration component with iron features combines rigid attachment areas with a flexible body.
- Custom geometry
- Check the hardware outline, fastening positions and body clearance before installation.
- Fit evaluation
- Evaluate the installed equipment under its normal conditions rather than assuming a particular vibration reduction from the material combination.
- Color & OEM
- Custom colors; OEM markings clear of the working interface.
Photos illustrate structure or material appearance only. Restoring a loose connection does not necessarily restore a compliant section that has already deteriorated or changed shape. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
