CUSTOM RUBBER & SILICONE MANUFACTURING

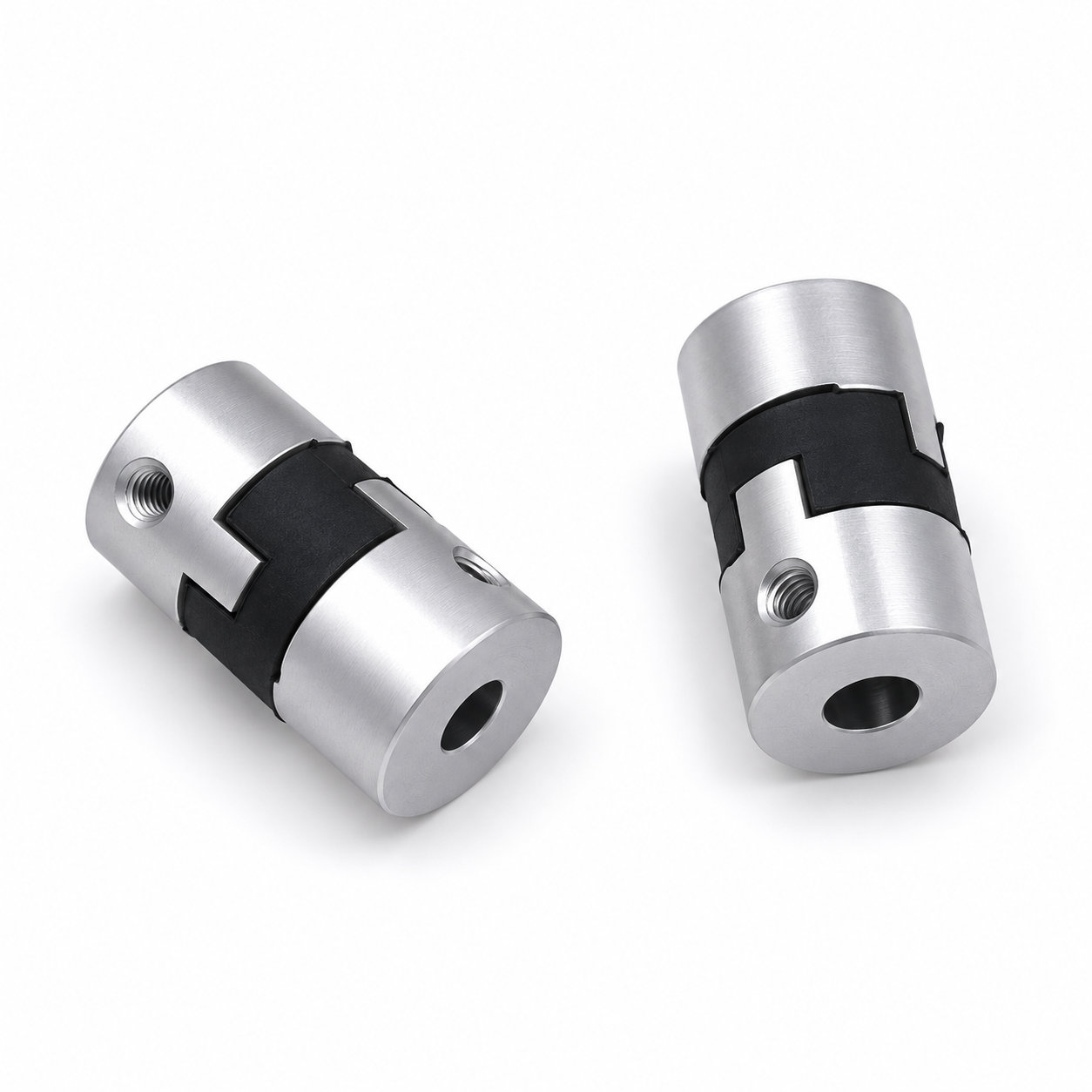

Rubber parts with hardware, rubber anti vibration

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

Rubber parts with hardware combine rigid attachment features with a molded section intended to deform. The hardware geometry should establish location and fastening while leaving the rubber's working region free. A washer or bracket that contacts the wrong area can change the load path substantially.

Custom material, dimensions, hardness and color can follow the assembly. Define the hardware positions, engagement and available clearances together with the direction of load. The installation method should avoid twisting the rubber to bring misaligned rigid features into place.

Evaluate the complete mounting with all intended hardware installed. Check for an unintended rigid contact that bypasses the rubber and inspect whether deformation remains centered in the developed area. Any anti vibration result needs assessment of the supported system.

During maintenance, examine attachment security and the rubber near hardware boundaries separately. A loose connection can alter movement without visible rubber damage, while an intact fastener can conceal splitting beside its interface. Preserve the developed hardware and material configuration during replacement and review recurring misalignment before selecting a larger rubber body.

Material options: Rubber compound options, customized alongside the profile and contact conditions.
Hardness selection: Solid rubber options: 30–90 Shore A. Define the hardware positions, engagement and available clearances together with the direction of load.
Custom geometry: Custom material, dimensions, hardness and color can follow the assembly.
Fit evaluation: Evaluate the complete mounting with all intended hardware installed.
Color & OEM: Custom colors; OEM markings clear of the working interface.

Photos illustrate structure or material appearance only. A loose connection can alter movement without visible rubber damage, while an intact fastener can conceal splitting beside its interface. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.

DISCUSS THIS COMPONENT

Describe the part you need.

Share the fit, operating conditions and quantity with our manufacturing team.
