Custom manufacturing example · Rubber vibration damper with threaded bolt screw
CUSTOM RUBBER & SILICONE MANUFACTURING
Rubber vibration damper with threaded bolt screw
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A rubber vibration damper with threaded bolt screw needs a compatible receiving connection and a body suited to the intended support. The thread and engagement length establish attachment, while the rubber dimensions and material follow the equipment's load and movement requirements. Both parts of the interface should be defined before installation.
Check the space behind the receiving hole and the clearance around the rubber. A bolt that reaches an internal obstruction can prevent proper seating, while nearby hardware can restrict the working body. Use the equipment's intended fastening method rather than turning the rubber itself to force engagement.
Evaluate the complete installation under normal operation. Cables or brackets crossing the flexible support can influence its behavior and should follow the designed arrangement. During maintenance, inspect the threaded connection and molded region together for loosening, cracks, or persistent displacement. Replace with the required thread and body geometry so that the original support height and movement clearance remain intact.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. Use the equipment's intended fastening method rather than turning the rubber itself to force engagement.
- Custom geometry
- The thread and engagement length establish attachment, while the rubber dimensions and material follow the equipment's load and movement requirements.
- Fit evaluation
- Check the space behind the receiving hole and the clearance around the rubber.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.

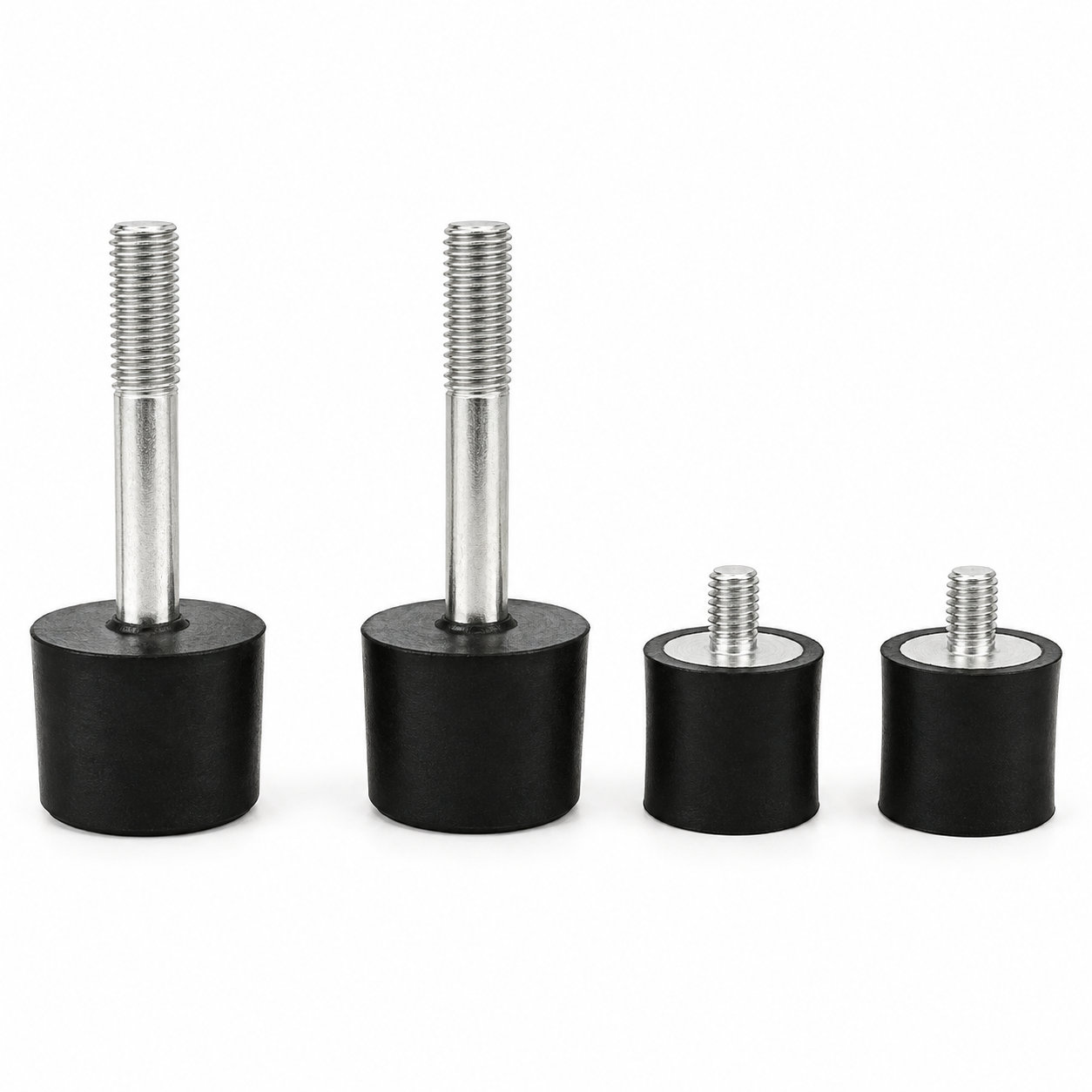

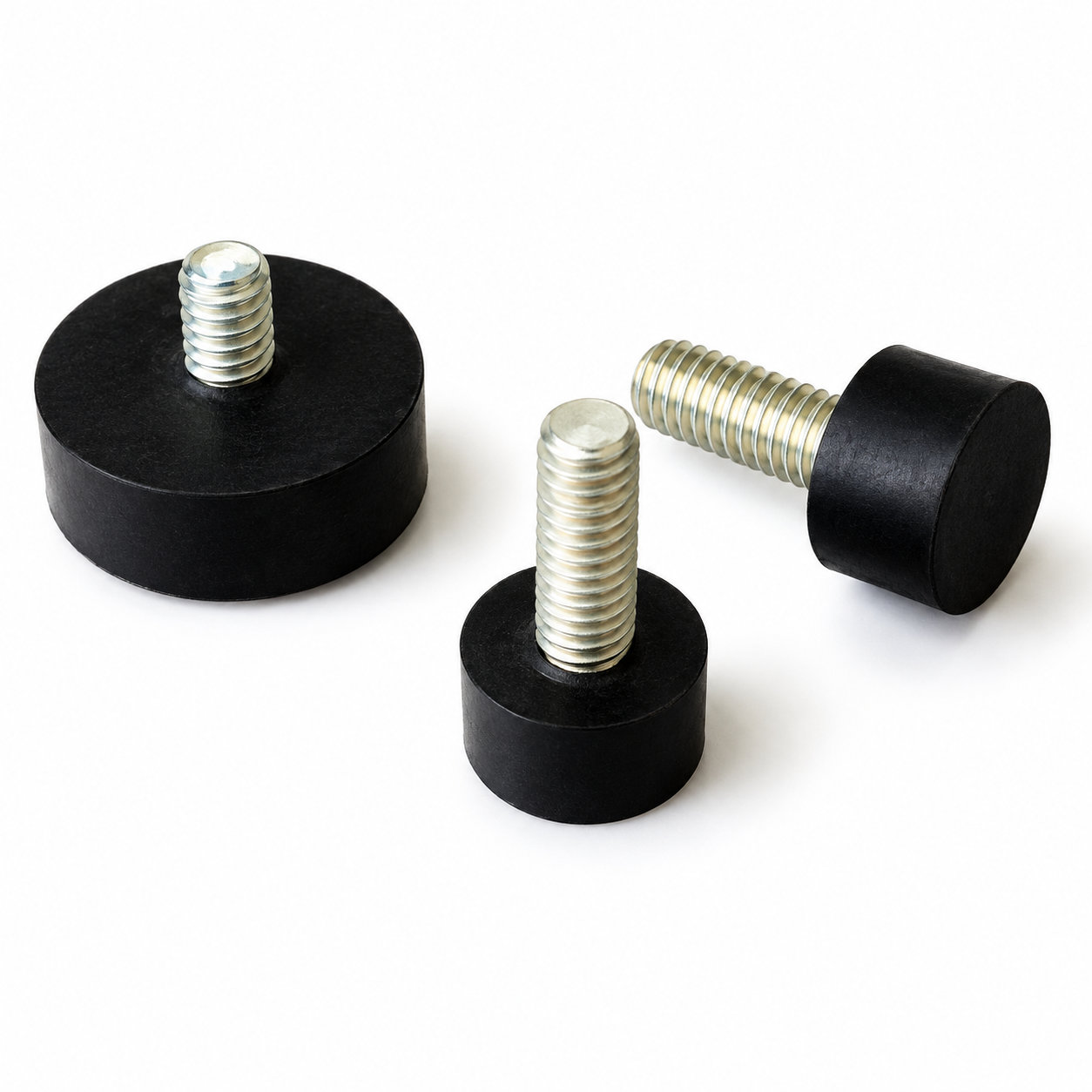

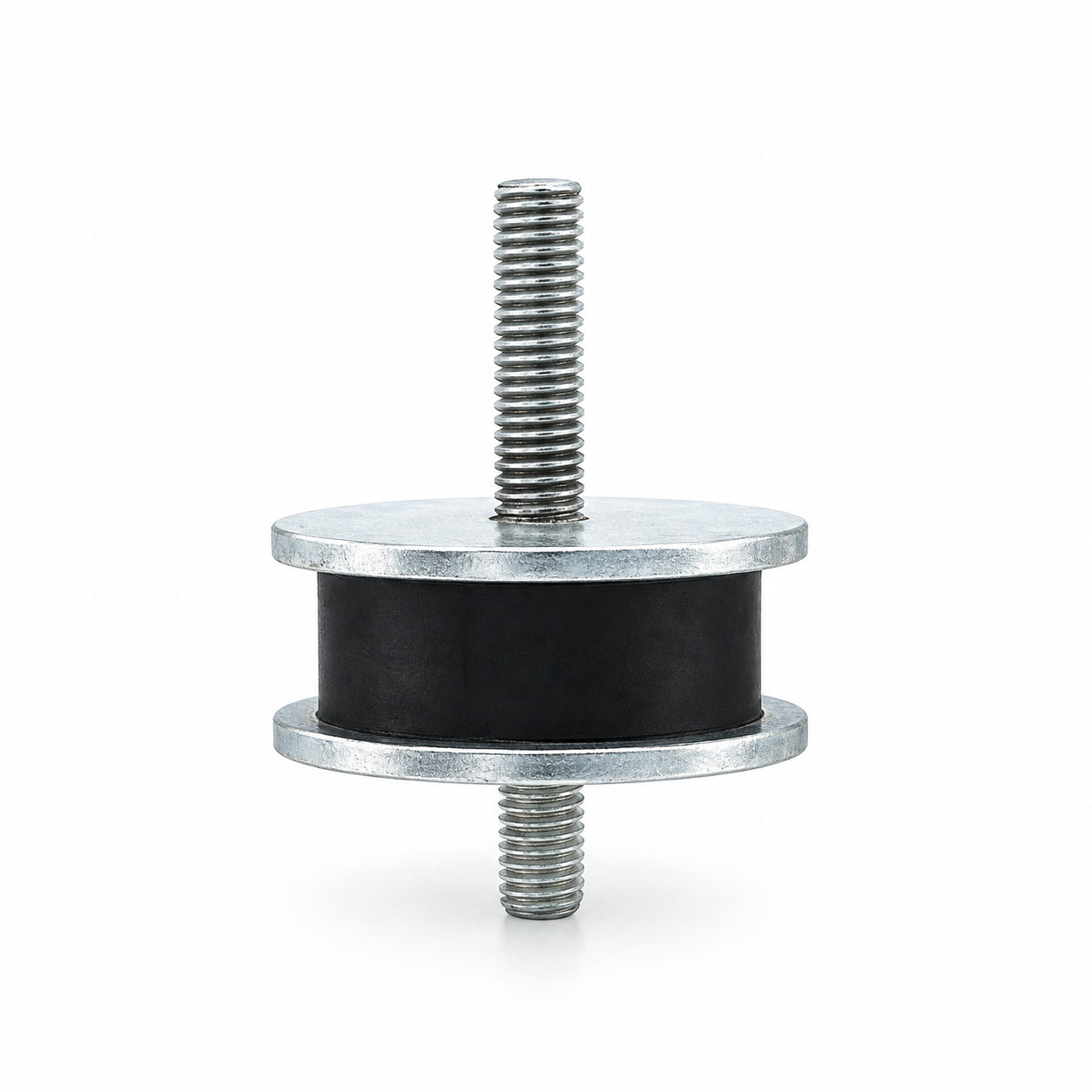

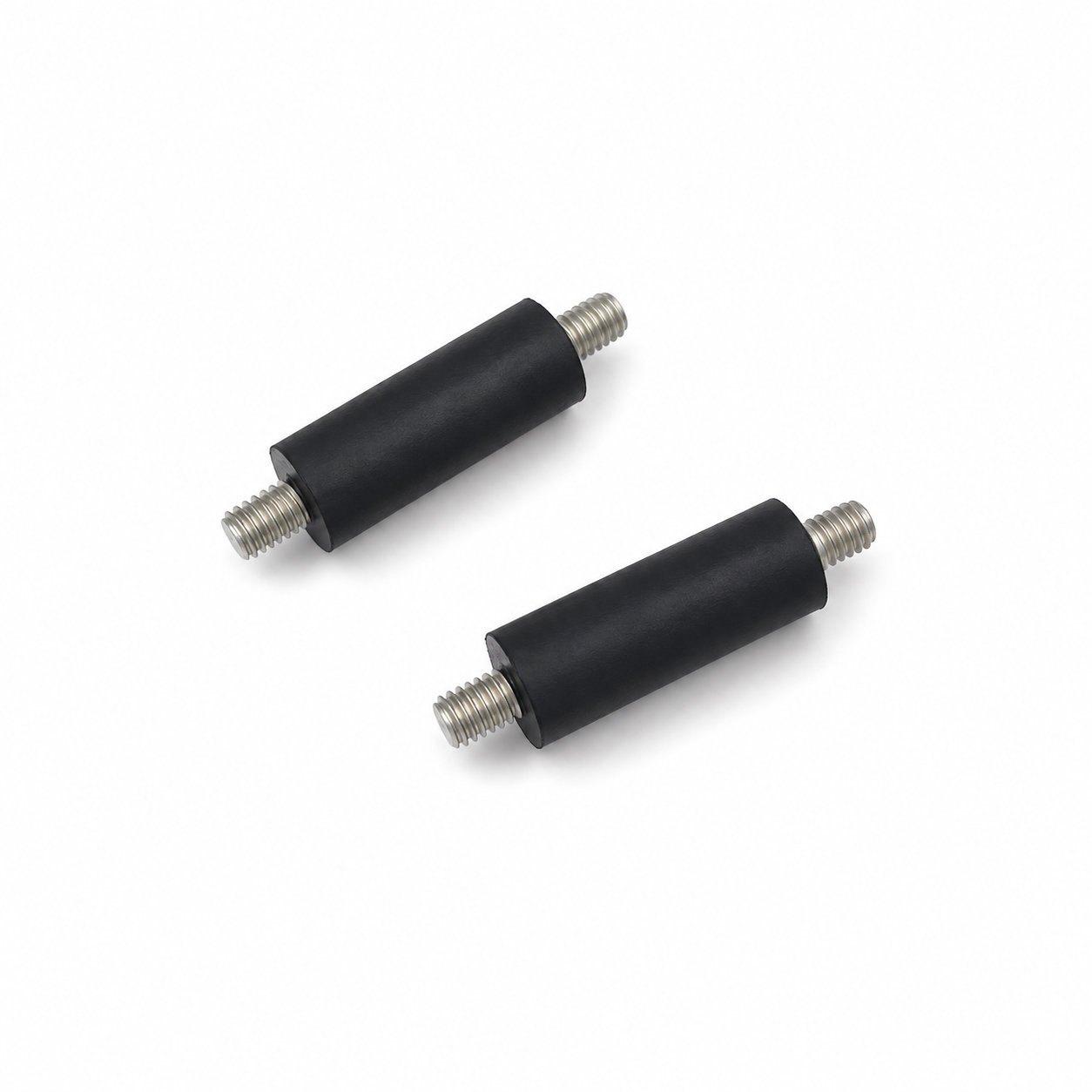

Photos illustrate structure or material appearance only. The thread and engagement length establish attachment, while the rubber dimensions and material follow the equipment's load and movement requirements. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
FIND THE RIGHT FIT
Cylindrical Rubber Mount Size Catalog
Choose a connection type, then compare body dimensions and metric threads. D, H and L are in millimeters; H excludes projecting studs. The M designation identifies the metric thread.
Type A Male / Male Cylindrical Mounts
157 sizes with a male stud at each end. Compare body diameter D, body height H, thread size and projecting stud length L.
DIMENSION GUIDE
PRODUCT APPEARANCE
| P/N | D | H | Thread | L | Unit |
|---|---|---|---|---|---|
| AVMM-88M36 | 8 | 8 | M3 | 6 | mm |
| AVMM-88M38 | 8 | 8 | M3 | 8 | mm |
| AVMM-88M310 | 8 | 8 | M3 | 10 | mm |
| AVMM-810M38 | 8 | 10 | M3 | 8 | mm |
| AVMM-108M36 | 10 | 8 | M3 | 6 | mm |
| AVMM-108M310 | 10 | 8 | M3 | 10 | mm |
| AVMM-108M46 | 10 | 8 | M4 | 6 | mm |
| AVMM-108M410 | 10 | 8 | M4 | 10 | mm |
| AVMM-1010M38 | 10 | 10 | M3 | 8 | mm |
| AVMM-1010M46 | 10 | 10 | M4 | 6 | mm |
| AVMM-1010M410 | 10 | 10 | M4 | 10 | mm |
| AVMM-1015M36 | 10 | 15 | M3 | 6 | mm |
| AVMM-1015M46 | 10 | 15 | M4 | 6 | mm |
| AVMM-1015M410 | 10 | 15 | M4 | 10 | mm |
| AVMM-158M410 | 15 | 8 | M4 | 10 | mm |
Type B Male / Female Cylindrical Mounts
175 sizes combining one male stud and one female insert. Use D and H for the body envelope and L for the exposed stud.
DIMENSION GUIDE
PRODUCT APPEARANCE
| P/N | D | H | Thread | L | Unit |
|---|---|---|---|---|---|
| AVMF-88M36 | 8 | 8 | M3 | 6 | mm |
| AVMF-88M38 | 8 | 8 | M3 | 8 | mm |
| AVMF-88M310 | 8 | 8 | M3 | 10 | mm |
| AVMF-108M46 | 10 | 8 | M4 | 6 | mm |
| AVMF-108M410 | 10 | 8 | M4 | 10 | mm |
| AVMF-1010M36 | 10 | 10 | M3 | 6 | mm |
| AVMF-1010M38 | 10 | 10 | M3 | 8 | mm |
| AVMF-1010M310 | 10 | 10 | M3 | 10 | mm |
| AVMF-1010M46 | 10 | 10 | M4 | 6 | mm |
| AVMF-1010M410 | 10 | 10 | M4 | 10 | mm |
| AVMF-1015M36 | 10 | 15 | M3 | 6 | mm |
| AVMF-1015M310 | 10 | 15 | M3 | 10 | mm |
| AVMF-1015M46 | 10 | 15 | M4 | 6 | mm |
| AVMF-1015M410 | 10 | 15 | M4 | 10 | mm |
| AVMF-158M410 | 15 | 8 | M4 | 10 | mm |
Type C Female / Female Cylindrical Mounts
89 sizes with female threads at both ends. Match body diameter D, body height H and the metric thread size.
DIMENSION GUIDE
PRODUCT APPEARANCE
| P/N | D | H | Thread | Unit |
|---|---|---|---|---|
| AVFF-88M3 | 8 | 8 | M3 | mm |
| AVFF-1010M3 | 10 | 10 | M3 | mm |
| AVFF-1010M4 | 10 | 10 | M4 | mm |
| AVFF-1015M3 | 10 | 15 | M3 | mm |
| AVFF-1015M4 | 10 | 15 | M4 | mm |
| AVFF-1515M4 | 15 | 15 | M4 | mm |
| AVFF-1515M5 | 15 | 15 | M5 | mm |
| AVFF-1520M4 | 15 | 20 | M4 | mm |
| AVFF-1520M5 | 15 | 20 | M5 | mm |
| AVFF-1530M4 | 15 | 30 | M4 | mm |
| AVFF-1530M5 | 15 | 30 | M5 | mm |
| AVFF-2015M6 | 20 | 15 | M6 | mm |
| AVFF-2020M5 | 20 | 20 | M5 | mm |
| AVFF-2020M6 | 20 | 20 | M6 | mm |
| AVFF-2025M6 | 20 | 25 | M6 | mm |
Type D Male / Foot Cylindrical Mounts
137 sizes with a single male stud and a plain rubber foot. Check D for the footprint, H for body height and L for stud projection.
DIMENSION GUIDE
PRODUCT APPEARANCE
| P/N | D | H | Thread | L | Unit |
|---|---|---|---|---|---|
| AVSM-88M36 | 8 | 8 | M3 | 6 | mm |
| AVSM-88M310 | 8 | 8 | M3 | 10 | mm |
| AVSM-108M46 | 10 | 8 | M4 | 6 | mm |
| AVSM-108M410 | 10 | 8 | M4 | 10 | mm |
| AVSM-1010M310 | 10 | 10 | M3 | 10 | mm |
| AVSM-1010M46 | 10 | 10 | M4 | 6 | mm |
| AVSM-1010M410 | 10 | 10 | M4 | 10 | mm |
| AVSM-1015M310 | 10 | 15 | M3 | 10 | mm |
| AVSM-1015M46 | 10 | 15 | M4 | 6 | mm |
| AVSM-1015M410 | 10 | 15 | M4 | 10 | mm |
| AVSM-158M410 | 15 | 8 | M4 | 10 | mm |
| AVSM-158M415 | 15 | 8 | M4 | 15 | mm |
| AVSM-158M510 | 15 | 8 | M5 | 10 | mm |
| AVSM-1510M410 | 15 | 10 | M4 | 10 | mm |
| AVSM-1510M415 | 15 | 10 | M4 | 15 | mm |
Type E Female / Foot Cylindrical Mounts
80 sizes with a female top insert and a plain rubber foot. Compare diameter D, height H and the recessed thread size.
DIMENSION GUIDE
PRODUCT APPEARANCE
| P/N | D | H | Thread | Unit |
|---|---|---|---|---|
| AVSF-88M3 | 8 | 8 | M3 | mm |
| AVSF-108M3 | 10 | 8 | M3 | mm |
| AVSF-108M4 | 10 | 8 | M4 | mm |
| AVSF-1010M3 | 10 | 10 | M3 | mm |
| AVSF-1010M4 | 10 | 10 | M4 | mm |
| AVSF-1015M3 | 10 | 15 | M3 | mm |
| AVSF-1015M4 | 10 | 15 | M4 | mm |
| AVSF-158M4 | 15 | 8 | M4 | mm |
| AVSF-1510M4 | 15 | 10 | M4 | mm |
| AVSF-1510M5 | 15 | 10 | M5 | mm |
| AVSF-1515M4 | 15 | 15 | M4 | mm |
| AVSF-1515M5 | 15 | 15 | M5 | mm |
| AVSF-1520M4 | 15 | 20 | M4 | mm |
| AVSF-1520M5 | 15 | 20 | M5 | mm |
| AVSF-1530M4 | 15 | 30 | M4 | mm |
