Anti vibration rubber vibration isolator mounts

Custom rubber vibration isolator mounts create a compliant connection within a support system. The useful design depends on the direction of the applied forces and the space in which the rubber can move. Multiple rubber materials, custom size and color, and hardness options from 30 to 90 Shore A are available.

Start by identifying how the supported item loads the mount. Compression, sideways movement and combined motion can produce different deformation in the same outer shape. Include the mounting orientation and the clearance to neighboring components, since a part that moves freely on its own may be restricted once installed.

Define the supported position before comparing candidates. A change in material hardness can alter the resting displacement, which in turn changes the space remaining for operational movement. The support arrangement and distribution of weight should stay representative during evaluation. Neither the broad material list nor a nominal hardness provides a load rating for every possible custom geometry.

Inspect the complete installation through its expected operating conditions. Watch the rubber and its attachments, and look for rigid parts coming into contact around it. A successful fit should preserve the intended alignment while allowing the designed compliant movement. During service, compare the supported position with its established condition and examine for cracking, local wear or loosening. If a mount is replaced, verify the resulting position before returning the equipment to normal operation.

Material options

Rubber compound options, customized alongside the profile and contact conditions.

Hardness selection

Solid rubber options: 30–90 Shore A. Compression, sideways movement and combined motion can produce different deformation in the same outer shape.

Custom geometry

Include the mounting orientation and the clearance to neighboring components, since a part that moves freely on its own may be restricted once installed.

Fit evaluation

Start by identifying how the supported item loads the mount.

Color & OEM

Custom colors; part identification clear of mounting seats and loaded faces.

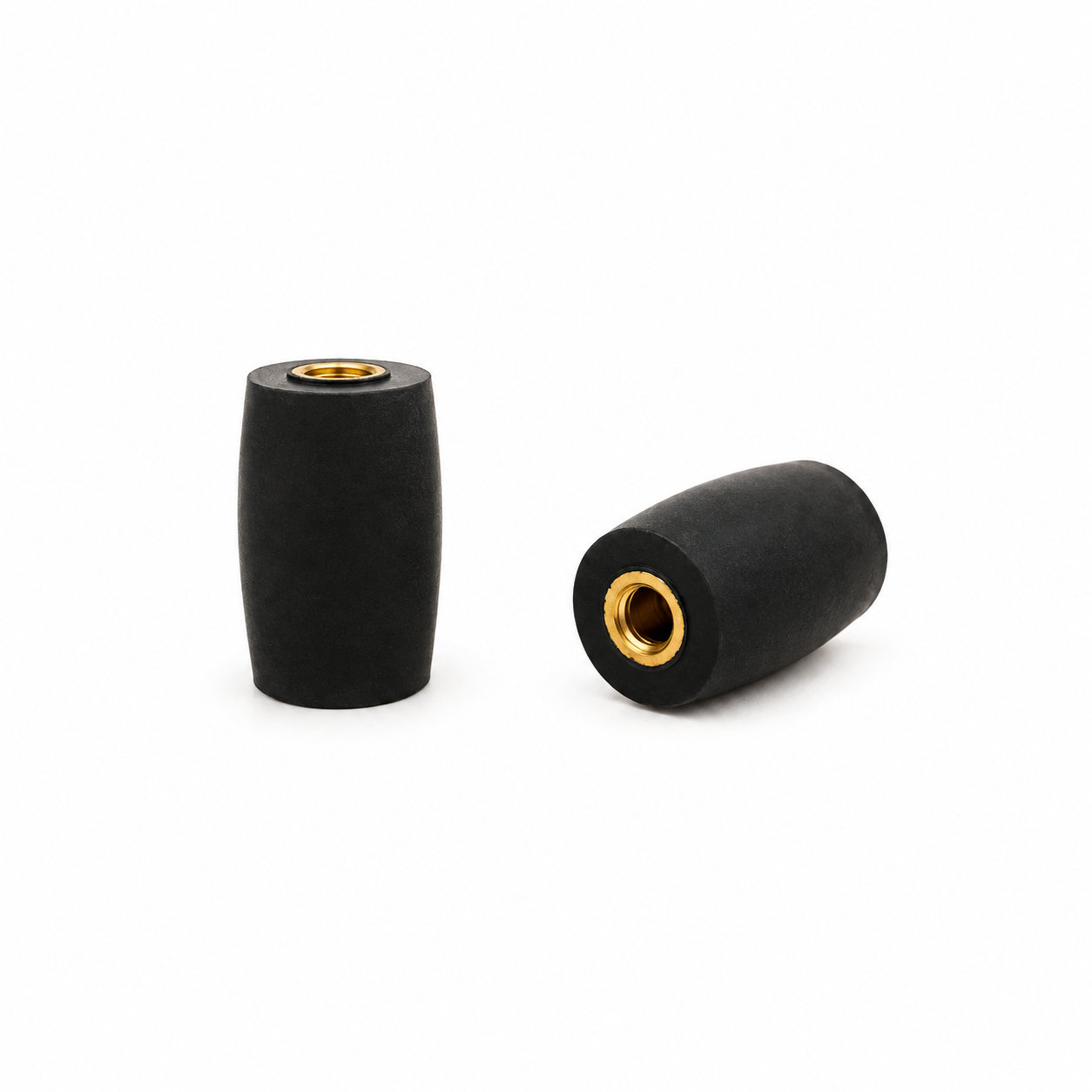

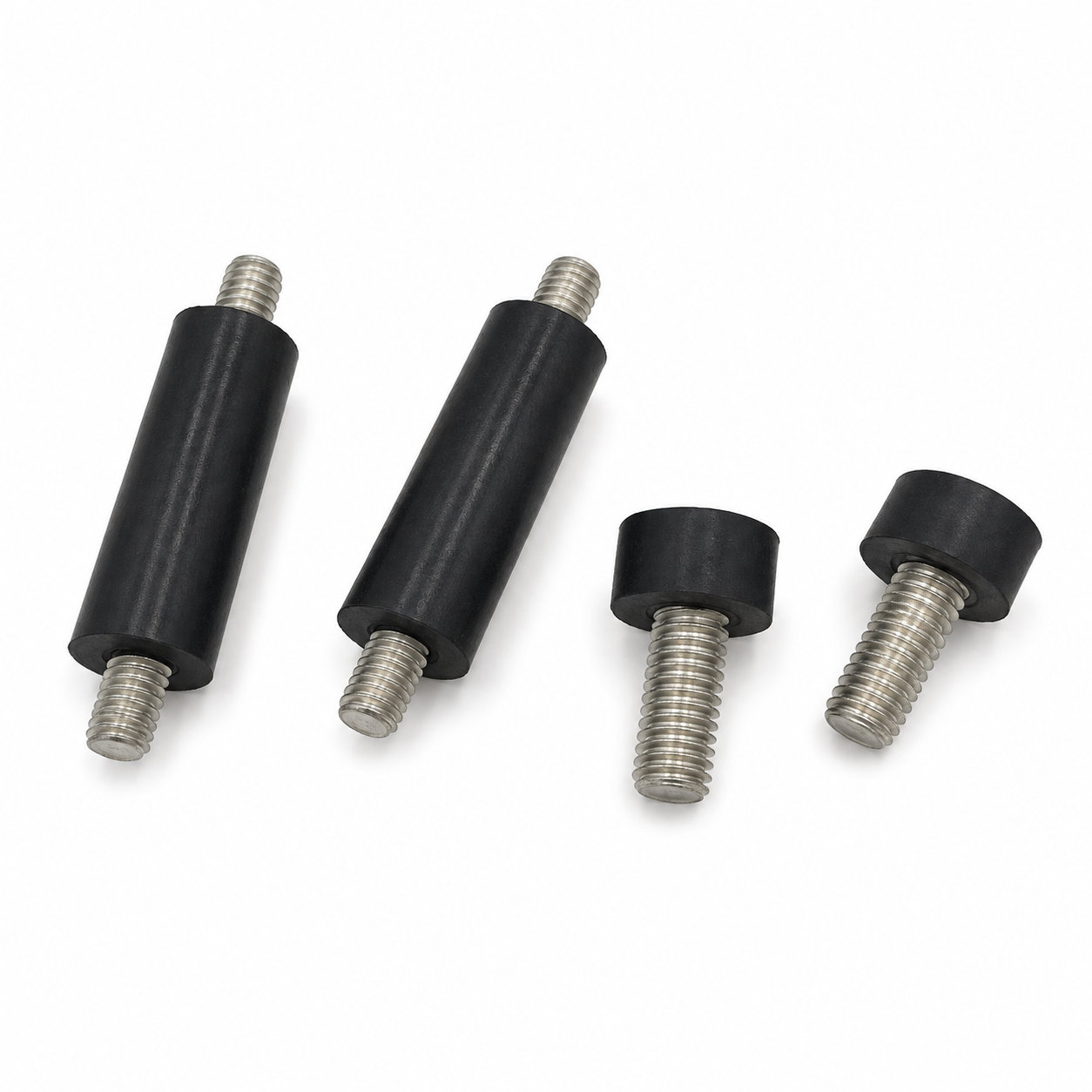

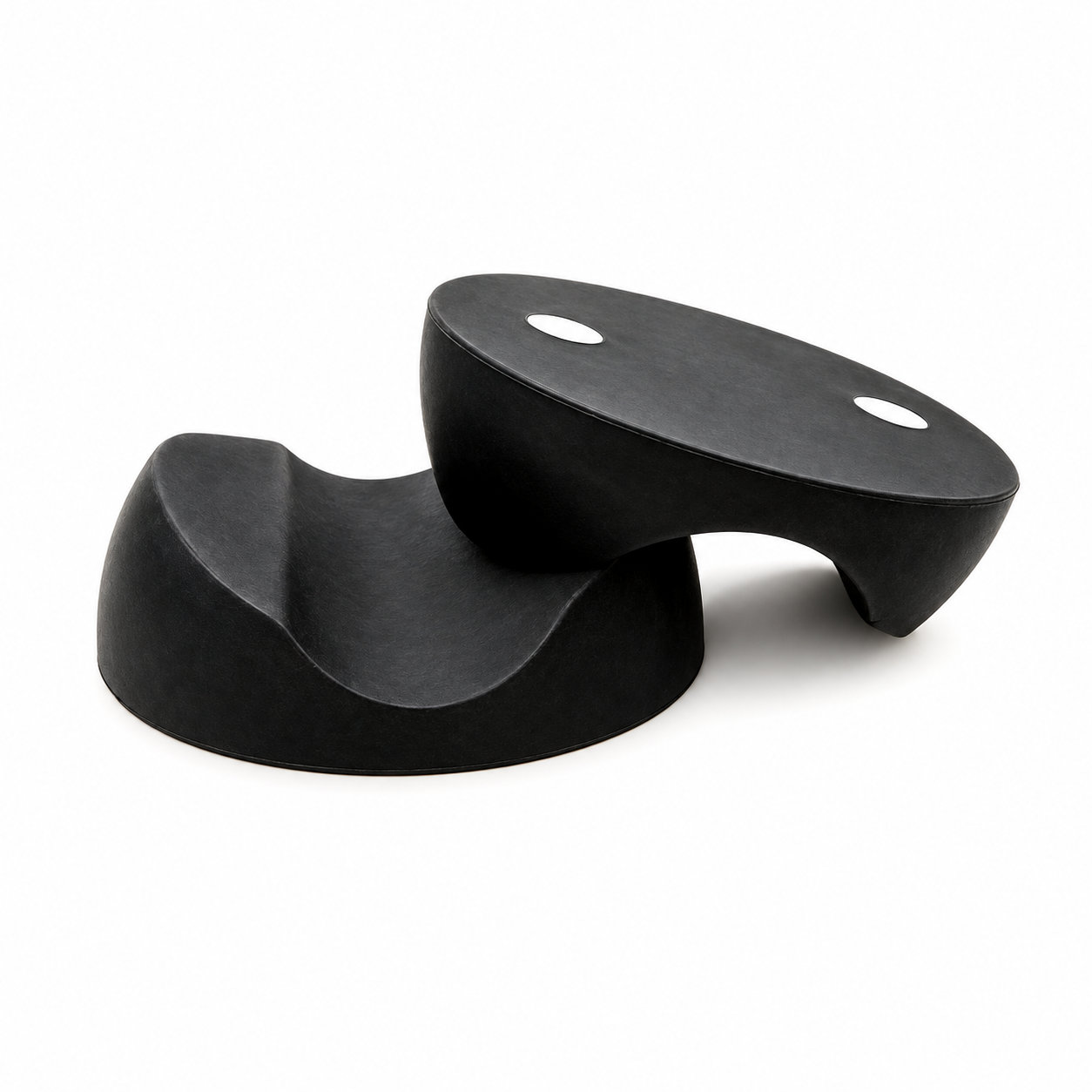

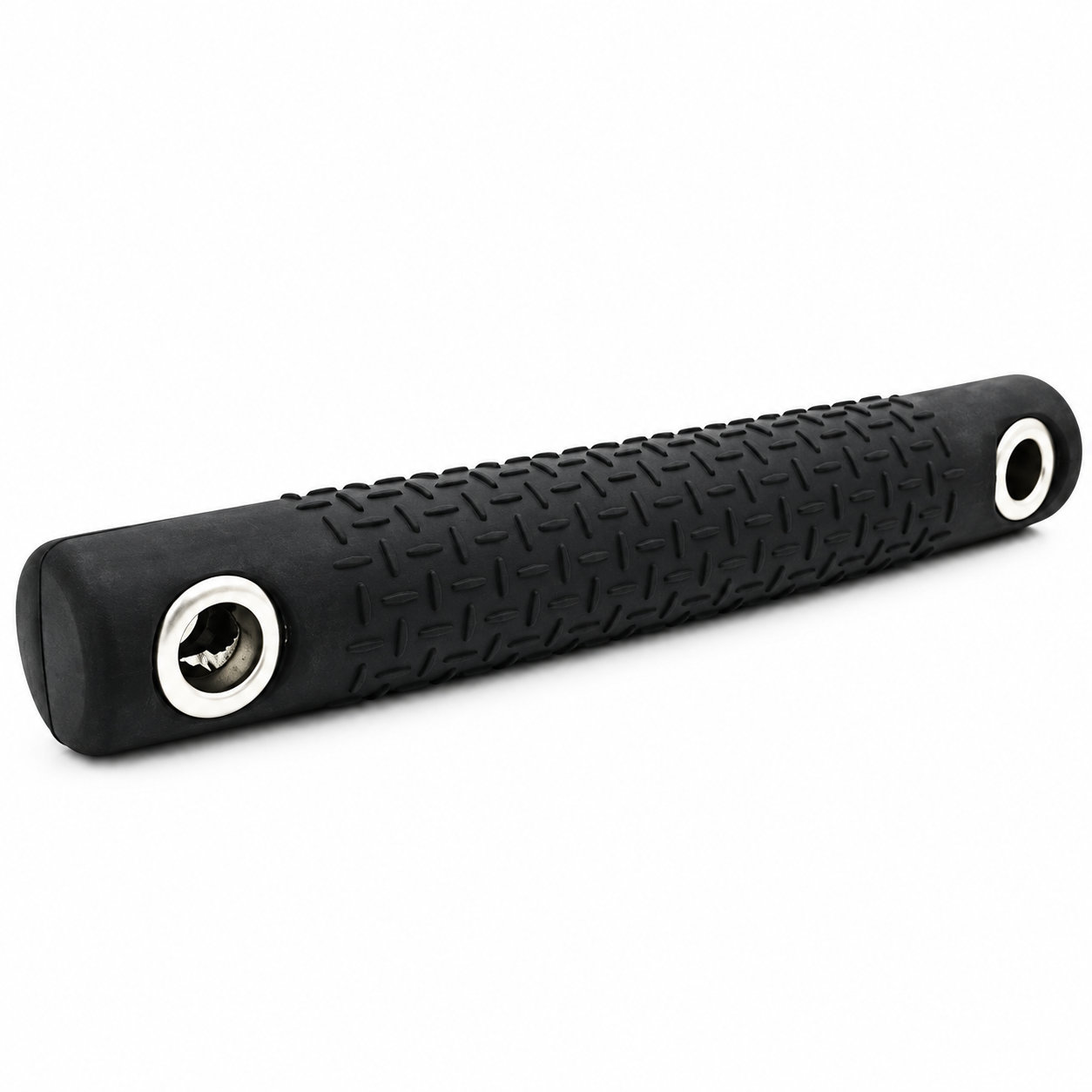

Photos illustrate structure or material appearance only. Compression, sideways movement and combined motion can produce different deformation in the same outer shape. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
