Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Silicone Ballonet Medical Rubber Pump Bulb
CUSTOM RUBBER & SILICONE MANUFACTURING

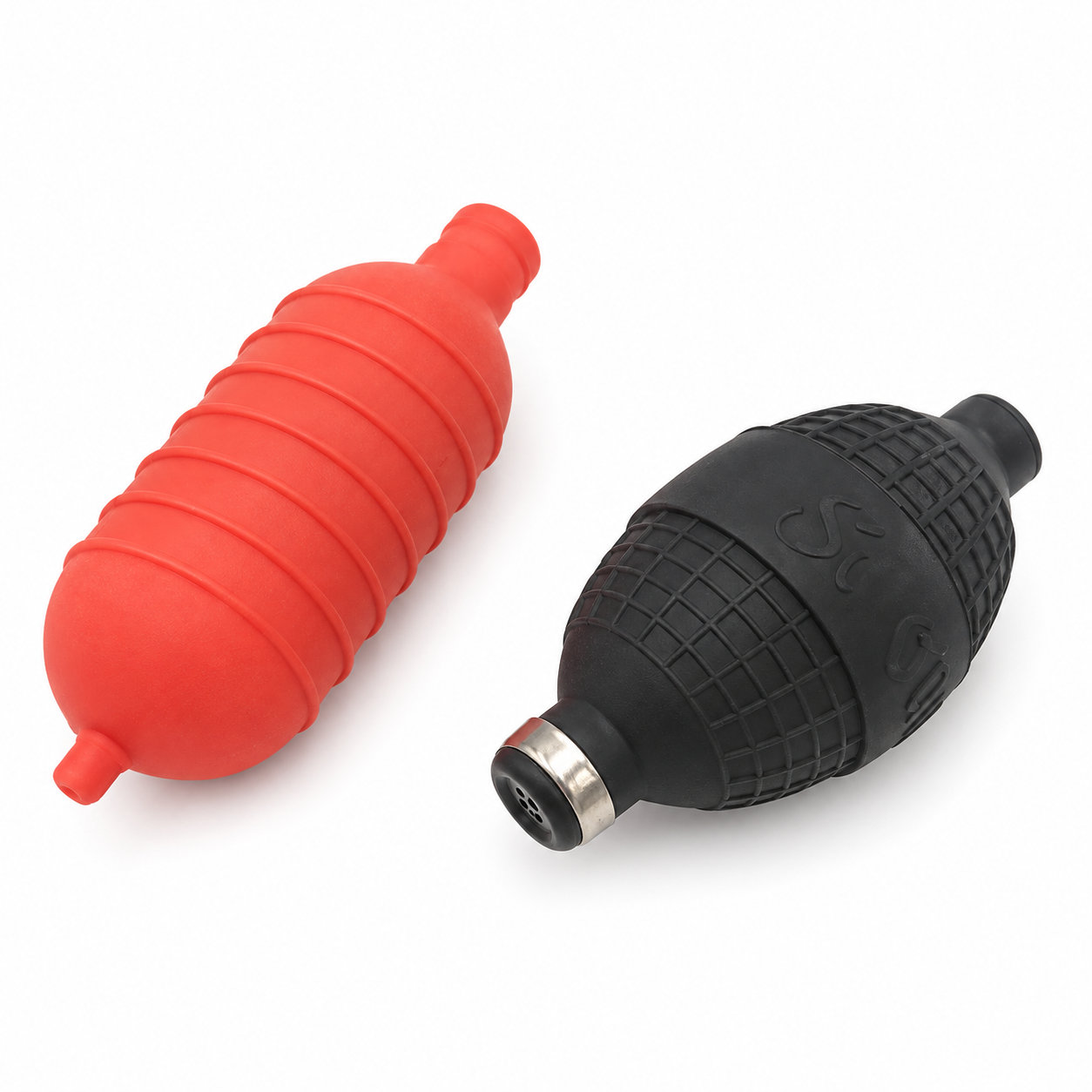

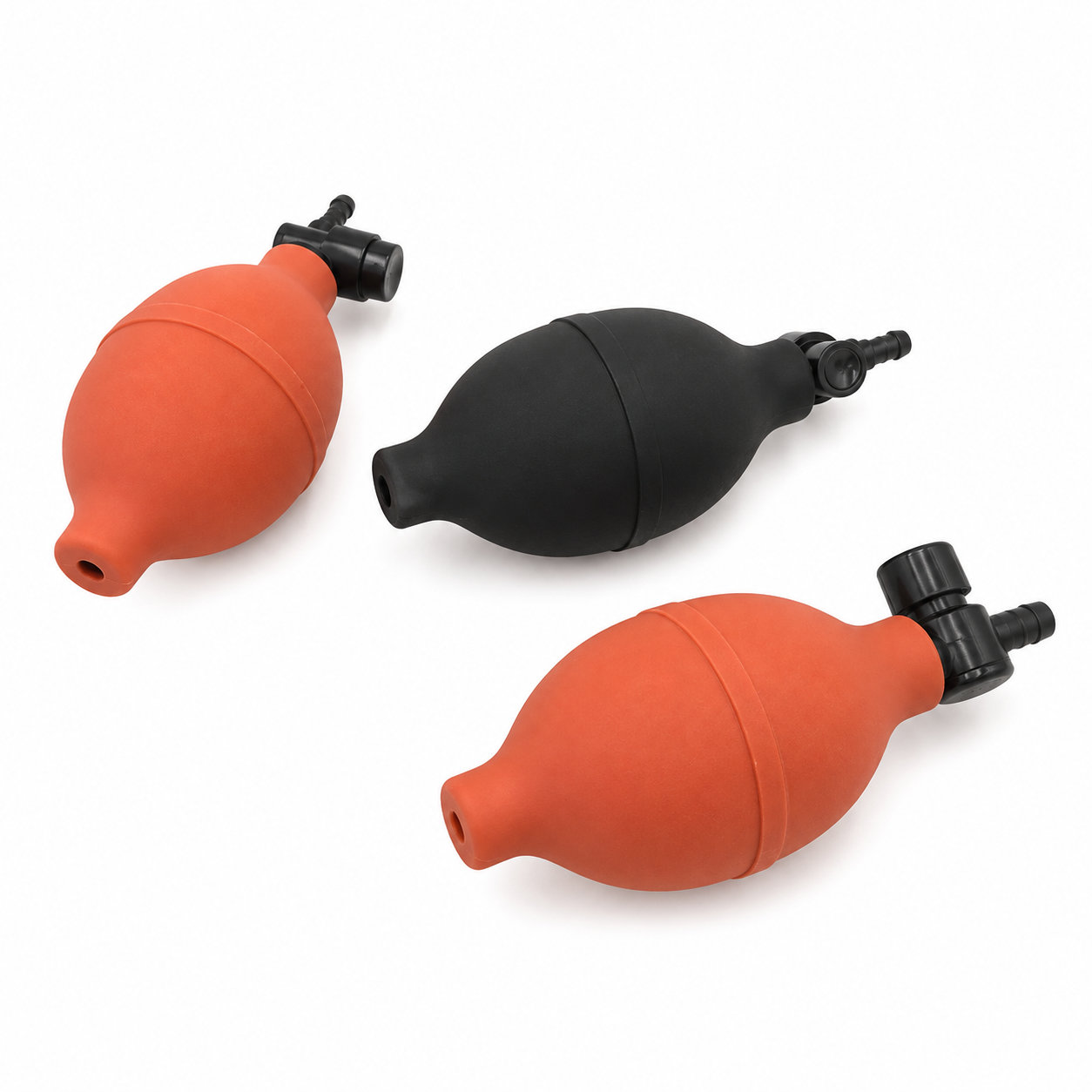

Silicone Ballonet Medical Rubber Pump Bulb
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A medical rubber pump bulb is a hand-operated component whose flexible body changes internal volume when compressed and released. Its role in a medical device depends on the complete tubing, valve and connection arrangement. The bulb alone does not define flow direction, delivered pressure, measurement accuracy or a clinical procedure.
For a silicone ballonet design, specify the body shape and connection features around the intended device. Neck dimensions, wall geometry and recovery behavior must work with the associated parts. The selected material and finished component need appropriate evaluation for their actual contact conditions and cleaning requirements.
Do not infer sterility, patient-contact suitability or compatibility with a particular instrument from the silicone designation or general product category. Those are properties of a defined, evaluated configuration. Handle the bulb so its connection areas remain clean and undamaged during assembly. Inspect for cracking, poor recovery and loose junctions during the device's prescribed maintenance, and replace a deteriorated component through the procedure established for that device.
- Material options
- Custom silicone or rubber formulation, with dimensions and color adapted to the mating component.
- Hardness range
- Silicone: 20–80 Shore A; rubber: 30–90 Shore A. Assess the grade against this fit requirement: A medical rubber pump bulb is a hand-operated component whose flexible body changes internal volume when compressed and released.
- Custom profile & fit
- Neck dimensions, wall geometry and recovery behavior must work with the associated parts.
- Assembly considerations
- Handle the bulb so its connection areas remain clean and undamaged during assembly.
- Design check
- The selected material and finished component need appropriate evaluation for their actual contact conditions and cleaning requirements.
Photos illustrate structure or material only. Neck dimensions, wall geometry and recovery behavior must work with the associated parts. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
