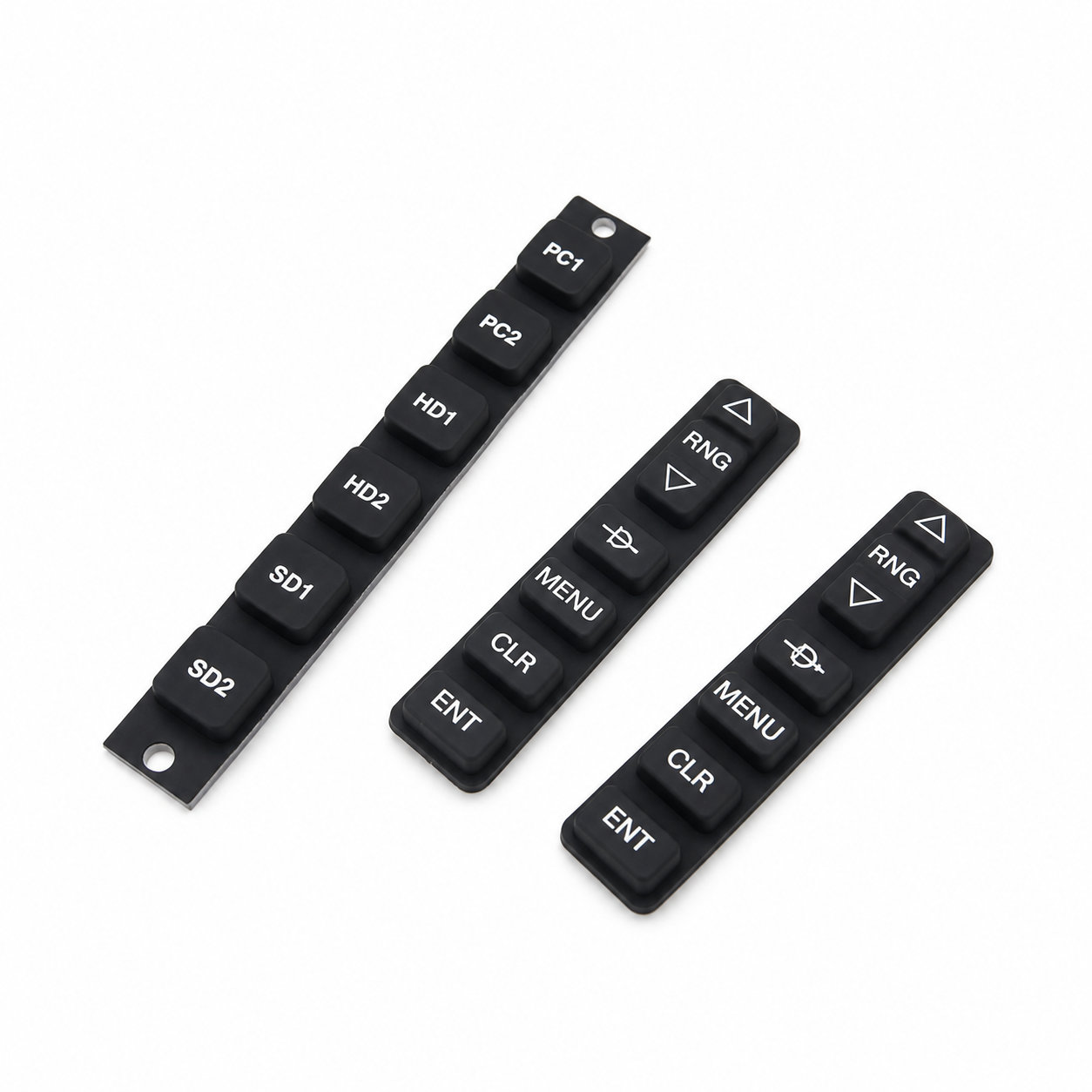

silicone membrane keypad custom made rubber button pad

A silicone membrane keypad should have a perimeter that fits its enclosure while leaving the button regions free to move. The surrounding sheet locates the controls and can influence their feel if it is stretched or trapped during assembly. Coordinate that outer shape with the housing, lower support, and circuit contact positions.

Check travel and clearance at every key opening. Select legends that remain visible in the installed position and align them with the intended functions. The locating features should hold the sheet naturally without forcing a distant corner into place.

During assembly, keep the switching area clean and inspect the perimeter before closing the housing. Test input and release after final fastening. If a group of buttons becomes stiff or inconsistent, examine the common seat and support before replacing individual controls. Avoid trimming the sheet to make an approximate keypad fit, since this changes retention and can allow the visible buttons or underside contacts to shift from their designed positions.

Material options

Silicone. Custom formulation and color for the intended contact conditions.

Hardness selection

Silicone: 20–80 Shore A. The surrounding sheet locates the controls and can influence their feel if it is stretched or trapped during assembly.

Custom dimensions

Coordinate that outer shape with the housing, lower support, and circuit contact positions.

Fit & assembly

Select legends that remain visible in the installed position and align them with the intended functions.

Use & inspection

During assembly, keep the switching area clean and inspect the perimeter before closing the housing.

Photos illustrate structure or material only. A silicone membrane keypad should have a perimeter that fits its enclosure while leaving the button regions free to move. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
