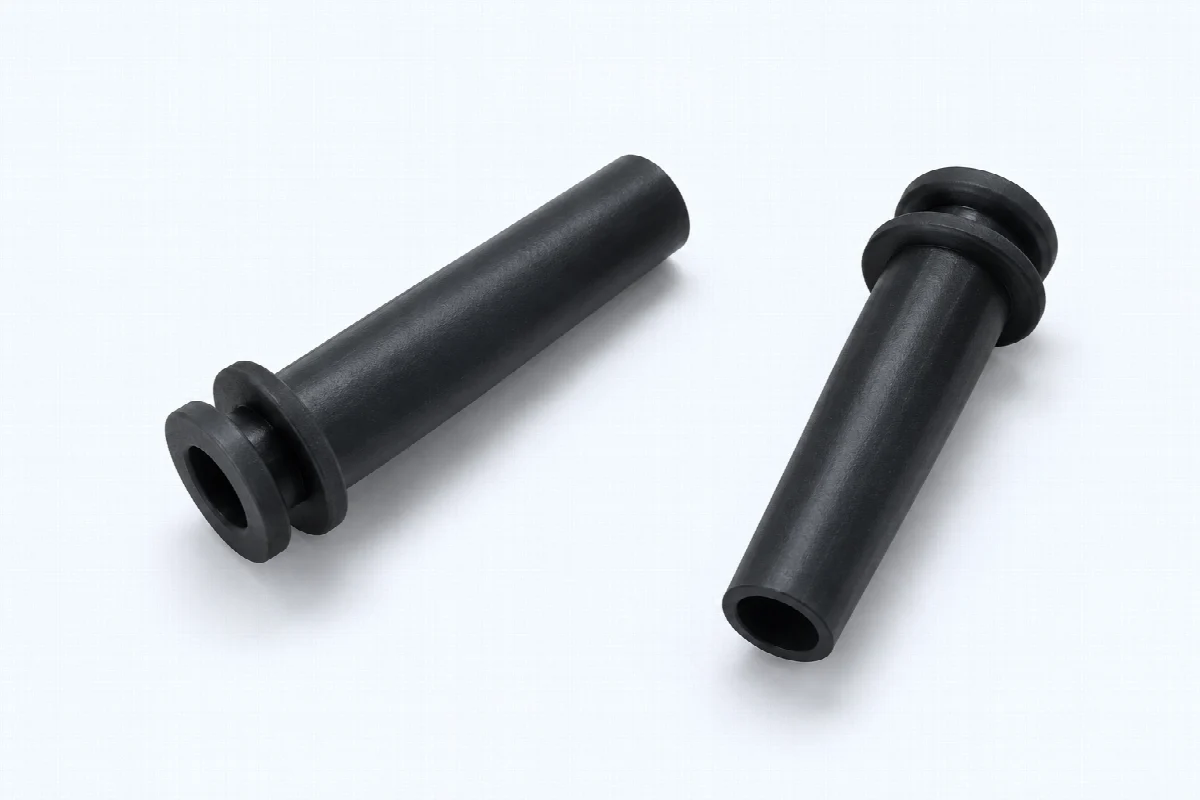

Silicone rubber pipe sleeve cable rubber pipe grommet

A silicone rubber pipe sleeve should be assessed after the clamps, brackets or housings around it have been secured. Those parts can change the sleeve's shape and the clearance inside its passage. The loose bore and wall thickness need to be developed with that installed compression in view.

Custom dimensions, hardness and color allow the component to follow the pipe or cable interface. Identify which surfaces are intended to retain the sleeve and which should remain free. The chosen silicone formulation should suit the local exposure and contact materials.

During assembly, keep the rubber aligned and avoid trapping a folded end beneath hardware. Check the inner passage after fastening, looking for excessive squeezing or an offset contact. If the sleeve includes a panel grommet feature, inspect that retaining region separately. During service, look for extrusion marks at the hardware boundary and wear immediately beyond the sleeve. Repeated local damage may indicate that the seat or fastening arrangement needs revision rather than a simple increase in silicone wall thickness.

Material options

Custom silicone compound; formulation and geometry developed together.

Hardness selection

Silicone options: 20–80 Shore A. The loose bore and wall thickness need to be developed with that installed compression in view.

Custom geometry

Custom dimensions, hardness and color allow the component to follow the pipe or cable interface.

Fit evaluation

During assembly, keep the rubber aligned and avoid trapping a folded end beneath hardware.

Color & OEM

Custom colors; identification clear of folds and end connections.

Photos illustrate structure or material appearance only. The loose bore and wall thickness need to be developed with that installed compression in view. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
