Custom manufacturing example · Black suction cups rubber silicone suction cup for industrial use

CUSTOM RUBBER & SILICONE MANUFACTURING

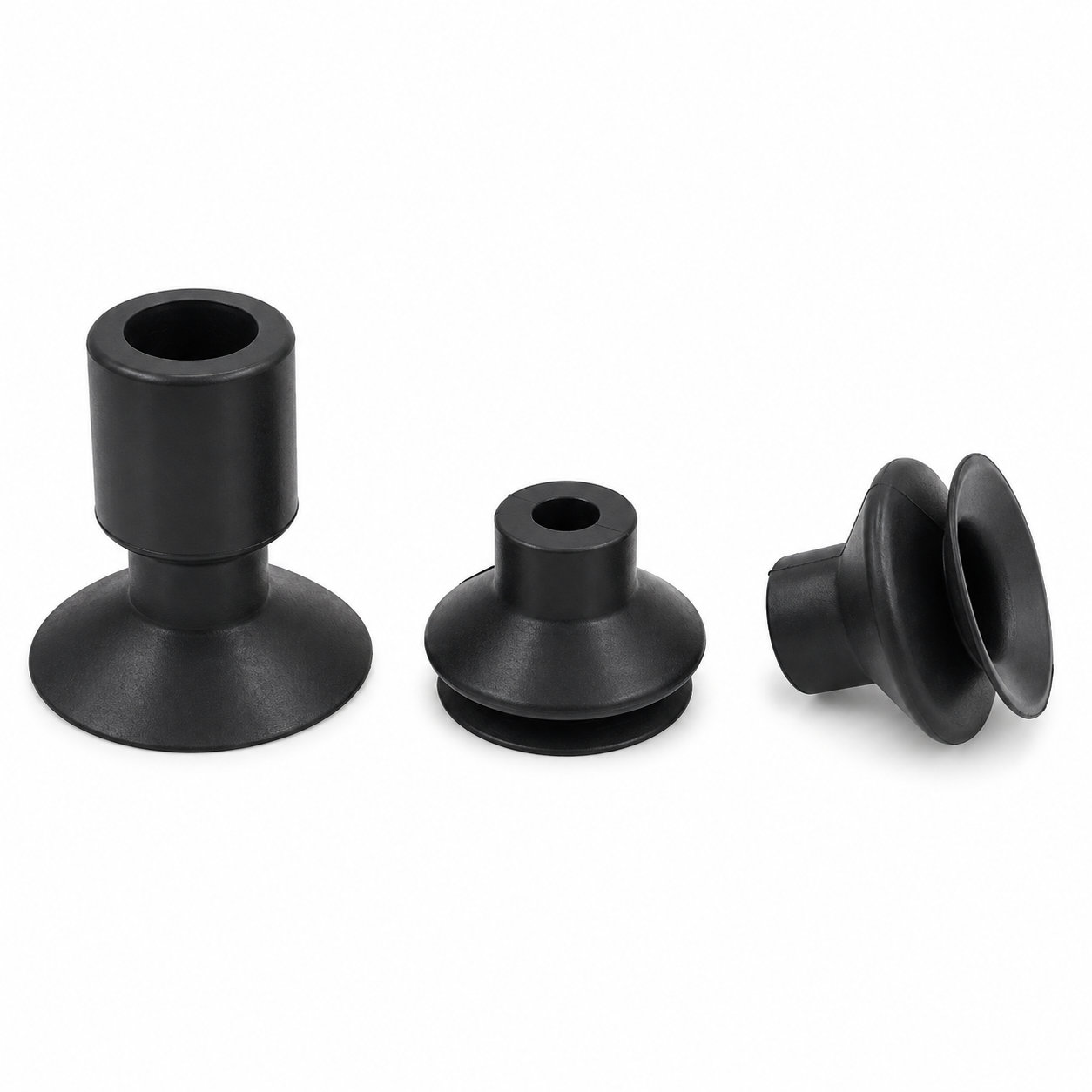

Black suction cups rubber silicone suction cup for industrial use

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

Black suction cups provide a rubber contact interface for industrial arrangements that use suction to hold against a surface. The cup size, profile and hardness can be customized, with silicone and other compounds selected according to the application. Black identifies the appearance; the required formulation and geometry determine the functional configuration.

Evaluate the surface as it will be encountered during use. A clean sample may differ from a production surface carrying dust, moisture or processing residue. The cup lip needs a continuous contact area, and small features such as a seam or shallow groove can interrupt that area. Position and approach should let the lip seat evenly without first catching one edge.

Include movement in the assessment. Holding against a stationary surface differs from a fixture that changes direction or applies a sideways force. The complete arrangement must establish the necessary holding and release behavior under those conditions. Inspect the lip for nicks and remove contamination with a method suitable for both cup and workpiece. Keep unused cups free from deformation so the contact edge retains its intended shape before installation.

Material options: Custom silicone compound; formulation and geometry developed together.
Hardness selection: Silicone options: 20–80 Shore A. Keep unused cups free from deformation so the contact edge retains its intended shape before installation.
Custom geometry: The cup size, profile and hardness can be customized, with silicone and other compounds selected according to the application.
Fit evaluation: Evaluate the surface as it will be encountered during use.
Color & OEM: Custom colors; OEM markings outside the suction contact face.

Photos illustrate structure or material appearance only. Black suction cups provide a rubber contact interface for industrial arrangements that use suction to hold against a surface. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.

DISCUSS THIS COMPONENT

Describe the part you need.

Share the fit, operating conditions and quantity with our manufacturing team.
