Custom manufacturing example · Custom made rubber material screw threaded suction cup
CUSTOM RUBBER & SILICONE MANUFACTURING
Custom made rubber material screw threaded suction cup
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview

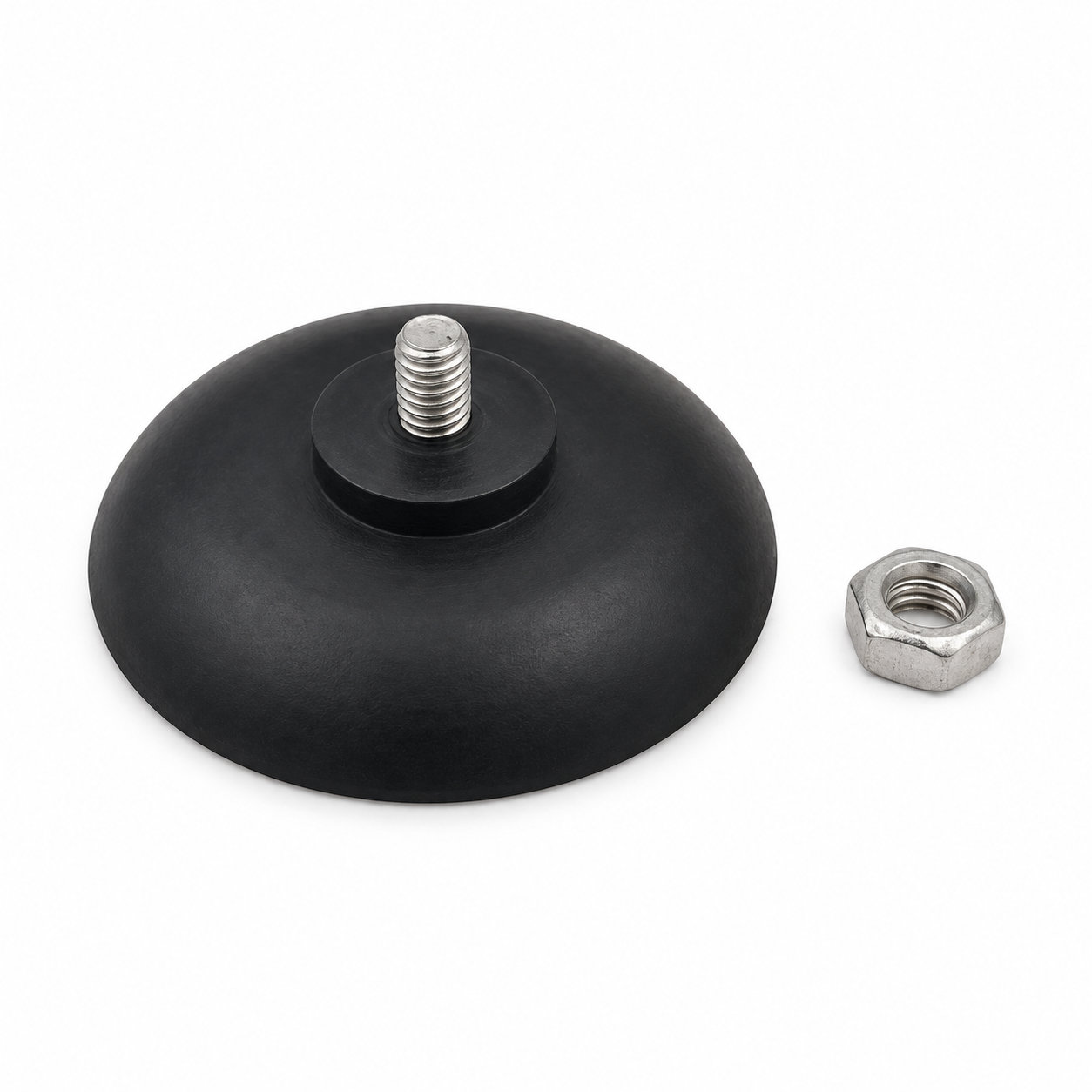

A screw threaded suction cup offers a mechanical attachment point for a custom rubber vacuum contact component. Specify the thread geometry together with the cup dimensions and working height. The mounting connection must hold the cup in the intended position while allowing its contact lip to meet the surface evenly.
Check available thread depth and clearance around the connection. A screw that reaches the end of a blind opening too early may leave the cup incorrectly positioned even though turning resistance has increased. Keep the flexible body from being twisted during fitting, and inspect its orientation once the mounting operation is complete.
Evaluate the installed cup on the actual surface with the intended vacuum arrangement. Holding depends on that complete combination, including movement and contact condition. During replacement, clean the mounting region and inspect the rubber around the attachment for damage. If the lip repeatedly contacts one side first, review alignment rather than trying to overcome the angle with additional approach force. The connection and cup face should work together as a correctly located component.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. Keep the flexible body from being twisted during fitting, and inspect its orientation once the mounting operation is complete.
- Custom geometry
- Check available thread depth and clearance around the connection.
- Fit evaluation
- Evaluate the installed cup on the actual surface with the intended vacuum arrangement.
- Color & OEM
- Custom colors; OEM markings outside the suction contact face.

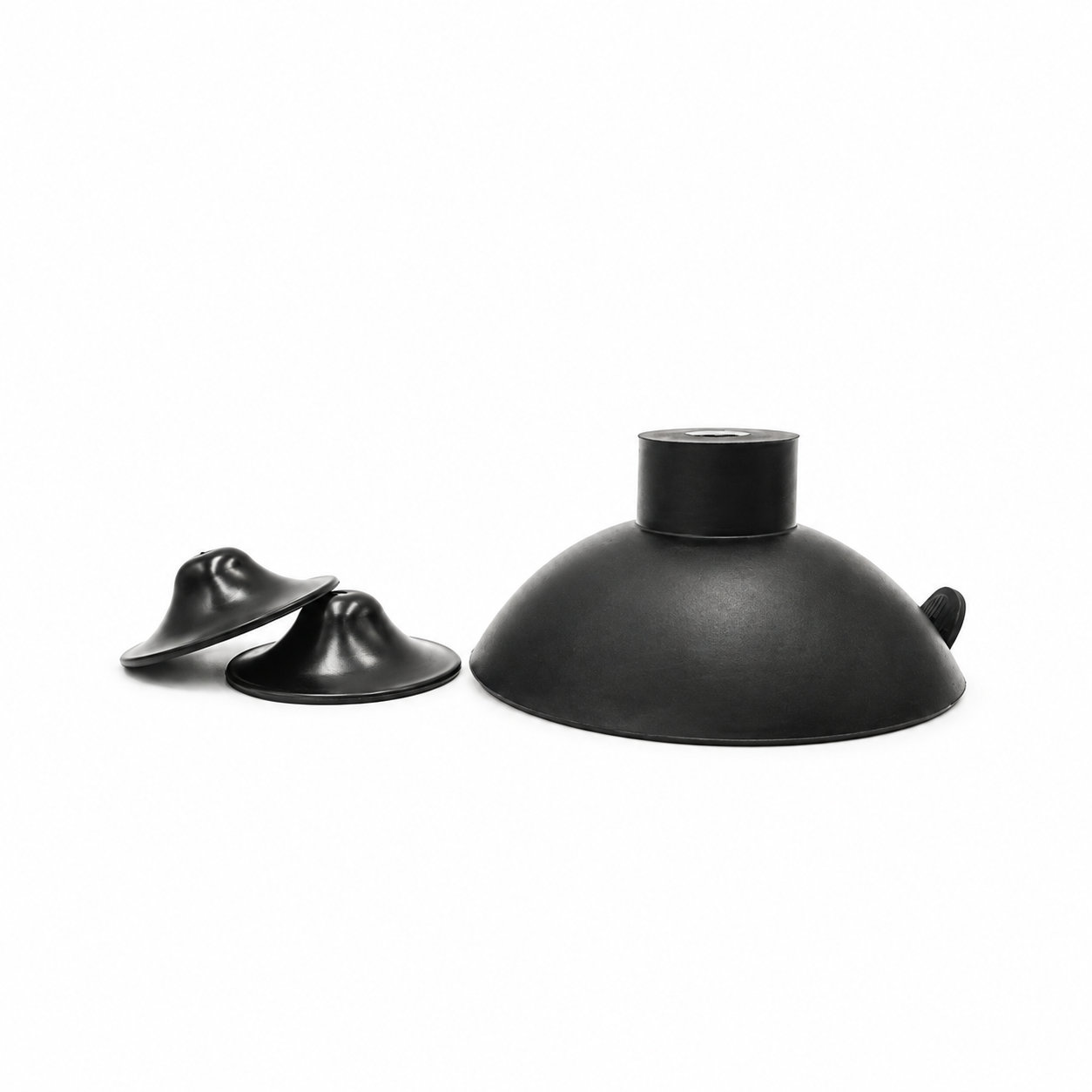

Photos illustrate structure or material appearance only. The mounting connection must hold the cup in the intended position while allowing its contact lip to meet the surface evenly. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
EXPLORE RELATED DESIGNS
Similar Products
Explore similar part structures and applications for your next project.
