Custom manufacturing example · Custom non-standard rubber parts/rubber bumper with metal sheet
CUSTOM RUBBER & SILICONE MANUFACTURING

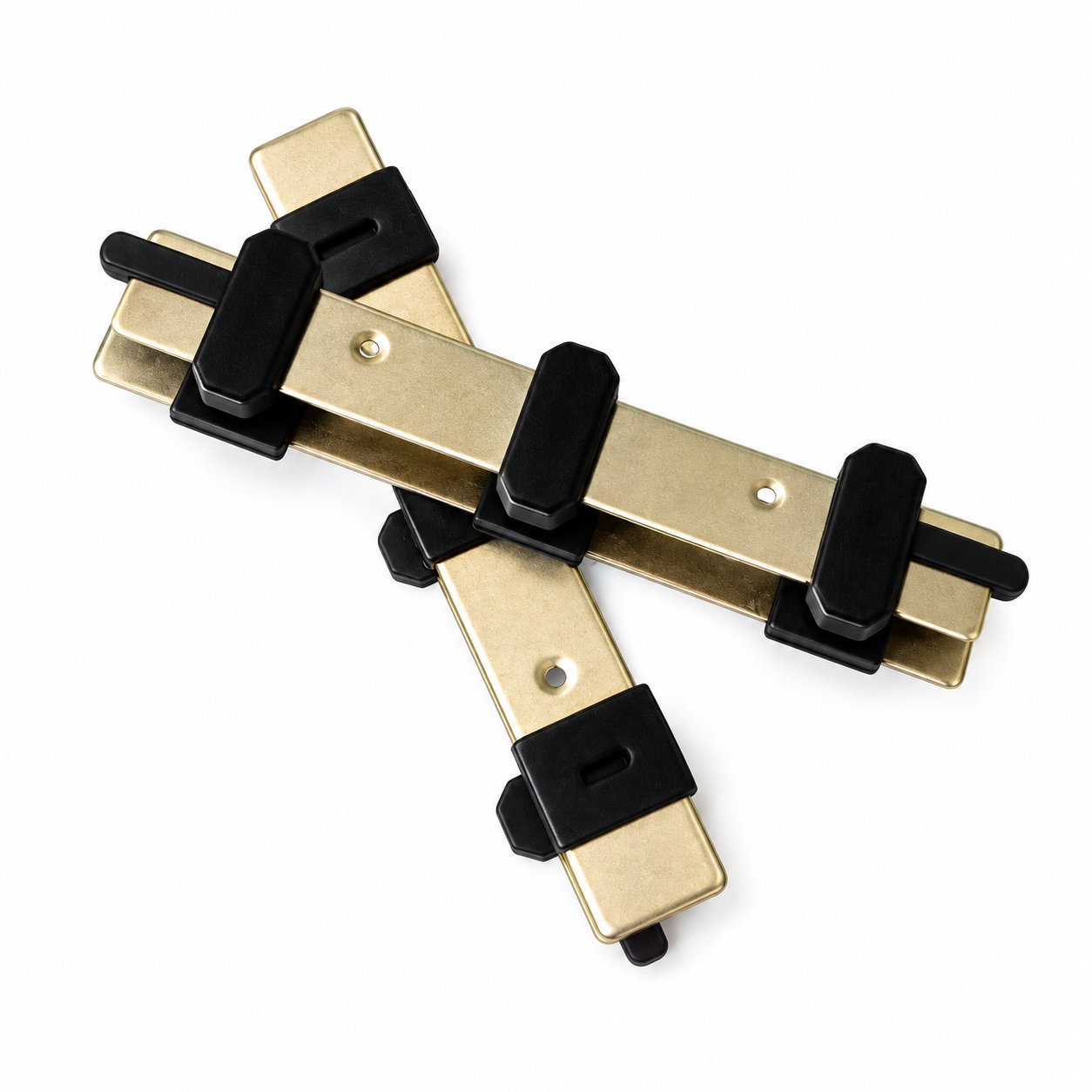

Custom non-standard rubber parts/rubber bumper with metal sheet
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A rubber bumper with metal sheet includes a rigid element within the custom mounting arrangement. The metal area and rubber working face should be developed together so that force enters the component where the design intends. Overall dimensions alone may not show how the backing is supported.
Check the attachment footprint and the part that contacts the bumper. The working face should receive the load without being struck only at an unsupported edge. Nearby hardware must leave room for the rubber's intended deformation while the metal element remains correctly located.
Choose the compound for the temperature and substances at the installation. Fit using the specified attachment method and evaluate the complete movement. During maintenance, inspect the rubber near the backing transition as well as the main contact face. Look for cuts, displacement, or changes in how the part seats. Replace with the matching metal and molded geometry rather than using a similar rubber block that changes the way the mounting surface supports it.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. Nearby hardware must leave room for the rubber's intended deformation while the metal element remains correctly located.
- Custom geometry
- Overall dimensions alone may not show how the backing is supported.
- Fit evaluation
- Fit using the specified attachment method and evaluate the complete movement.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. Overall dimensions alone may not show how the backing is supported. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
