Custom manufacturing example · Customized hot sale good quality silicone suction pump
CUSTOM RUBBER & SILICONE MANUFACTURING
Customized hot sale good quality silicone suction pump
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview

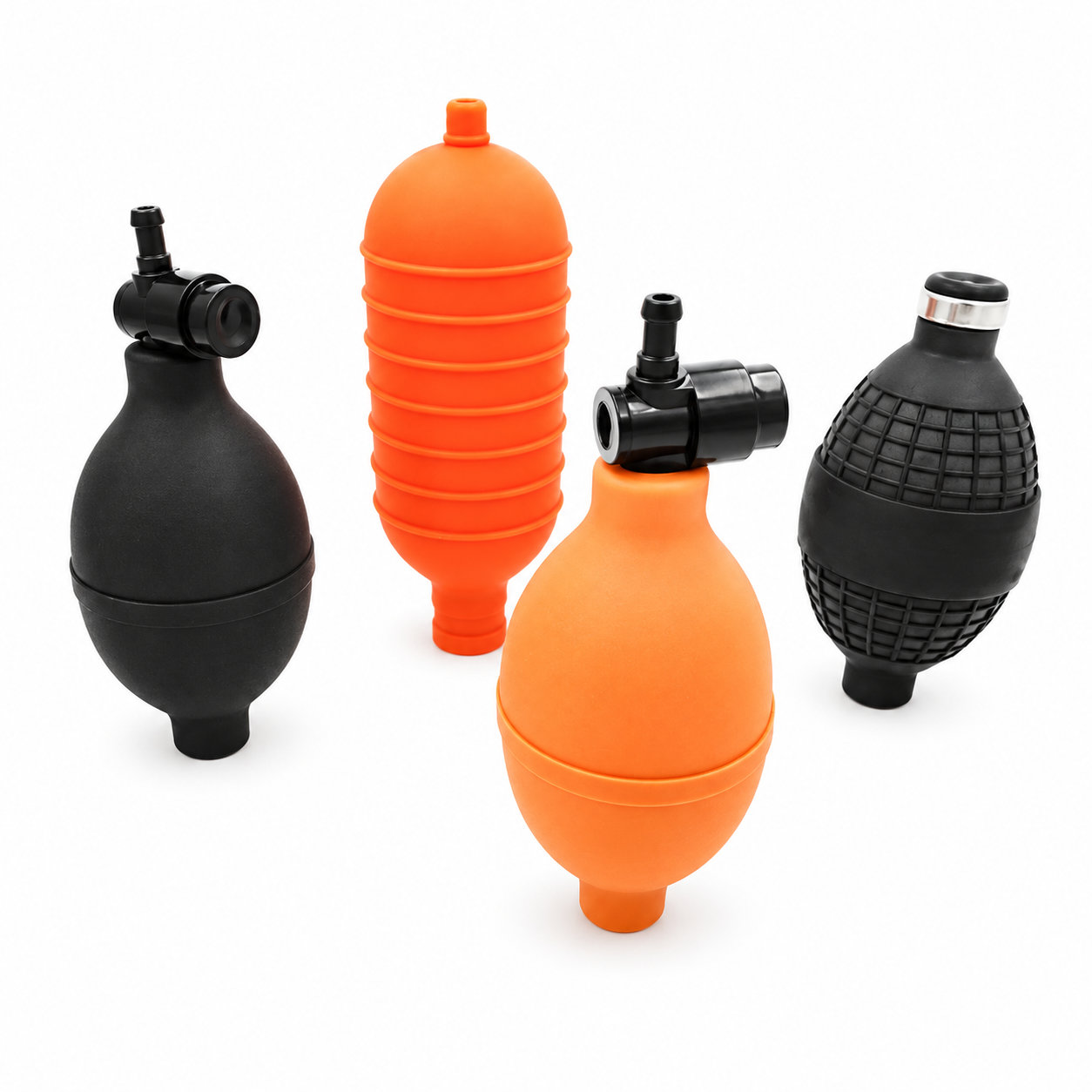

A silicone suction pump component can be customized in shape, size and color for a matching air-handling assembly. Its flexible body works with the connected fittings and valve arrangement, which establish the intended flow direction and operating behavior. The body should be evaluated as part of that complete configuration.
Start with the connection positions and the space available around the pump. A neck that is pulled sideways by tubing can deform during operation differently from one aligned with its fitting. Leave enough clearance for the body to compress or recover as designed without rubbing adjacent hardware.
Choose the silicone formulation for the actual media contact, temperature and cleaning conditions. Define the required operation at the assembly level rather than assuming every similarly shaped bulb has the same suction capability. During fitting, keep the ports clean and support the connection regions instead of stretching the body to make the tubes reach.
Inspect the pump after it has operated through its intended cycle. Look for a body that remains distorted and for damage around the necks. Restore the specified connection layout when replacing the component, since a changed valve or tubing arrangement can alter the system even when the new silicone body appears to fit.
- Material options
- Custom silicone formulation and color for the specified shape and working environment.
- Hardness range
- 20–80 Shore A for silicone. Assess the grade against this fit requirement: Leave enough clearance for the body to compress or recover as designed without rubbing adjacent hardware.
- Custom profile & fit
- Define the required operation at the assembly level rather than assuming every similarly shaped bulb has the same suction capability.
- Assembly considerations
- A neck that is pulled sideways by tubing can deform during operation differently from one aligned with its fitting.
- Design check
- Inspect the pump after it has operated through its intended cycle.
Photos illustrate structure or material only. A neck that is pulled sideways by tubing can deform during operation differently from one aligned with its fitting. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
