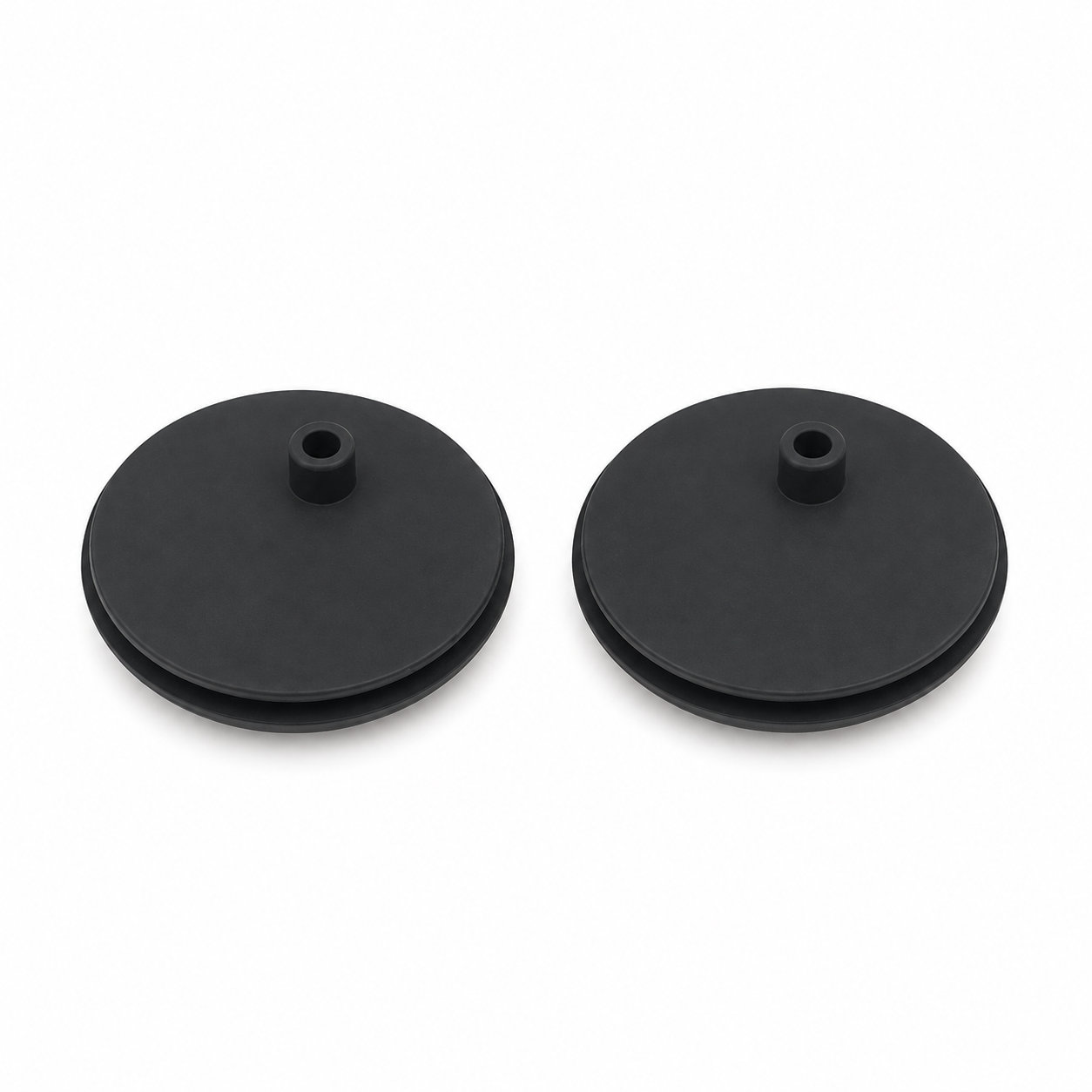

Silicone Medical Balloon, Custom Silicone Airbag Ballonet

A silicone medical balloon is a custom flexible chamber developed as a component of a medical device assembly. Its size, shape, and material configuration need to follow the intended device function. The chamber, connecting region, and surrounding space must be considered together because each affects how the component expands and returns within the assembly.

Start with the required operating form rather than only the uninflated dimensions. The available space should accommodate expansion without rubbing against an edge or forcing the chamber into an unintended fold. The connection also needs to remain properly positioned as the chamber changes shape. Evaluate the component with the actual adjoining parts and the device's intended operating conditions.

Material selection should address the substances contacting each surface and any cleaning or processing applied during manufacture and use. Those requirements depend on the finished device and cannot be inferred from the word silicone alone. The chosen construction must be evaluated for the intended contact and operating duty before it is used in a medical application.

Handle the component without sharp tools touching the flexible wall. Inspection should include the connection region and any area concealed after assembly, since damage there may be difficult to see later. The completed device must establish its operating limits and use instructions; this custom chamber does not by itself define a clinical indication or a universal pressure rating.

Material options

Silicone. Custom formulation and color for the intended contact conditions.

Hardness selection

Silicone: 20–80 Shore A. The chamber, connecting region, and surrounding space must be considered together because each affects how the component expands and returns within the assembly.

Custom dimensions

The connection also needs to remain properly positioned as the chamber changes shape.

Fit & assembly

Inspection should include the connection region and any area concealed after assembly, since damage there may be difficult to see later.

Use & inspection

Material selection should address the substances contacting each surface and any cleaning or processing applied during manufacture and use.

Photos illustrate structure or material only. The available space should accommodate expansion without rubbing against an edge or forcing the chamber into an unintended fold. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
