Custom manufacturing example · Suction cup with threaded double suction cup
CUSTOM RUBBER & SILICONE MANUFACTURING
Suction cup with threaded double suction cup
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A custom double suction cup should be developed around the intended relationship between its suction contacts and mounting arrangement. Where a threaded connection is used, the mating hardware needs to hold the assembly in the required orientation without twisting the rubber or obstructing contact with the target surface.
Material, dimensions, hardness and color can be customized. Define the spacing and approach of the contact areas using the actual surfaces they will meet. The complete lip geometry needs to seat as intended; two contact areas do not automatically provide twice the holding performance of one.
Evaluate the full assembly through its required handling and release sequence. Surface finish, alignment and the available vacuum or attachment arrangement determine the useful result together with the cup design. A load rating cannot be inferred from the double configuration alone.
During fitting, inspect the threaded interface and the orientation of each contact area. Keep the lips free of residue using a compatible cleaning method. If one area releases earlier or wears differently, review the local surface and mounting alignment before replacing the component. Preserve the selected contact spacing and thread configuration as well as the rubber material in any replacement.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. During fitting, inspect the threaded interface and the orientation of each contact area.
- Custom geometry
- The complete lip geometry needs to seat as intended; two contact areas do not automatically provide twice the holding performance of one.
- Fit evaluation
- Evaluate the full assembly through its required handling and release sequence.
- Color & OEM
- Custom colors; OEM markings outside the suction contact face.

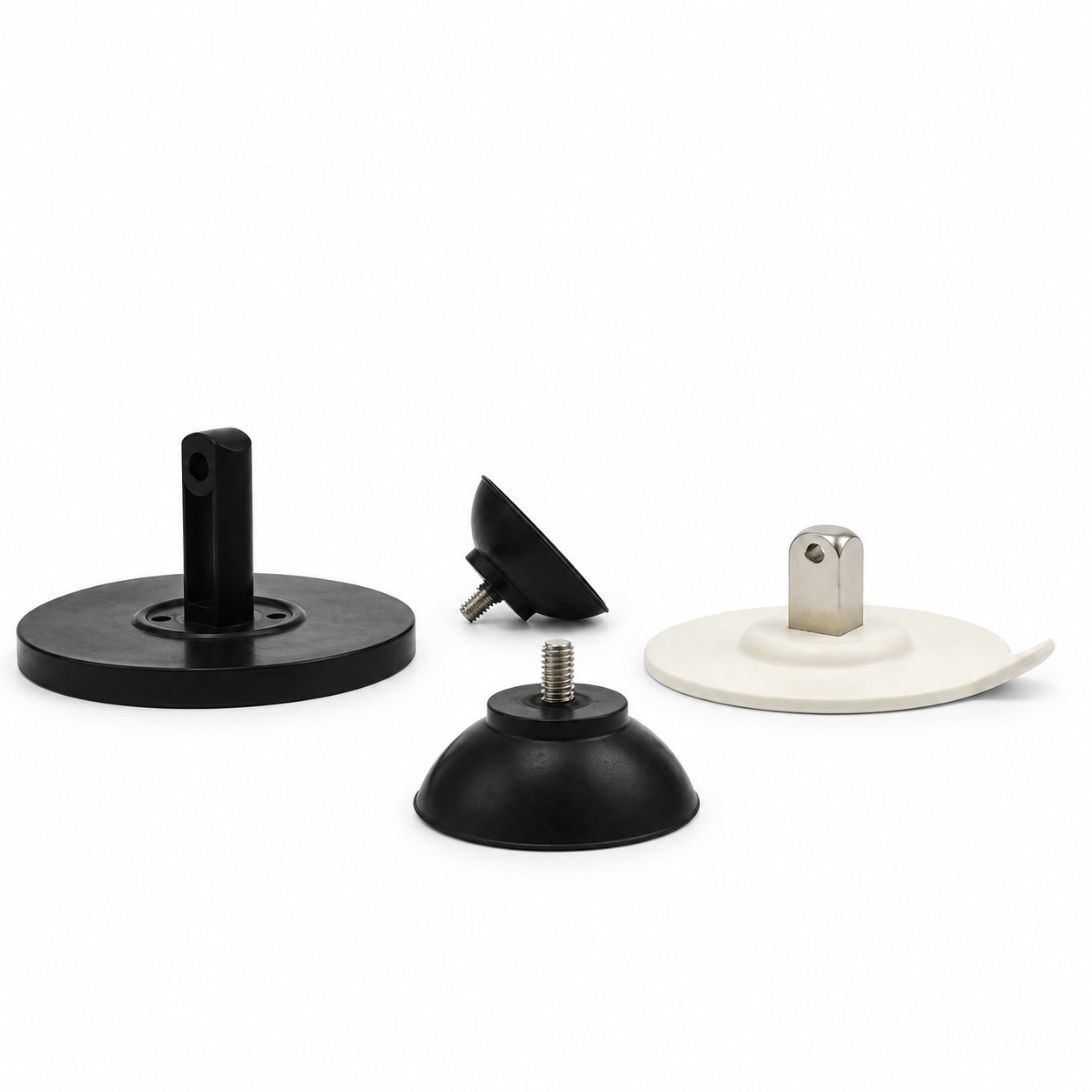

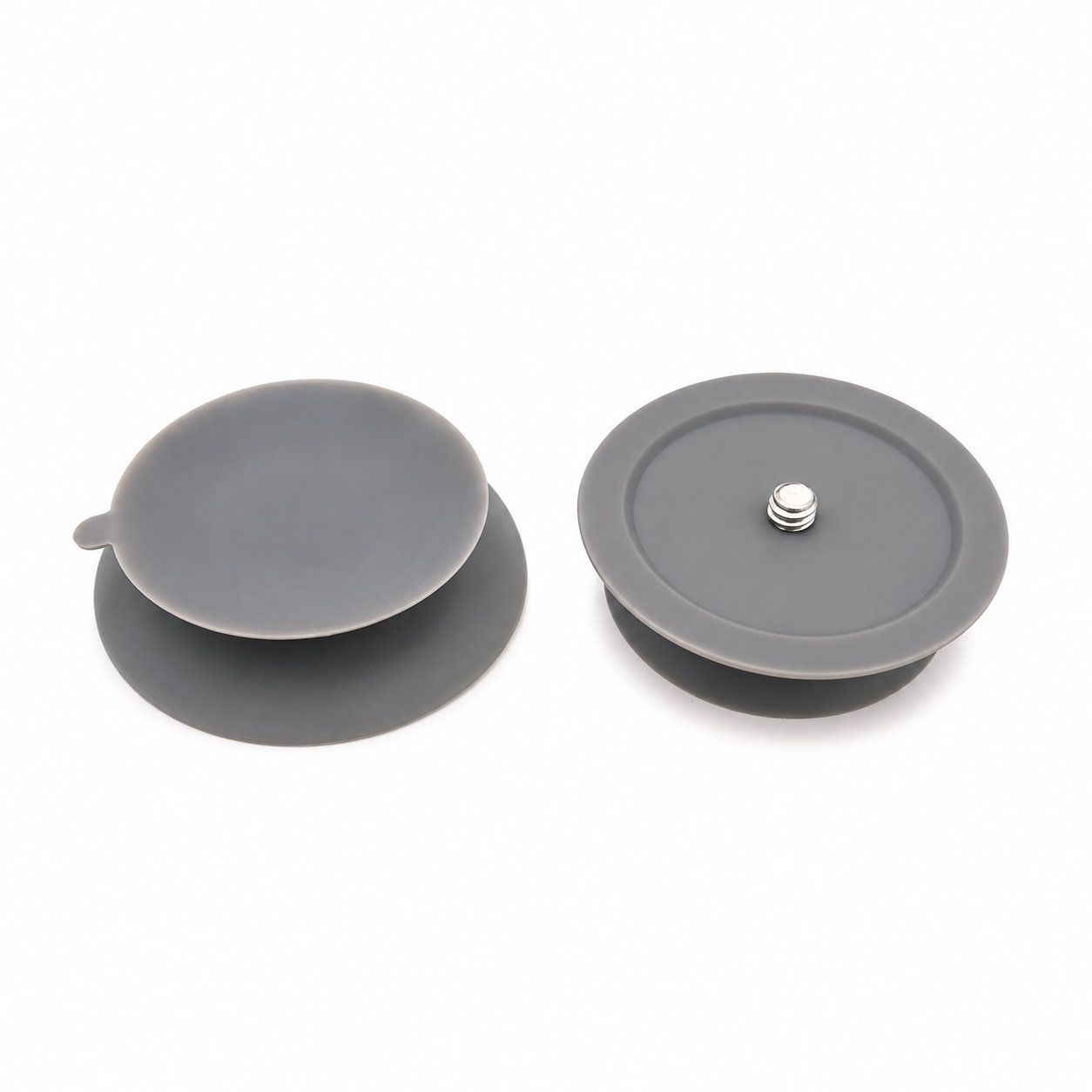

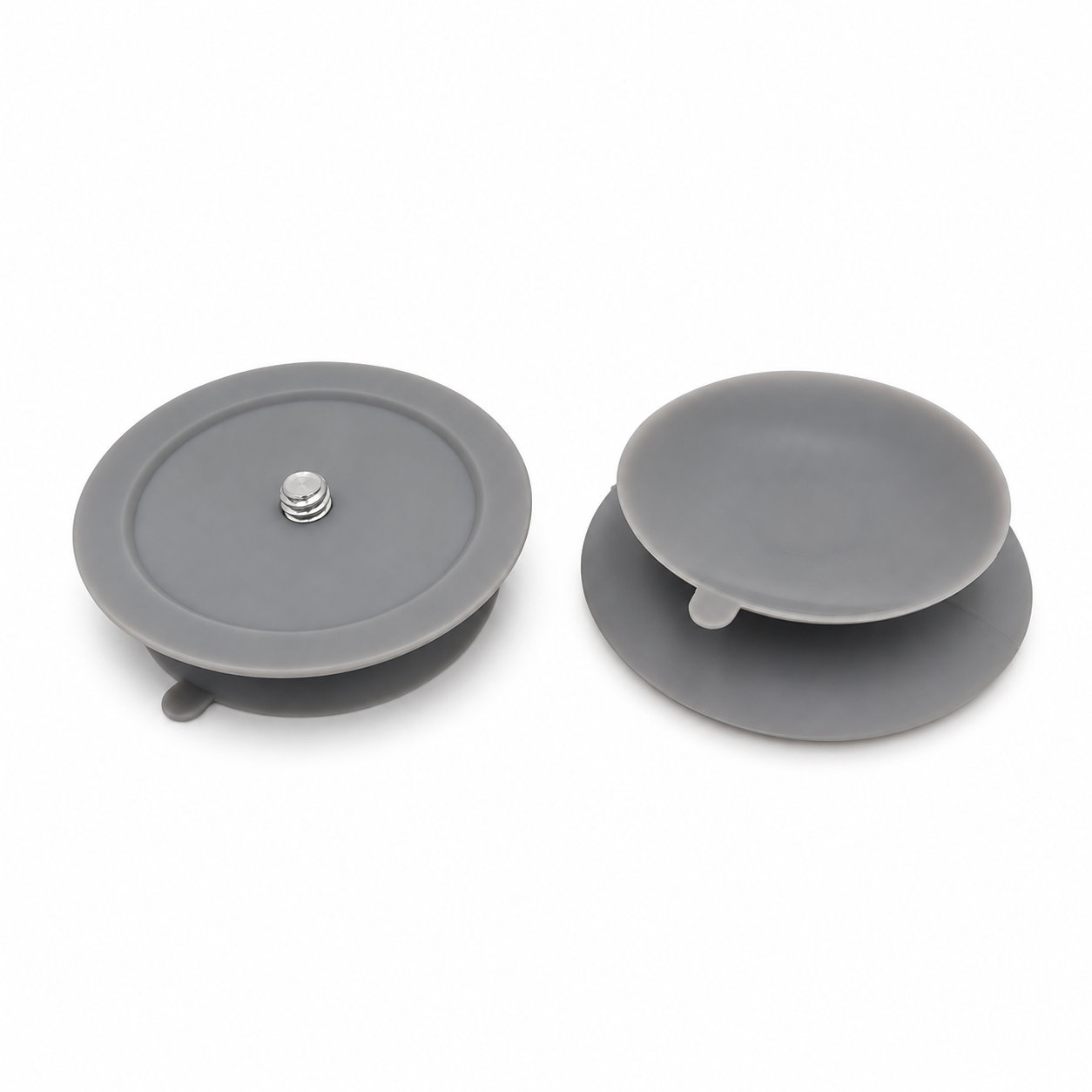

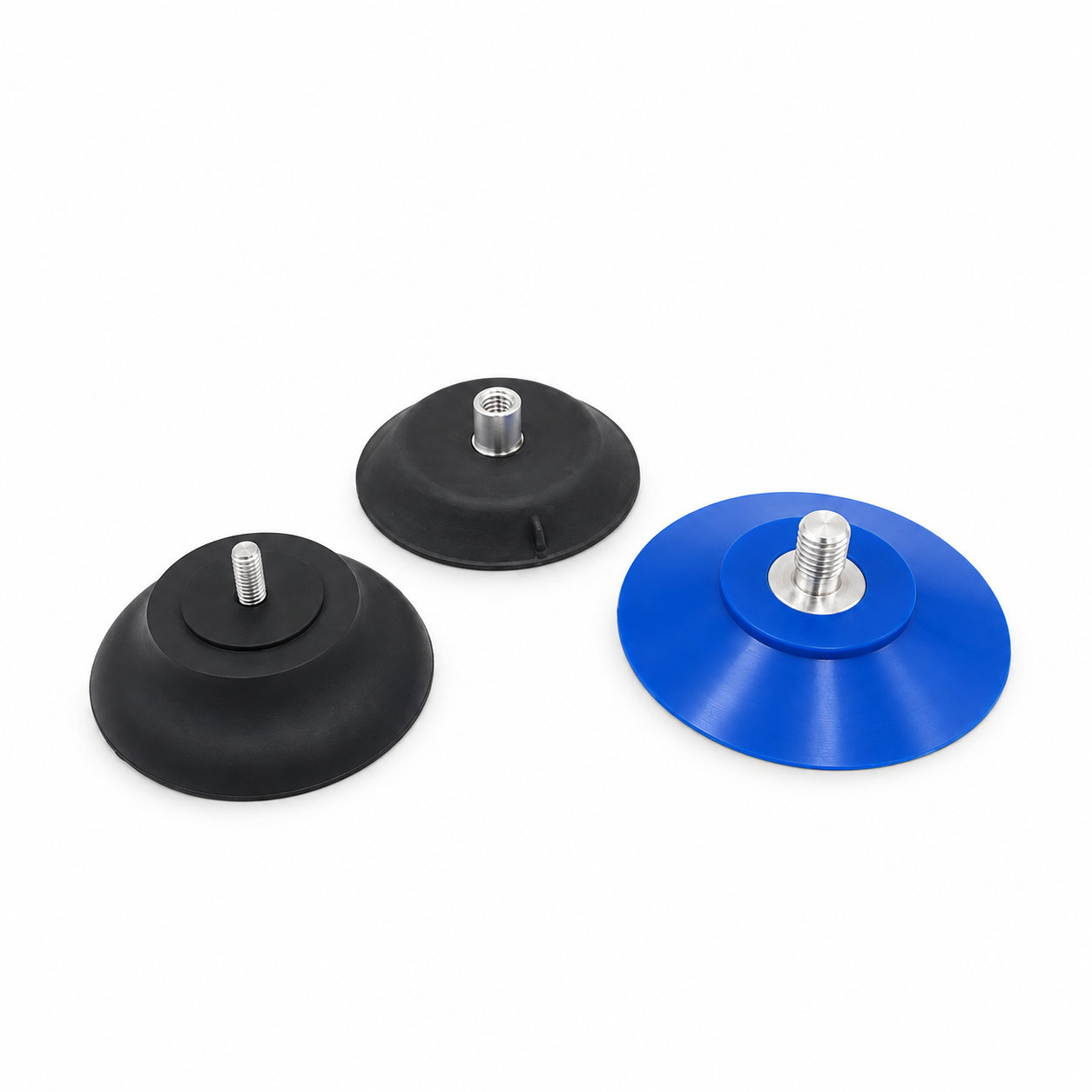

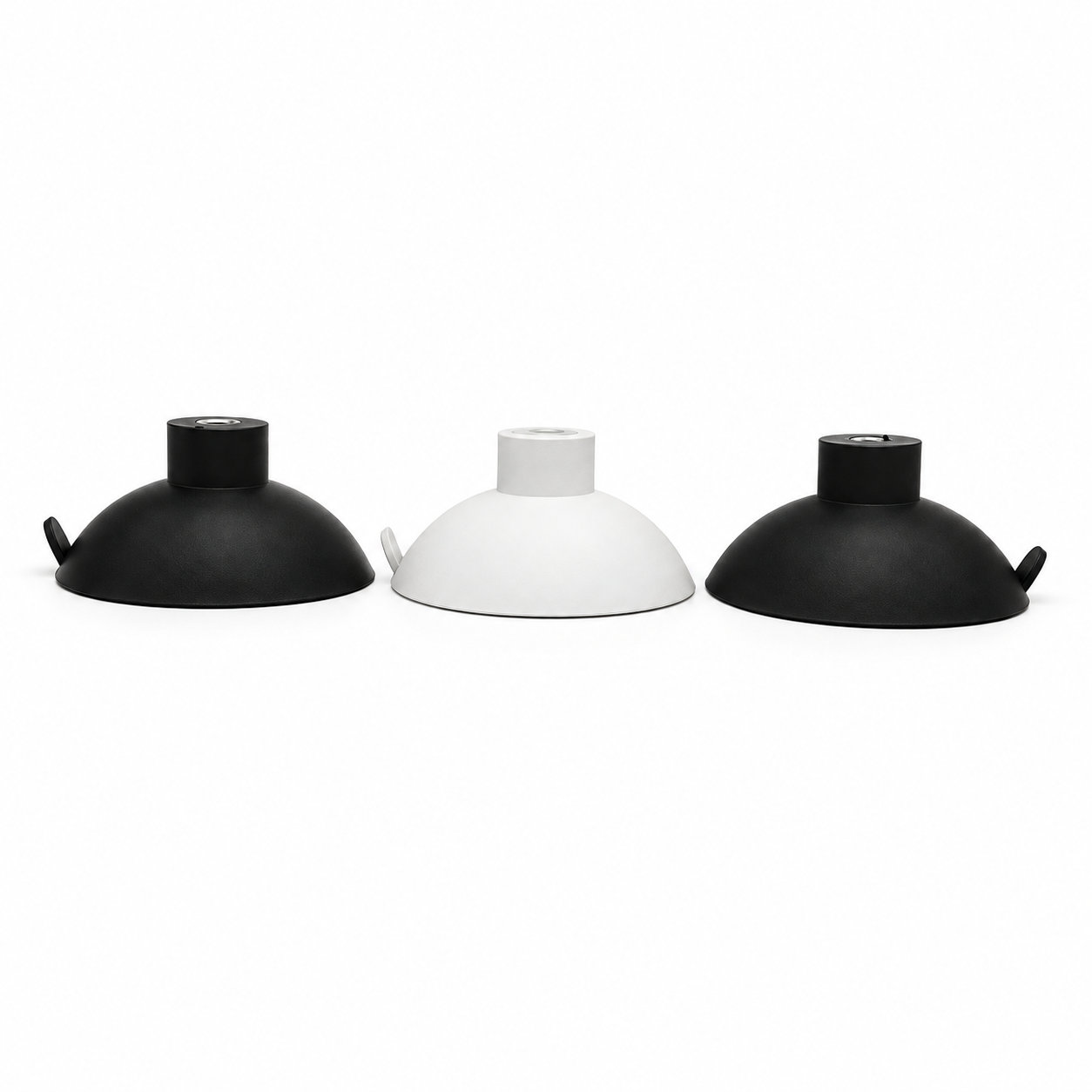

Photos illustrate structure or material appearance only. The complete lip geometry needs to seat as intended; two contact areas do not automatically provide twice the holding performance of one. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
EXPLORE RELATED DESIGNS
Similar Products
Explore similar part structures and applications for your next project.
