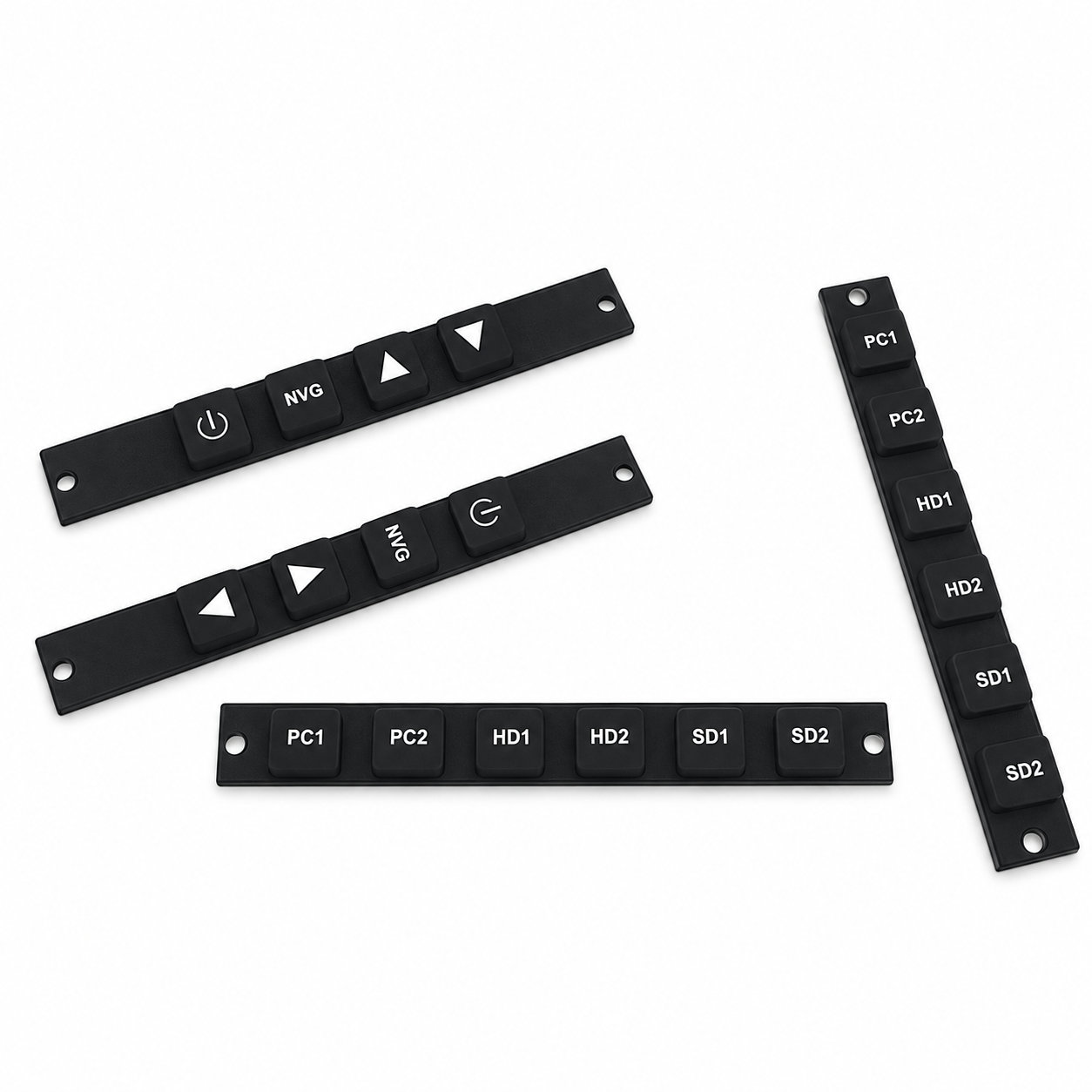

Custom Made Electronic Silicone Keypad Buttons Conductive

Electronic silicone keypad buttons provide the flexible front surface of a custom control interface. In a conductive arrangement, the underside contact positions must line up with the circuit while the visible keys remain correctly located in the housing. The layout can be customized for the required functions and panel space.

Plan the markings alongside the electrical mapping. Printed, embossed, debossed, or color-filled legends can identify functions, but each needs to correspond to the contact it operates. Locating features and a clear orientation help avoid fitting a similar-looking keypad in the wrong direction during assembly.

Check the interface with the case fully secured. Every key needs room to move and return without a housing edge rubbing against it or a neighboring key responding unintentionally. Keep the contact side free of dirt and oily fingerprints while handling the component. A functional check should include the controls at the edges of the layout, where clamping or limited clearance can influence movement differently from the keys in the center.

Material options

Silicone. Custom formulation and color for the intended contact conditions.

Hardness selection

Silicone: 20–80 Shore A. Every key needs room to move and return without a housing edge rubbing against it or a neighboring key responding unintentionally.

Custom dimensions

In a conductive arrangement, the underside contact positions must line up with the circuit while the visible keys remain correctly located in the housing.

Fit & assembly

A functional check should include the controls at the edges of the layout, where clamping or limited clearance can influence movement differently from the keys in the center.

Use & inspection

Printed, embossed, debossed, or color-filled legends can identify functions, but each needs to correspond to the contact it operates.

Photos illustrate structure or material only. Every key needs room to move and return without a housing edge rubbing against it or a neighboring key responding unintentionally. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
