Custom manufacturing example · Factory direct customized rubber flat square gaskets cheap price
CUSTOM RUBBER & SILICONE MANUFACTURING

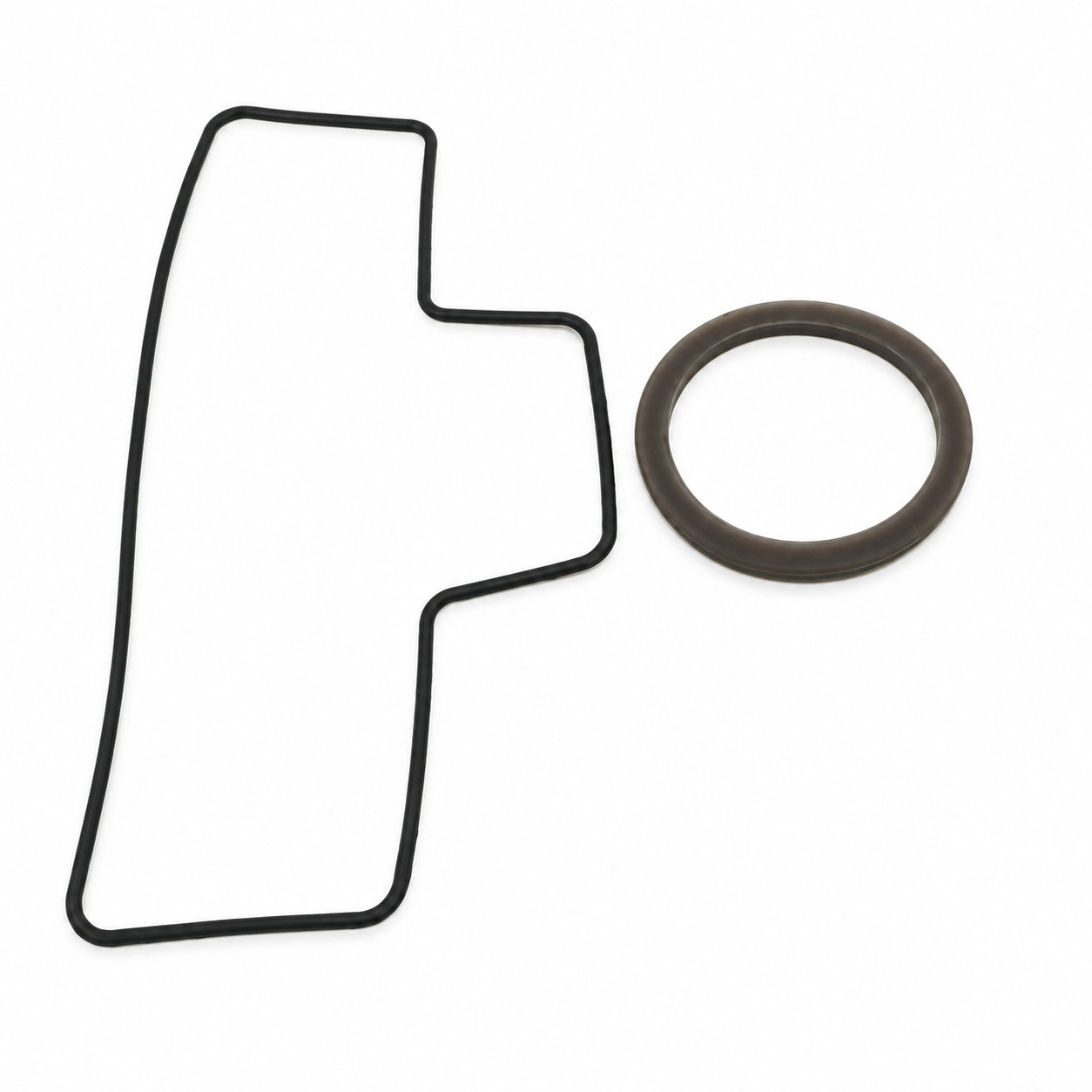

Factory direct customized rubber flat square gaskets cheap price
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
Rubber flat square gaskets should have an outline and thickness matched to the joint's supported sealing area. Corners and straight edges may experience different compression if the mating components are not flat or the closing force is uneven. The custom geometry should follow the actual receiving surfaces.
Material, dimensions, hardness and color options allow the gasket to match the application. Define the internal opening and outer boundary so neither leaves an unsupported edge in the working joint. Select the compound for the medium and operating environment.
Before installation, inspect both mating faces and keep them clear of residue. Position the gasket without stretching or wrinkling it, then close the joint through the intended sequence. Evaluate sealing under representative conditions. During maintenance, compare the imprint at the corners with the marks along the sides. A locally flattened or extruded section can identify an alignment or support issue. Correct the receiving condition before simply increasing thickness, which may create additional distortion if the available space is unchanged.
- Material options
- Rubber. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. Corners and straight edges may experience different compression if the mating components are not flat or the closing force is uneven.
- Custom dimensions
- Rubber flat square gaskets should have an outline and thickness matched to the joint's supported sealing area.
- Fit & assembly
- Position the gasket without stretching or wrinkling it, then close the joint through the intended sequence.
- Use & inspection
- Before installation, inspect both mating faces and keep them clear of residue.
Photos illustrate structure or material only. Rubber flat square gaskets should have an outline and thickness matched to the joint's supported sealing area. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
