Custom manufacturing example · FDA approved silicone seal o ring gasket for jar lids
CUSTOM RUBBER & SILICONE MANUFACTURING

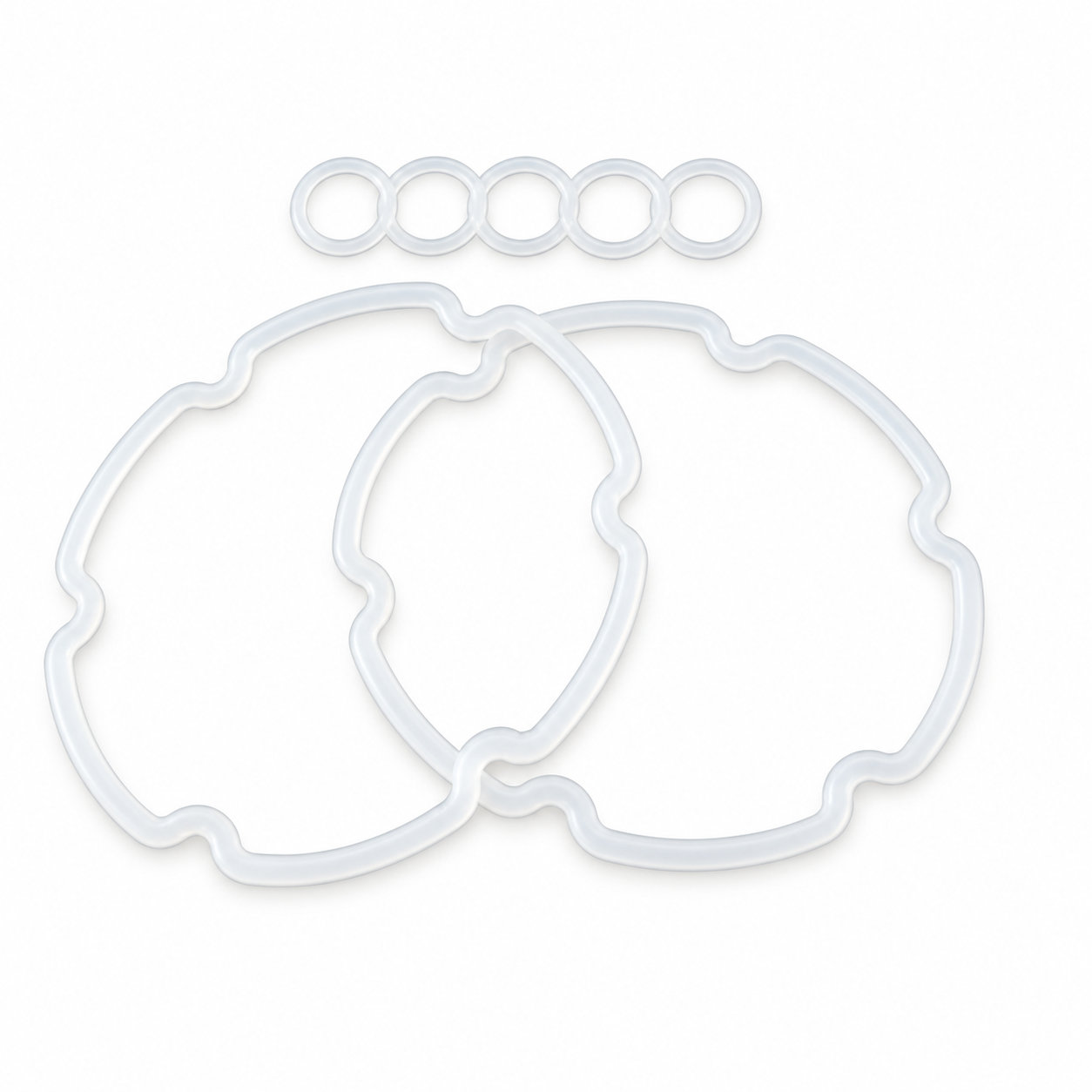

FDA approved silicone seal o ring gasket for jar lids
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A silicone seal o ring gasket for jar lids should sit on a clean, continuous contact path. Residue beneath one small section can hold the ring above its seat and change the way the lid closes around the remaining circumference.
ETOL supports custom dimensions, material and color. Select the formulation for the contents and processing conditions of the intended container. Compare the actual lid and jar rim, including the available assembled space, rather than choosing solely by the ring's external diameter.
Remove deposits from both mating surfaces before positioning the gasket. Keep it relaxed and inspect for twisting as the lid is applied. Evaluate the completed closure for its specified function. During cleaning or any permitted reuse, inspect the underside of the ring and the hidden seat rather than only wiping the exposed edge. Replace cuts or permanent deformation and review the closing path if the gasket repeatedly shifts. Do not use an additional layer to conceal a damaged seat or a profile that no longer matches the jar.
- Material options
- Silicone. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Silicone: 20–80 Shore A. Select the lid-ring compression with a clean, continuous seat; trapped residue can lift one section and alter contact around the circumference.
- Custom dimensions
- Do not use an additional layer to conceal a damaged seat or a profile that no longer matches the jar.
- Fit & assembly
- Residue beneath one small section can hold the ring above its seat and change the way the lid closes around the remaining circumference.
- Use & inspection
- During cleaning or any permitted reuse, inspect the underside of the ring and the hidden seat rather than only wiping the exposed edge.
Photos illustrate structure or material only. The jar rim and lid seat together define the space available for the ring around the full closing path. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
