Custom manufacturing example · Flange rubber gasket/square thick washer for Exhaust System
CUSTOM RUBBER & SILICONE MANUFACTURING

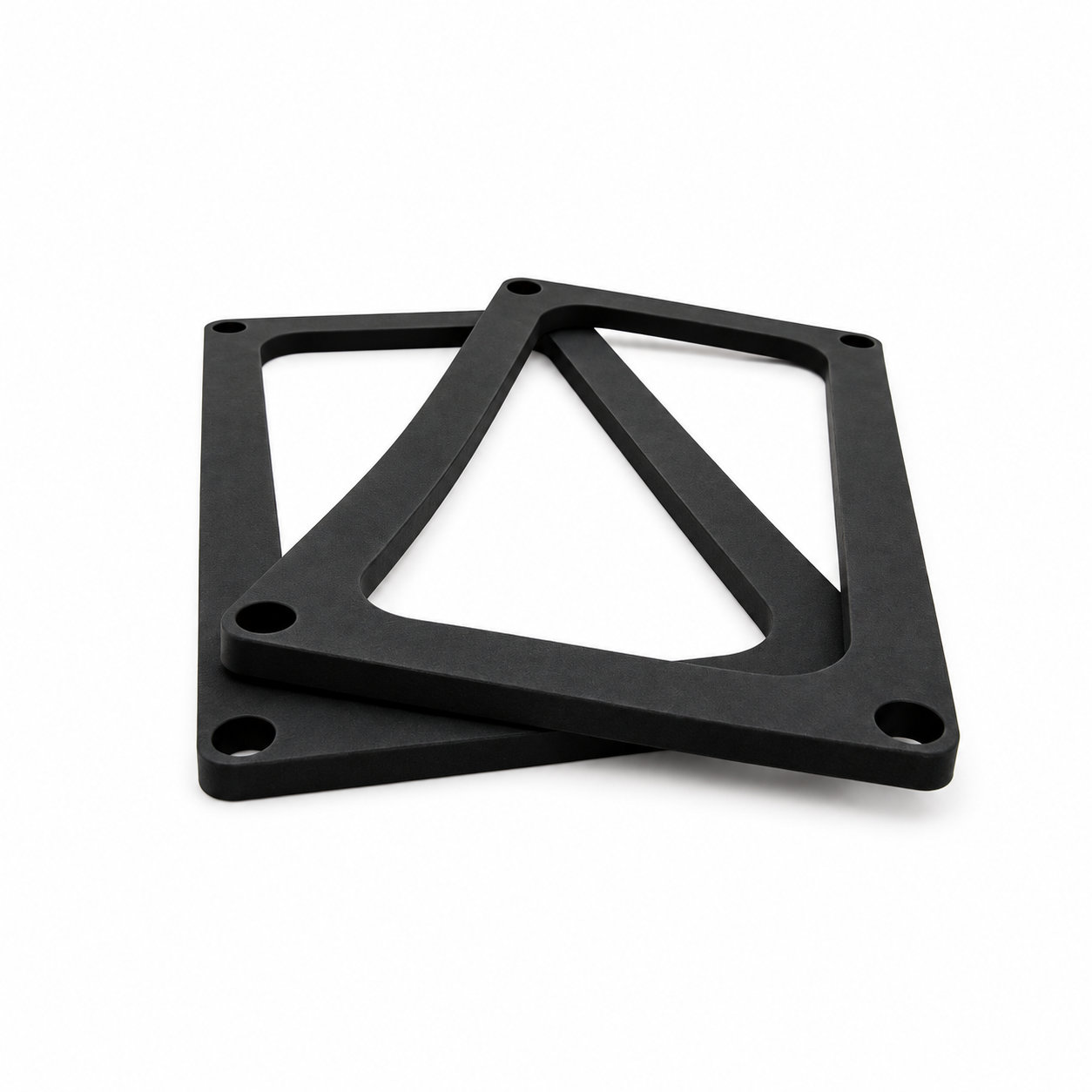

Flange rubber gasket/square thick washer for Exhaust System
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A square thick washer for an exhaust-system assembly must be selected for the specific location and its actual contact conditions. The custom outline and section can follow the mating components, while the rubber formulation needs to suit the temperature and substances at that position. A general exhaust application does not make a rubber washer suitable for every hot-gas joint.
Identify whether the component belongs at a support, an external interface, or another defined position in the assembly. That role determines the required material and the way the washer is loaded. Preserve the specified use rather than substituting the part into a different connection based only on its shape.
Compare side lengths, center opening, corner geometry, and thickness with the intended seat. The washer should remain supported as the assembly closes, without obstructing fastener engagement or adjacent hardware. Use the equipment's prescribed installation procedure and operating limits.
During maintenance, inspect the contact faces and look for recurring deformation in the rubber. A replacement needs the correct formulation and complete profile. Do not compensate for an unsuitable material or damaged mating surface by adding more thickness, since that changes the assembled geometry without establishing suitability for the service.
- Material options
- Rubber. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. That role determines the required material and the way the washer is loaded.
- Custom dimensions
- The custom outline and section can follow the mating components, while the rubber formulation needs to suit the temperature and substances at that position.
- Fit & assembly
- Identify whether the component belongs at a support, an external interface, or another defined position in the assembly.
- Use & inspection
- Do not compensate for an unsuitable material or damaged mating surface by adding more thickness, since that changes the assembled geometry without establishing suitability for the service.
Photos illustrate structure or material only. A square thick washer for an exhaust-system assembly must be selected for the specific location and its actual contact conditions. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
