Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Heat-resistant EPDM rubber washer/Buna-N rubber gasket
CUSTOM RUBBER & SILICONE MANUFACTURING
Heat-resistant EPDM rubber washer/Buna-N rubber gasket
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
An EPDM rubber washer and a Buna-N gasket may share similar dimensions while serving different material requirements. This custom offering allows the profile to follow the joint, with compound selection based on the actual temperature and substances present. Neither material should be treated as a universal substitute for the other.
Consider the operating cycle and the cleaning process. A seal may encounter one medium during use and another during maintenance, while heat can reach it through the mating surfaces. Select the formulation with those conditions in mind before finalizing hardness and thickness.
Measure the supported contact area and the closing gap to define the washer section. Install it flat without stretching the center opening, and use the assembly's intended closing arrangement. During servicing, inspect the ring and seat together for uneven compression, cuts, or material changes. Keep replacement variants identified by compound as well as dimensions so that a visually similar ring is not installed at a location with different exposure conditions.
- Material options
- EPDM. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. Install it flat without stretching the center opening, and use the assembly's intended closing arrangement.
- Custom dimensions
- An EPDM rubber washer and a Buna-N gasket may share similar dimensions while serving different material requirements.
- Fit & assembly
- Measure the supported contact area and the closing gap to define the washer section.
- Use & inspection
- During servicing, inspect the ring and seat together for uneven compression, cuts, or material changes.

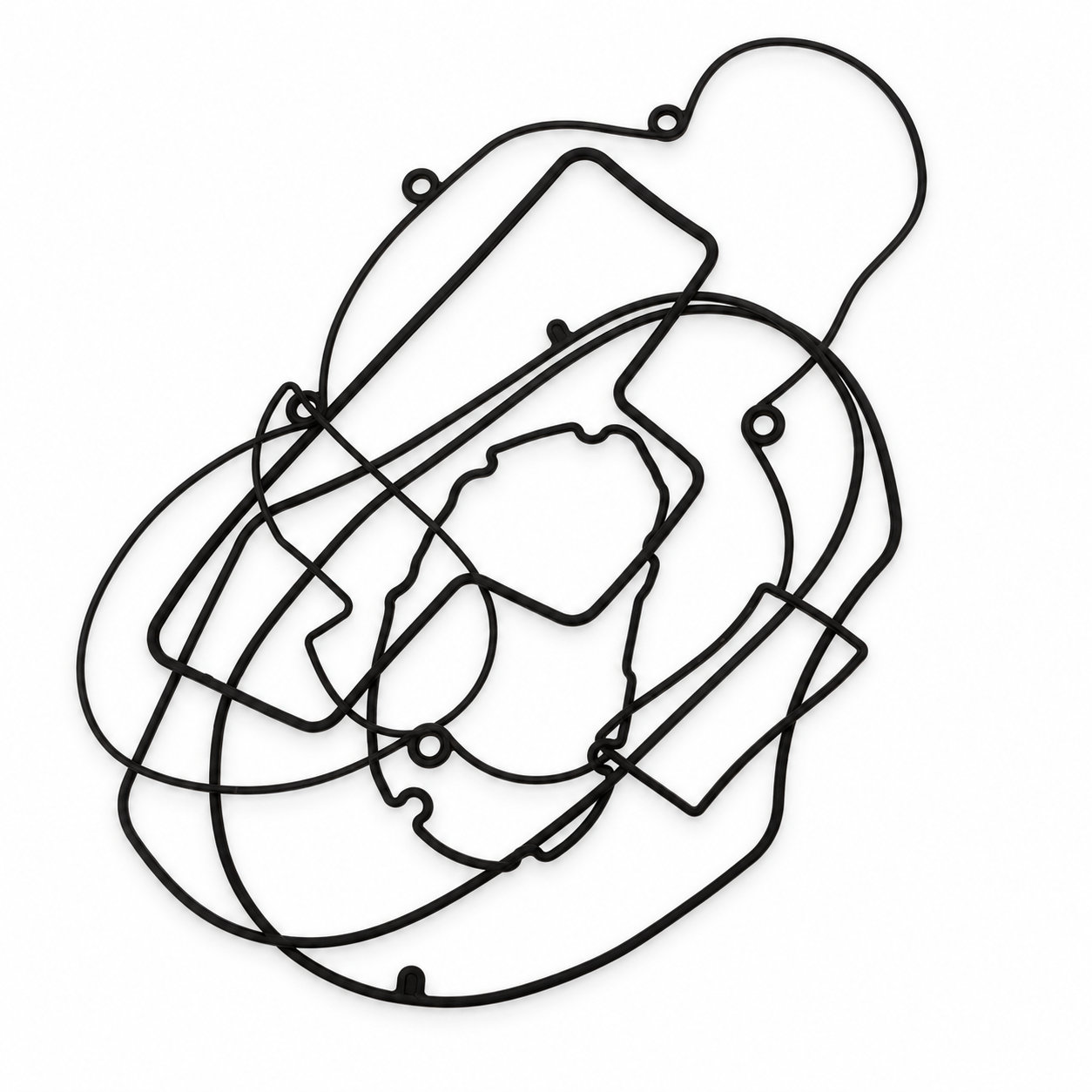

Photos illustrate structure or material only. EPDM and Buna-N washer options may share dimensions while serving different exposure conditions. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
