Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · High quality molded rubber gasket/heat-resistant rubber washer
CUSTOM RUBBER & SILICONE MANUFACTURING
High quality molded rubber gasket/heat-resistant rubber washer
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A heat-resistant rubber washer needs a temperature requirement based on its contact location. Nearby metal can carry heat into the washer even when the surrounding air is cooler. A brief hot contact and a prolonged warm condition also create different exposure histories for the selected compound.
Identify the parts touching each face and consider when they are hottest during the operating cycle. The washer may continue receiving heat after another part of the equipment has stopped. Include that condition when evaluating the custom material and section in the real connection. No universal temperature limit follows from the phrase heat resistant.
The mating components should retain the intended contact as their temperature changes. Check the completed joint through its specified cycle instead of assessing only its room-temperature fit. After the assembly has cooled according to its service procedure, compare any local change in the washer with the adjacent heat path. Damage concentrated on one face can provide a different clue from deformation around the whole circumference. Preserve the evaluated material when replacing the part.
- Material options
- Rubber. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. Damage concentrated on one face can provide a different clue from deformation around the whole circumference.
- Custom dimensions
- Include that condition when evaluating the custom material and section in the real connection.
- Fit & assembly
- Check the completed joint through its specified cycle instead of assessing only its room-temperature fit.
- Use & inspection
- After the assembly has cooled according to its service procedure, compare any local change in the washer with the adjacent heat path.

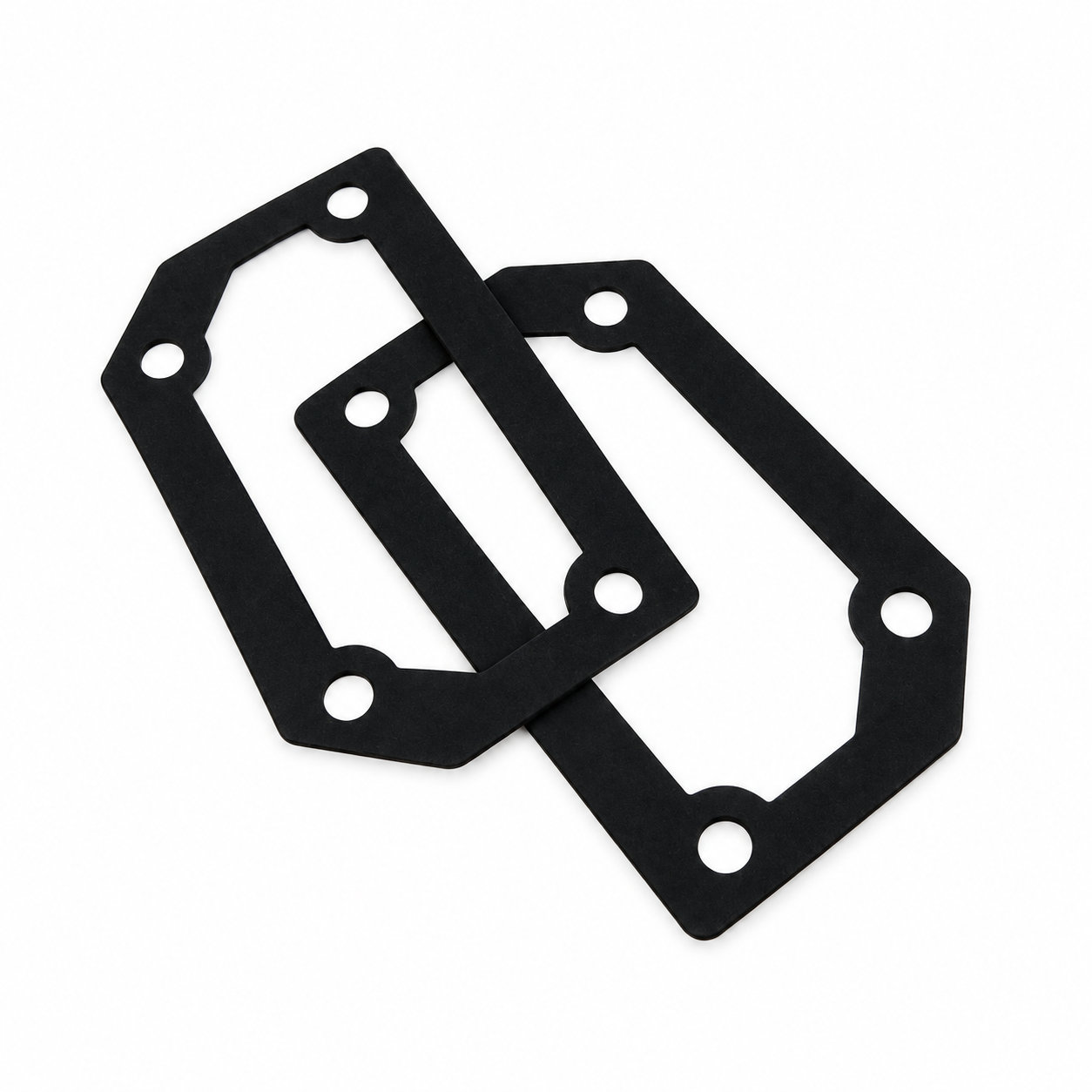

Photos illustrate structure or material only. A heat-resistant rubber washer needs a temperature requirement based on its contact location. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
