Custom manufacturing example · High quality rubber silicone damper/small rubber mount with screw
CUSTOM RUBBER & SILICONE MANUFACTURING
High quality rubber silicone damper/small rubber mount with screw
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A small rubber mount with screw attachment needs enough space for the thread to engage without interfering with components behind the receiving surface. The screw length, available depth and rubber working height should be defined together. A thread that fits can still be too long for the assembled product.
Custom silicone or other rubber materials, dimensions and color options allow the mount to follow the device. Define the load direction and how the hardware is tightened. The rubber body should not be used as an uncontrolled grip for twisting the attachment into place.
Evaluate the completed mounting with the actual surrounding parts installed. Check rear clearance and inspect whether fastening has compressed or distorted the rubber beyond its developed position. During operation, the supported component should retain its intended movement space. During maintenance, examine the threaded connection for loosening and the rubber for permanent lean or extrusion. Repeated damage near the screw may indicate an installation or load alignment issue that should be corrected before another identical mount is fitted.
- Material options
- Custom silicone or rubber formulation, with dimensions and color adapted to the mating component.
- Hardness range
- Silicone: 20–80 Shore A; rubber: 30–90 Shore A. Assess the grade against this fit requirement: Define the load direction and how the hardware is tightened.
- Custom profile & fit
- The screw length, available depth and rubber working height should be defined together.
- Assembly considerations
- Repeated damage near the screw may indicate an installation or load alignment issue that should be corrected before another identical mount is fitted.
- Design check
- Check rear clearance and inspect whether fastening has compressed or distorted the rubber beyond its developed position.
Photos illustrate structure or material only. The screw length, available depth and rubber working height should be defined together. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
FIND THE RIGHT FIT
Rubber Feet Size Catalog
Choose hemispherical, tapered or recessed rubber feet and compare the mounting dimensions. All values are in millimeters. Use the drawing labels for each product; a dash marks a dimension not supplied in the source.
Recessed Rubber Feet
12 sizes for recessed rubber feet, including flat and rounded bases. The Base column identifies the lower-edge style. C is recess depth; the appearance rendering shows a rounded-base example.
DIMENSION GUIDE
PRODUCT APPEARANCE
| P/N | OD | H | A | B | C | Base | Unit |
|---|---|---|---|---|---|---|---|
| RBB7810 | 19 | 7.2 | 4.8 | 9.6 | 3.2 | Flat | mm |
| RBB7809 | 19 | 9.5 | 3.17 | 9.5 | 4 | Flat | mm |
| RBB7811 | 24 | 11 | 6 | 12 | 6 | Flat | mm |
| RBB7812 | 26.5 | 13 | 4.7 | 9.5 | 5 | Flat | mm |
| RBB7813 | 37 | 15 | 6 | 12 | 8 | Flat | mm |
| RBB7818 | 12.7 | 6.35 | 3.1 | 6.35 | 4 | Rounded | mm |
| RBB7817 | 26.5 | 21 | 4.7 | 9.5 | 11 | Rounded | mm |
| RBB7819 | 38 | 38 | 6 | 19 | 9.5 | Rounded | mm |
| RBB7820 | 38 | 38 | 6.5 | 19.5 | 9.5 | Rounded | mm |
| RBB7821 | 41 | 18 | 8.3 | 9.5 | 6 | Rounded | mm |
| RBB2101 | 12.7 | 9.53 | 3.97 | 7.94 | 4 | Rounded | mm |
| RBB2102 | 15 | 4 | 3 | 6 | 2 | Rounded | mm |
Tapered Rubber Feet
83 sizes for tapered rubber feet. C is recess depth and D is bottom outside diameter. A dash means that dimension was not supplied; match all available dimensions before selecting a size.
DIMENSION GUIDE
PRODUCT APPEARANCE
| P/N | OD | H | A | B | C | D | Unit |
|---|---|---|---|---|---|---|---|
| RBA7801 | 12 | 7 | 3 | 6 | 5.4 | — | mm |
| RBA7826 | 15.88 | 12.7 | 3.97 | 7.94 | 6.35 | — | mm |
| RBA7827 | 19.05 | 14.29 | 4.76 | 9.53 | 6.35 | — | mm |
| RBA7828 | 22.23 | 12.7 | 4.76 | 9.53 | 10.32 | — | mm |
| RBA7829 | 23.81 | 15.88 | 5.56 | 11.11 | 11.11 | — | mm |
| RBA7802 | 24 | 16 | 6 | 12 | 8 | — | mm |
| RBA7803 | 25 | 15 | 4 | 6 | 6 | — | mm |
| RBA7830 | 26.99 | 21.43 | 4.76 | 9.53 | 11.11 | — | mm |
| RBA7805 | 34 | 19 | 4.5 | 9 | 9 | — | mm |
| RBA7808 | 38 | 22.5 | 5 | 12 | 13 | — | mm |
| RBA7806 | 38 | 24 | 5 | 12 | 13 | — | mm |
| RBA7807 | 38 | 30 | 5.5 | 12 | 19 | — | mm |
| RBA1001 | 10.5 | 4 | 3 | 6 | — | 9 | mm |
| RBA1002 | 11 | 6 | 3 | 6 | — | 9 | mm |
| RBA1005 | 12 | 9 | 3 | 6 | — | 8 | mm |
Hemispherical Rubber Bumpers
5 sizes with a curved outer profile and recessed mounting hole. C is the recess depth.
DIMENSION GUIDE
PRODUCT APPEARANCE
| P/N | OD | H | A | B | C | Unit |
|---|---|---|---|---|---|---|
| RBD7822 | 15 | 4.5 | 3.75 | 6.7 | 2 | mm |
| RBD7823 | 23.7 | 10 | 4 | 7 | 7 | mm |
| RBD7825 | 30 | 12 | 8 | 10 | 6 | mm |
| RBD7824 | 30 | 16 | 8 | 10 | 10 | mm |
| RBD4105 | 41 | 18 | 8.3 | 9.5 | 6 | mm |
Can't find the right size? Contact us for custom dimensions tailored to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
EXPLORE RELATED DESIGNS
Similar Products
Explore similar part structures and applications for your next project.

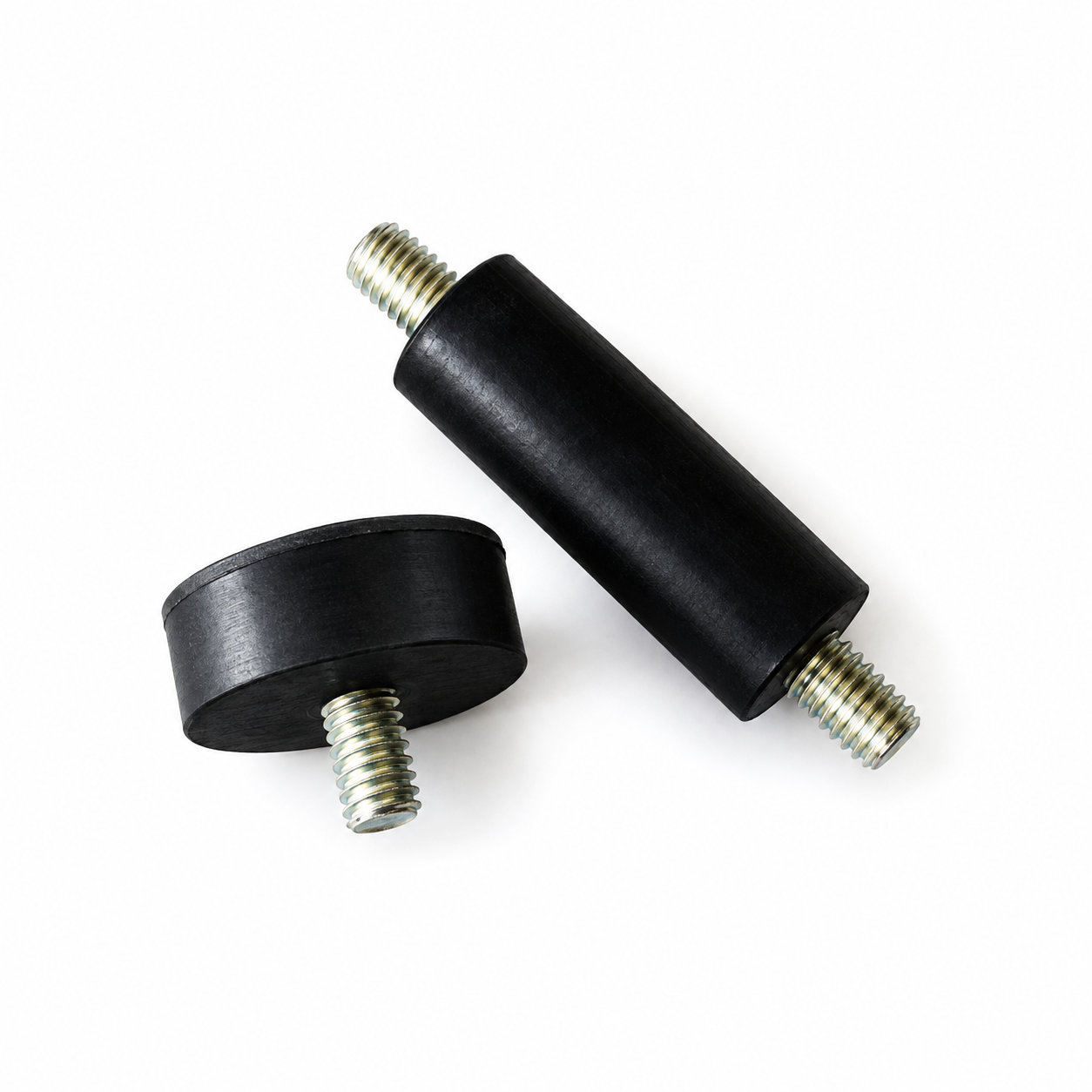

Molded silicone rubber parts/rubber damper with M8 screw
