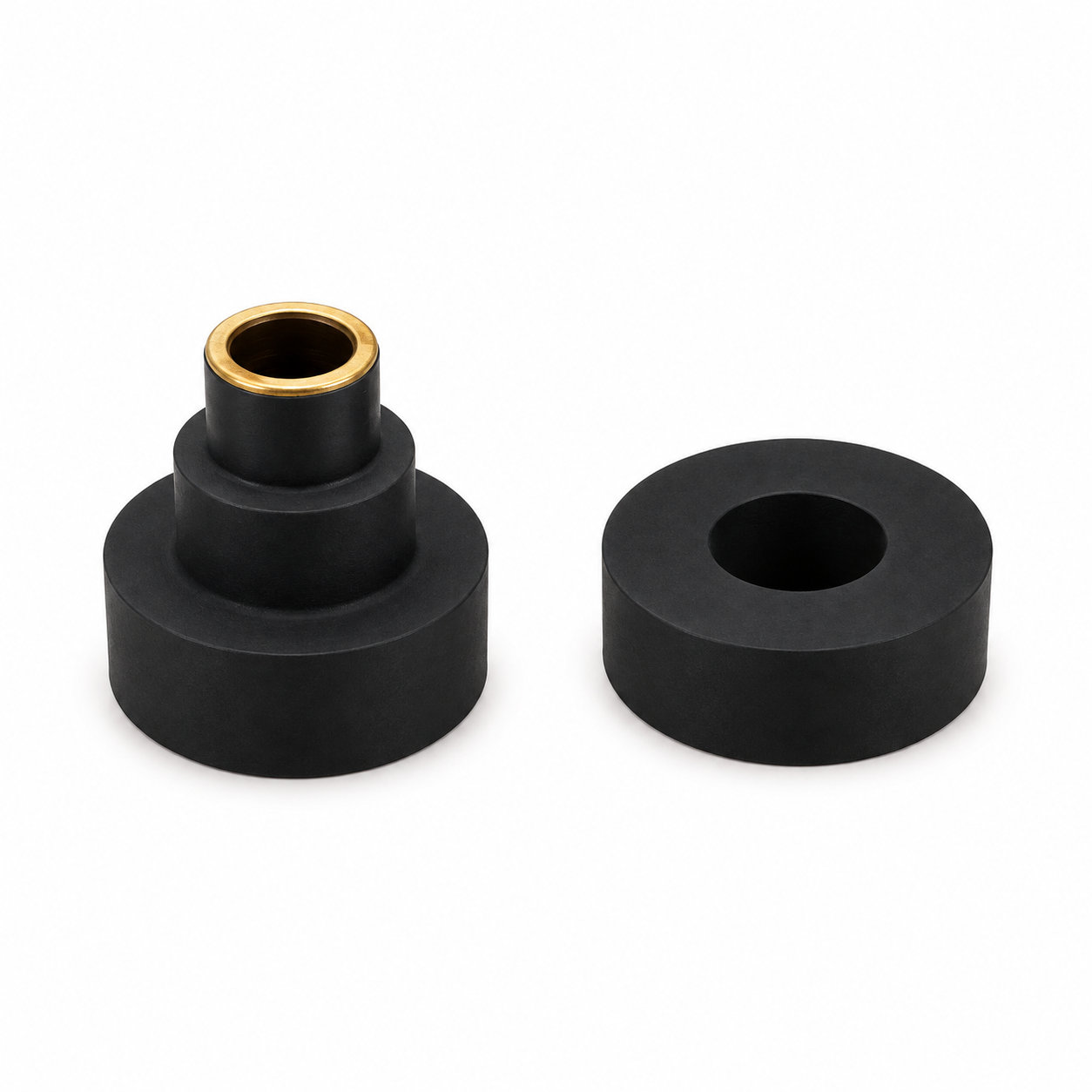

Rubber Anti Vibration Mounting, Shock Absorber

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

Rubber anti vibration mounting components can be customized around equipment support points and the movement they experience. Select the geometry and finished compound for the intended load direction and environment. The mounting arrangement should leave room for the rubber to work without introducing unintended contact between rigid parts.

Assess the complete equipment during relevant operating conditions, including startup or stopping where these change the movement. A mount that appears correctly positioned at rest may approach a neighboring bracket during operation. Check alignment at its attachments and the space around the flexible region.

Material hardness should be selected with the profile and working conditions rather than used as a direct measure of isolation. During maintenance, inspect for persistent compression, cuts and movement at the support. A replacement should preserve the intended working height and attachment geometry. If one position repeatedly shows damage, review the load distribution and clearance before changing the rubber alone. The equipment and mount together determine the resulting vibration and shock behavior.

Material options: Rubber compound options, customized alongside the profile and contact conditions.
Hardness selection: Solid rubber options: 30–90 Shore A. Check alignment at its attachments and the space around the flexible region.
Custom geometry: If one position repeatedly shows damage, review the load distribution and clearance before changing the rubber alone.
Fit evaluation: A mount that appears correctly positioned at rest may approach a neighboring bracket during operation.
Color & OEM: Custom colors; part identification clear of mounting seats and loaded faces.

Photos illustrate structure or material appearance only. Rubber Anti Vibration Mounting components can be customized around equipment support points and the movement they experience. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
