Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Rubber vibration damper mounting shock absorber
CUSTOM RUBBER & SILICONE MANUFACTURING

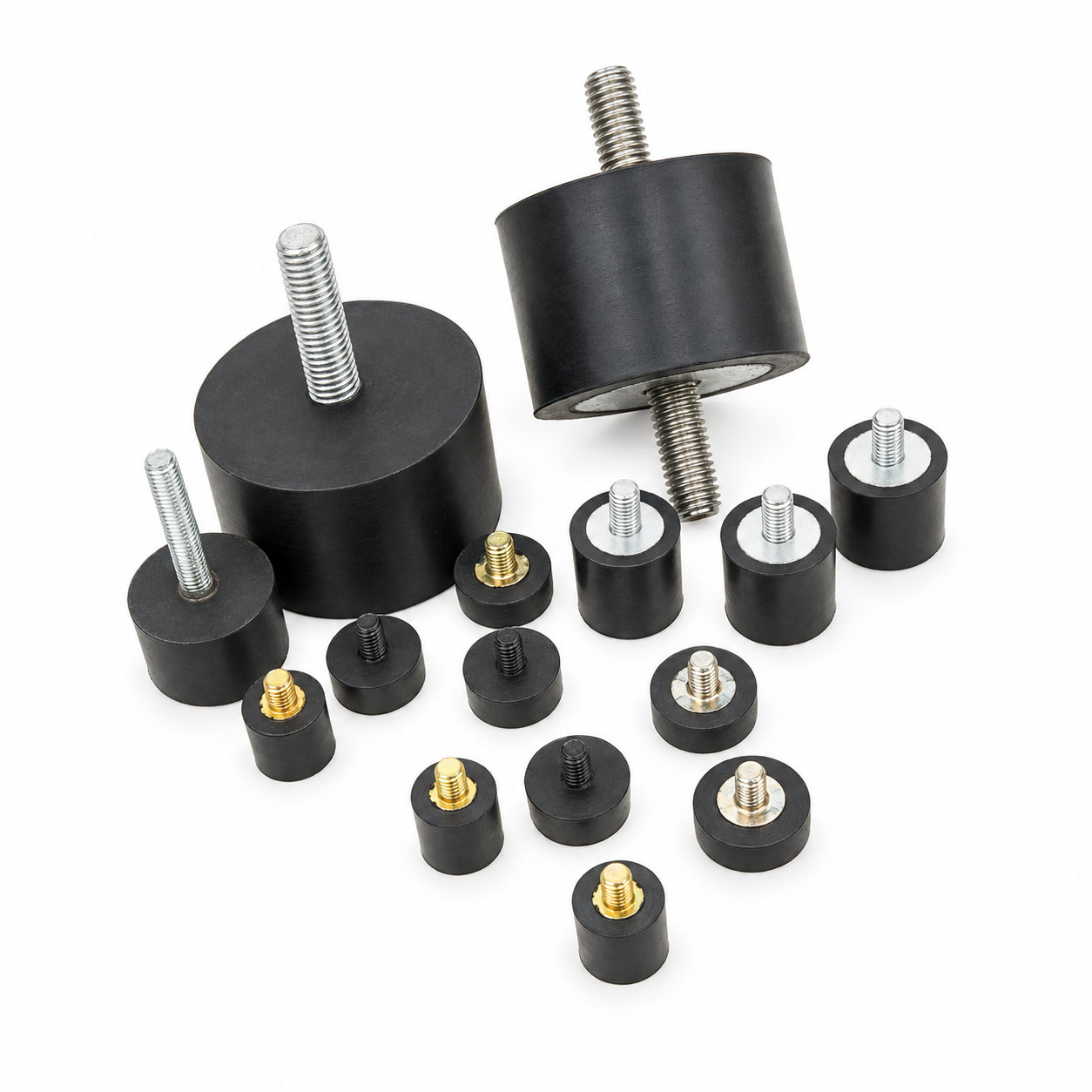

Rubber vibration damper mounting shock absorber
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A Rubber vibration damper mounting introduces a flexible support within an equipment assembly. The rubber can only follow its intended movement if surrounding connections allow that motion. Cables, hoses or rigid links attached to the supported item should therefore be reviewed alongside the mount itself.
Install the selected damper with the intended support geometry and check its resting position. Then connect the surrounding services and look for a change in alignment or supported height. A short rigid connection can preload the item or limit its movement even when the mount has suitable clearance on its own.
Custom material, size, color and hardness options from 30 to 90 Shore A are available. Evaluate the final arrangement under normal operating movement, including the transitions into and out of operation. Watch the rubber and the connected services together for local contact or pulling. During maintenance, preserve the routing and slack that belong to the evaluated installation. If a service connection is replaced with a different length, recheck the mount's working condition instead of assuming the rubber support has remained functionally unchanged.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. A Rubber vibration damper mounting introduces a flexible support within an equipment assembly.
- Custom geometry
- A short rigid connection can preload the item or limit its movement even when the mount has suitable clearance on its own.
- Fit evaluation
- Install the selected damper with the intended support geometry and check its resting position.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. A short rigid connection can preload the item or limit its movement even when the mount has suitable clearance on its own. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
