ETOL provides custom parts that can be molded, extruded, or cut into any unique shape you require. We manufacture products based on your design or samples, ensuring consistent quality, competitive pricing, and timely delivery. Contact us for a quote today!
● Fastest turnaround: 2 days for customization
●Customizable options: Colors, hardness, and shapes
● Eco-friendly materials: Compliant with FDA, RoHS, and REACH standards
● Quality assurance: ISO 9001:2008 certified
● Free samples available

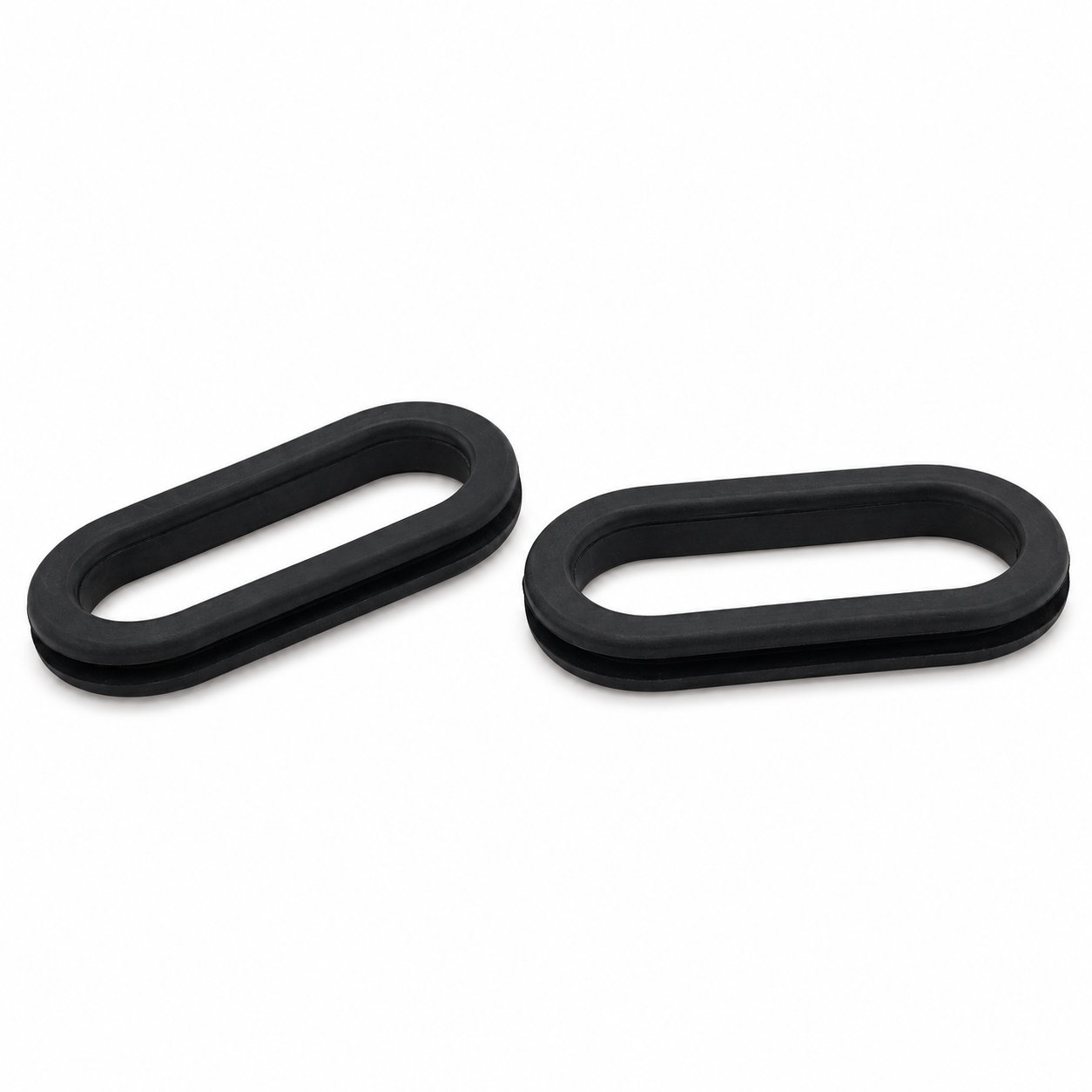

10×25mm oblong panel grommet specification
| Panel Hole Dia | Outside Dia | Inside Dia | overall thickness | Panel Thickness |
|---|---|---|---|---|
| 10×25 | 14×29 | 8×23 | 4 | 1 |
| 10×25 | 14×29 | 8×23 | 4.5 | 1.5 |
| 10×25 | 14×29 | 8×23 | 5 | 2 |
| 10×25 | 14×29 | 8×23 | 5.5 | 2.5 |
| 10×25 | 14×29 | 8×23 | 6 | 3 |
| 10×25 | 14×29 | 8×23 | 6 | 4 |

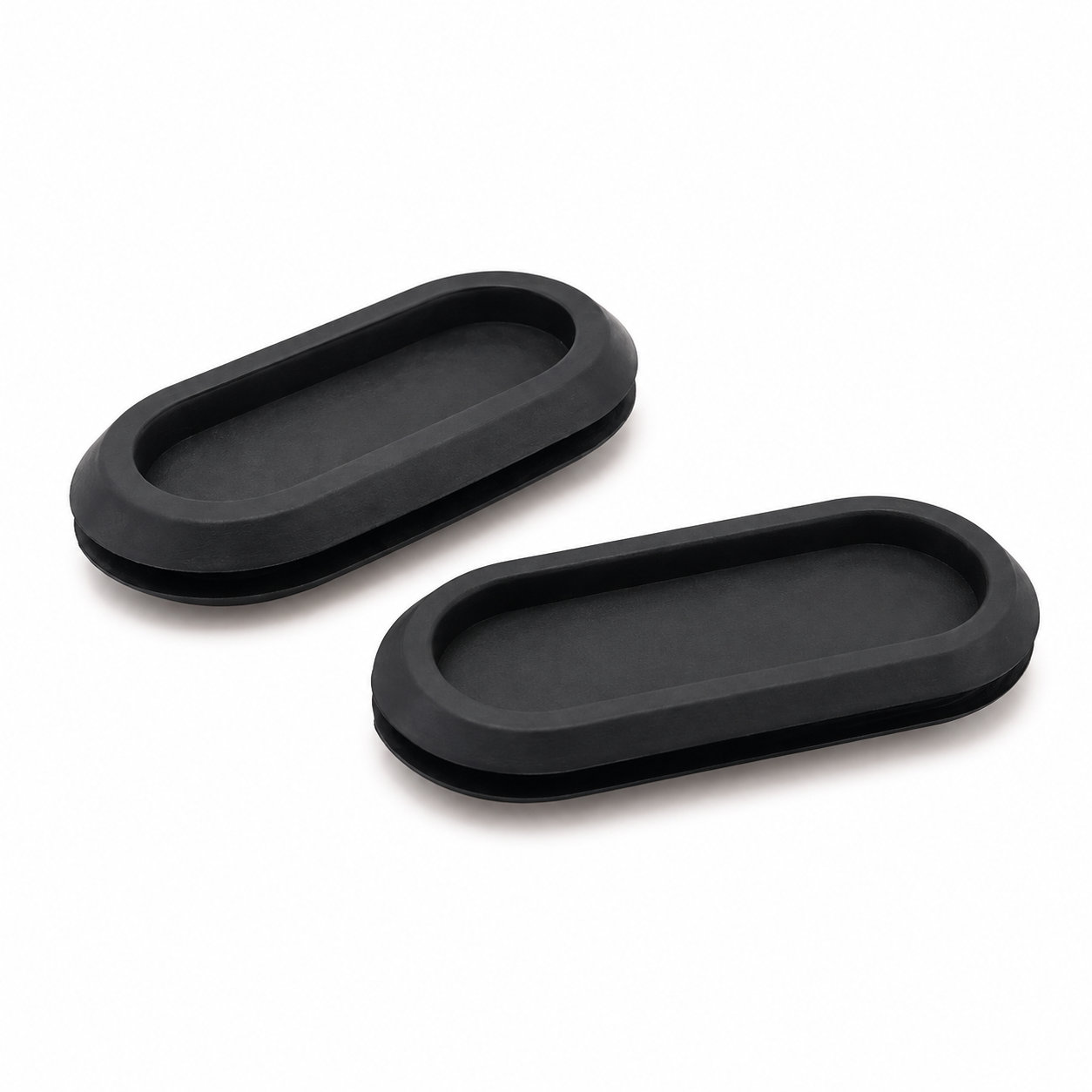

Rubber oblong panel grommet which are usually used to cover the rough and sharp edges of a hole in metal. This is done to protect another material as it is passed through this hole. For this particular type of application or process，a rubber grommet is usually used. This type of grommet effectively and safely grips the wire and it is a very important accessory if you need to avoid pulling a power cord or wire at all cost.
√ Customizing structure, dimensions
√ Colors, hardness, material
√ Free samples are available
√ OEM service with your own logo
√ ISO9001:2008, RoHS certificated
Need a special grommet for a unique application? No problem. Send us an email – we can produce in a number of different materials: High temperature Silicone, EPDM, FKM, Nitrile, HNBR, Neoprene, SBR, etc..
Contact us if you can’t find the size you need. We can help!
