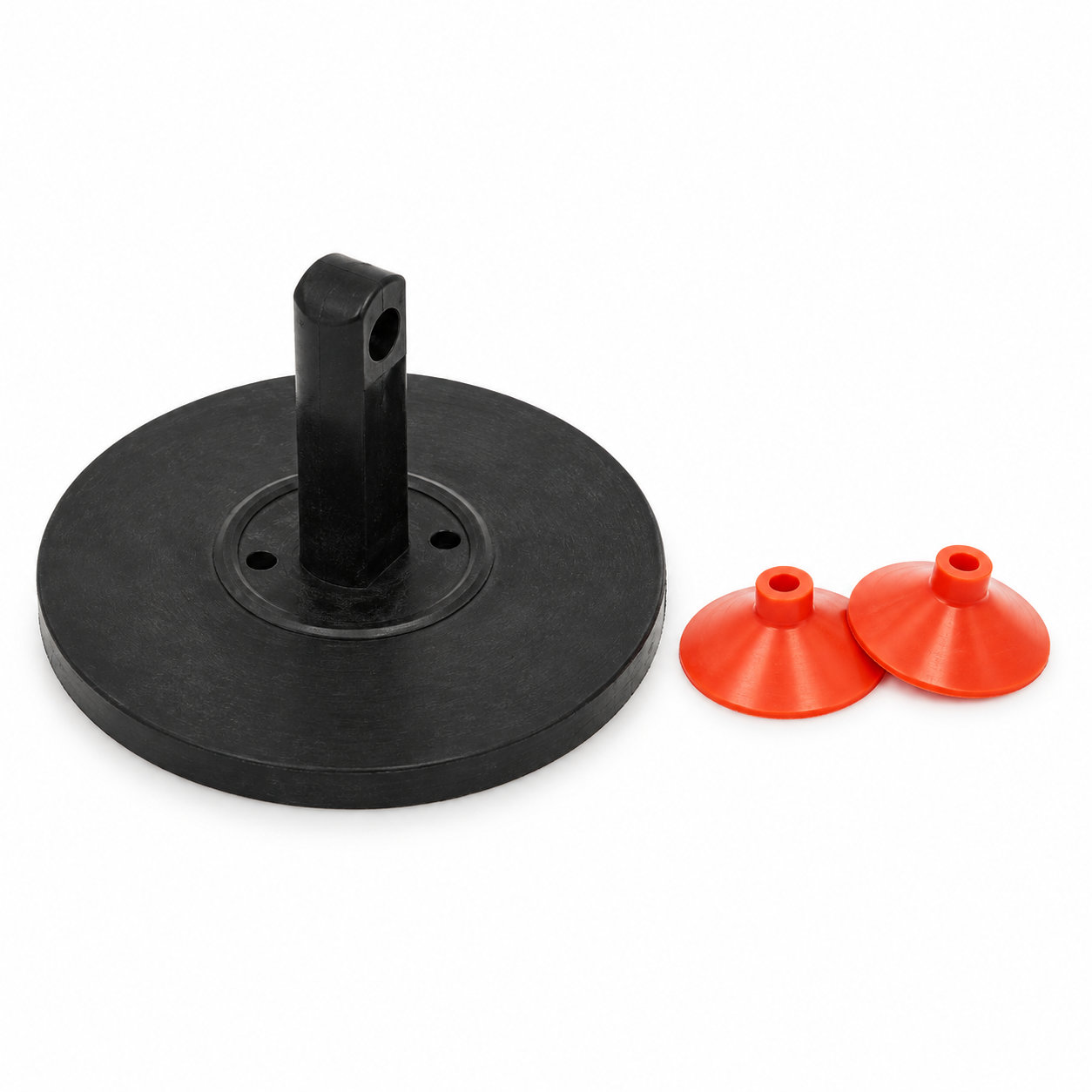

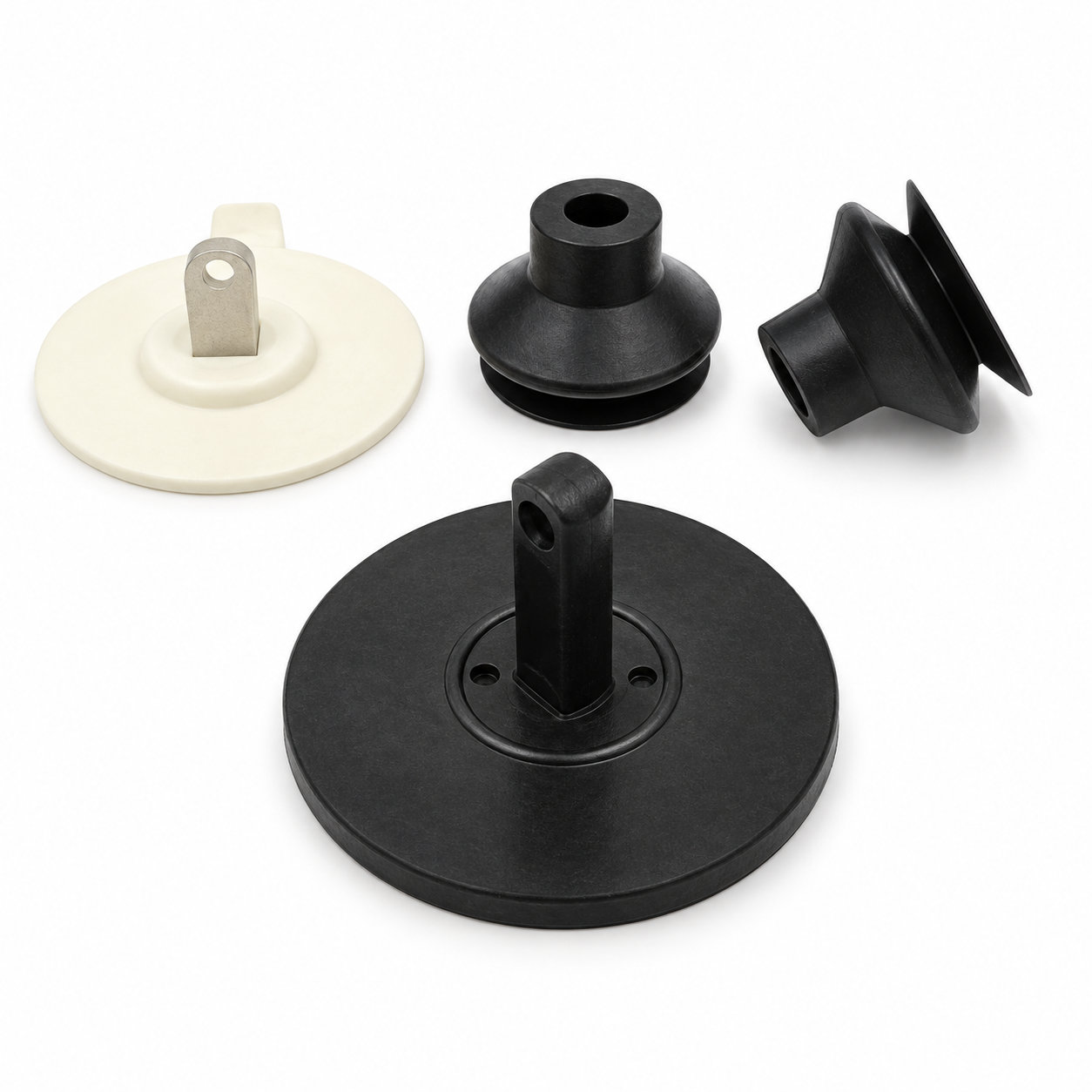

Rubber vacuum suction pad silicone vacuum suction cups

A rubber vacuum suction pad needs to meet the working surface in a way that lets its rim settle before the intended load is applied. Approach angle and available compliance can affect that contact, especially when the pad is mounted to a moving assembly. The release sequence should also let the pad leave without being dragged sideways across the surface.

Choose the silicone cup profile around the actual surface condition and curvature. Match the mounting interface to the support and consider how force is transferred as movement begins. In a vacuum system, assess the pad together with the actual supply, operating sequence, and release arrangement.

Keep contact surfaces clean and inspect the rim for damage before reuse. Verify the assembled pad reaches the surface squarely and does not encounter a raised feature beneath one edge. If wear develops in a repeated direction, examine the approach and release motion rather than replacing the pad alone. Correcting a scraping movement can help preserve the intended contact geometry for the next component.

Material options

Custom silicone compound; formulation and geometry developed together.

Hardness selection

Silicone options: 20–80 Shore A. Match the mounting interface to the support and consider how force is transferred as movement begins.

Custom geometry

Choose the silicone cup profile around the actual surface condition and curvature.

Fit evaluation

Verify the assembled pad reaches the surface squarely and does not encounter a raised feature beneath one edge.

Color & OEM

Custom colors; OEM markings outside the suction contact face.

Photos illustrate structure or material appearance only. Correcting a scraping movement can help preserve the intended contact geometry for the next component. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
