Silicone Dust Bellow Cover Rubber Expansion Bellows

A silicone dust bellow cover surrounds a moving area while its folds accommodate changes in length. It can help shield the covered mechanism from direct dust exposure, provided its end connections and movement range suit the installation. Space for the compressed folds is as important as the distance available when the cover extends.

Map the mechanism's shortest and longest working positions before choosing the geometry. At the short position, the folds should not be crushed against a bracket or trapped between moving parts. At the long position, the cover should retain enough movement allowance to avoid transferring tension to its attachment edges.

Consider lateral movement as well as straight travel. A cover that follows an axial stroke may rub if the mechanism also pivots. Route surrounding components clear of the fold crests and secure the ends without cutting into the rubber. Dust protection does not establish pressure containment or a watertight seal. During maintenance, remove packed debris from the folds and inspect areas that repeatedly contact nearby hardware.

Material options

Custom silicone compound; formulation and geometry developed together.

Hardness selection

Silicone options: 20–80 Shore A. Space for the compressed folds is as important as the distance available when the cover extends.

Custom geometry

A silicone dust bellow cover surrounds a moving area while its folds accommodate changes in length.

Fit evaluation

At the long position, the cover should retain enough movement allowance to avoid transferring tension to its attachment edges.

Color & OEM

Custom colors; identification clear of folds and end connections.

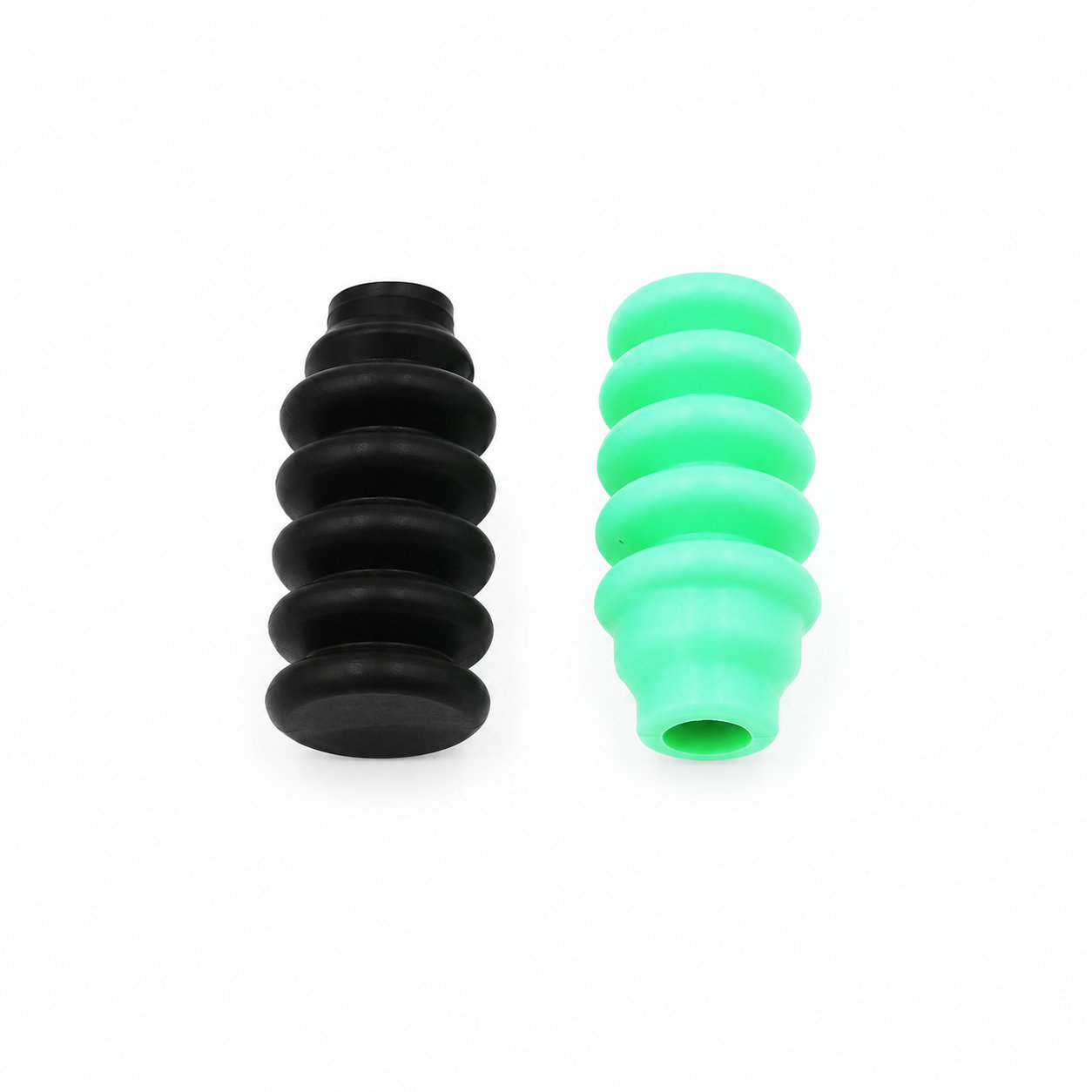

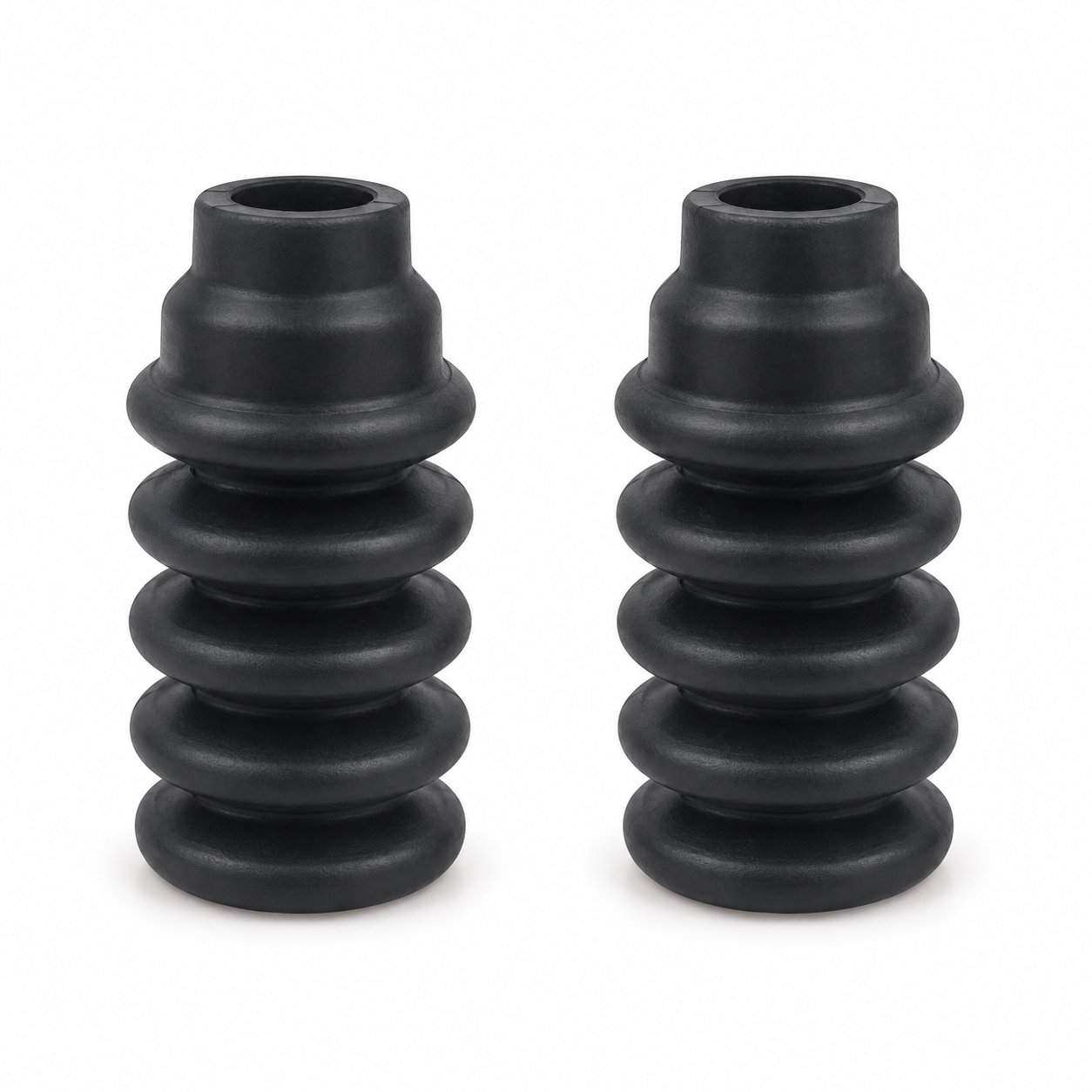

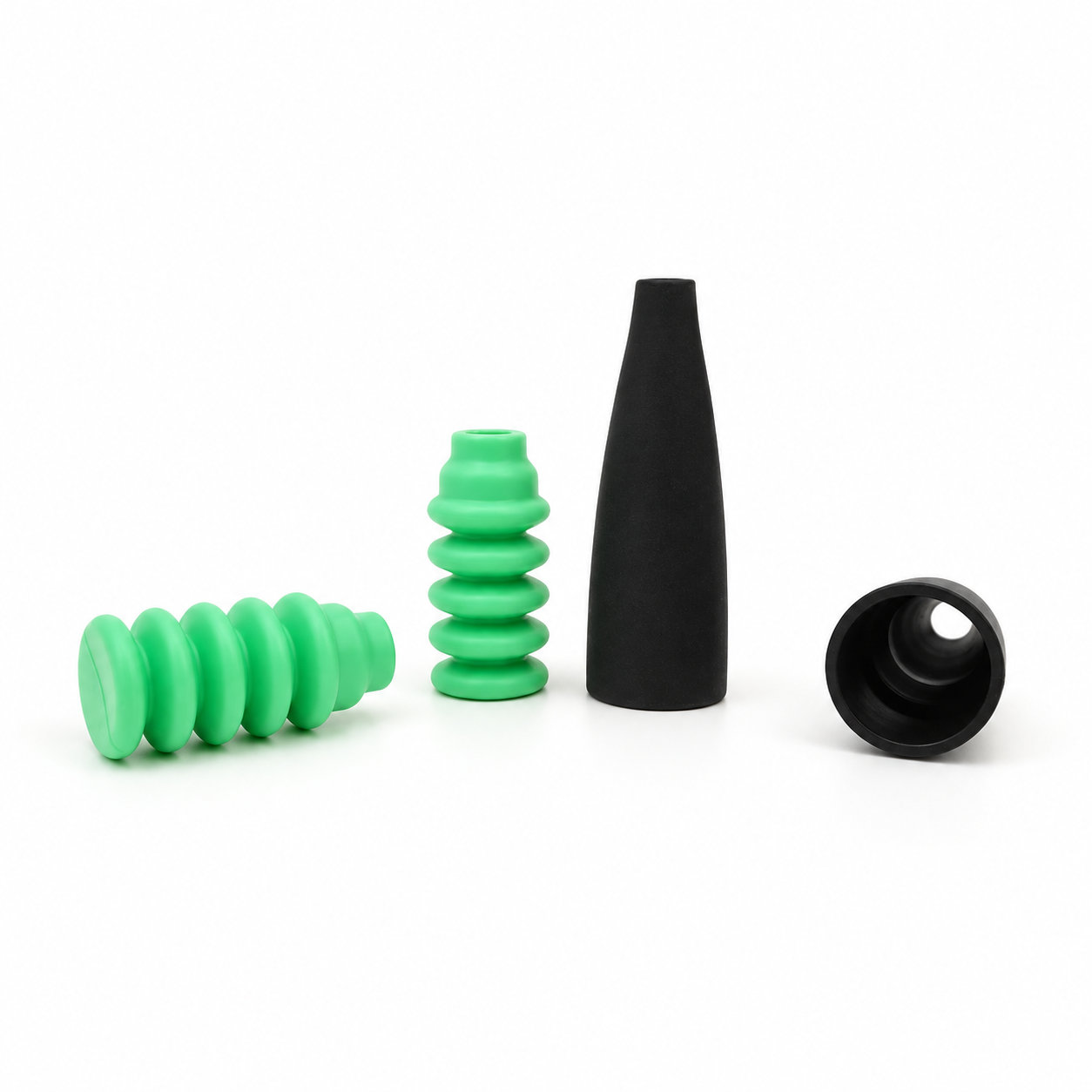

Photos illustrate structure or material appearance only. A silicone dust bellow cover surrounds a moving area while its folds accommodate changes in length. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
