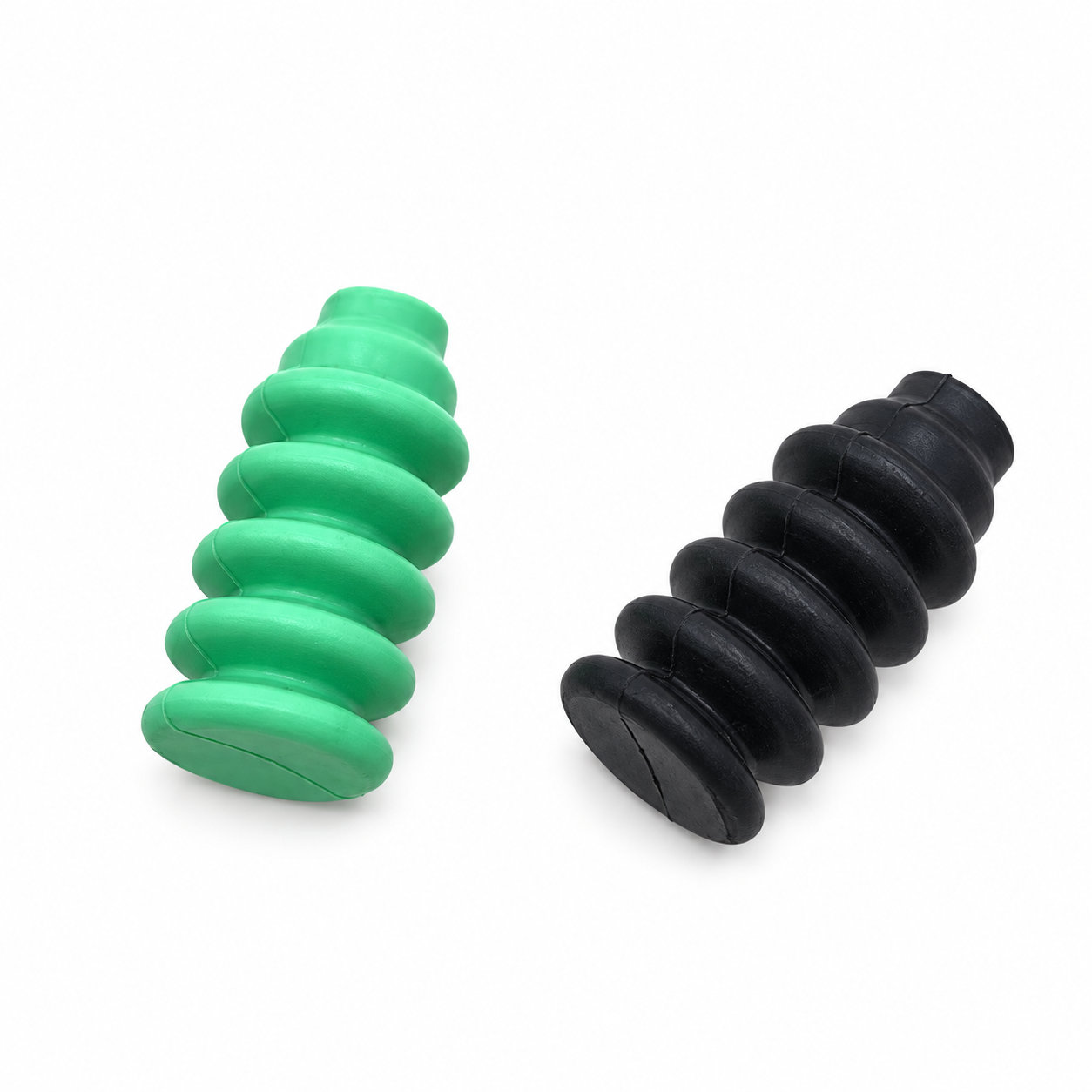

Custom molded silicone NBR rubber dust cover expansion bellows

Custom expansion bellows need an installed neutral position that leaves room for the movement required by the assembly. Silicone and NBR are material options for this rubber dust-cover form, selected according to the environment. The folded body should be developed with its end connections and surrounding clearance.

Measure the separation and alignment of the mounting points before the mechanism moves. Installing the bellows already stretched or compressed can consume travel needed during operation. The ends should reach their intended seats without twisting the folds to make the connections line up.

Evaluate the complete motion after fitting, watching for rubbing against nearby hardware and local crowding of the folds. Choose the compound for the actual temperature and substances. During maintenance, clean the fold valleys and inspect transitions into the end sections. A replacement should match the neutral position, working range, and mounting profiles so that the dust cover follows the original movement instead of being forced into an approximately suitable space.

Material options

Custom silicone or NBR formulation; select the compound alongside the mating geometry.

Hardness selection

Silicone: 20–80 Shore A; solid rubber: 30–90 Shore A. Installing the bellows already stretched or compressed can consume travel needed during operation.

Custom geometry

The folded body should be developed with its end connections and surrounding clearance.

Fit evaluation

Evaluate the complete motion after fitting, watching for rubbing against nearby hardware and local crowding of the folds.

Color & OEM

Custom colors; identification clear of folds and end connections.

Photos illustrate structure or material appearance only. The folded body should be developed with its end connections and surrounding clearance. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
