A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

A silicone seal plug with a translucent appearance should be selected around the actual opening and temperature cycle. The visible finish does not establish the formulation or a particular heat limit. Match the compound and contact profile to the substances and operating conditions at the installed closure.

Check insertion depth, retaining geometry, and the access available for removal. A cap version covering an outer feature needs its own internal dimensions. The mating component may change contact as it heats and cools, so assess sealing and retention on the complete assembly through the relevant states.

Fit on a clean seat without folding the edge or forcing the plug beyond its intended position. Inspect translucent contact regions carefully for small particles or cuts. During service, look for persistent distortion and examine the receiving feature if fit has changed. Preserve the selected specification rather than choosing another translucent part solely because it appears similar to the removed closure.

Material options: Custom silicone compound; formulation and geometry developed together.
Hardness selection: Silicone options: 20–80 Shore A. Check insertion depth, retaining geometry, and the access available for removal.
Custom geometry: A cap version covering an outer feature needs its own internal dimensions.
Fit evaluation: The mating component may change contact as it heats and cools, so assess sealing and retention on the complete assembly through the relevant states.
Color & OEM: Custom colors; OEM identification positioned outside closure contact surfaces.

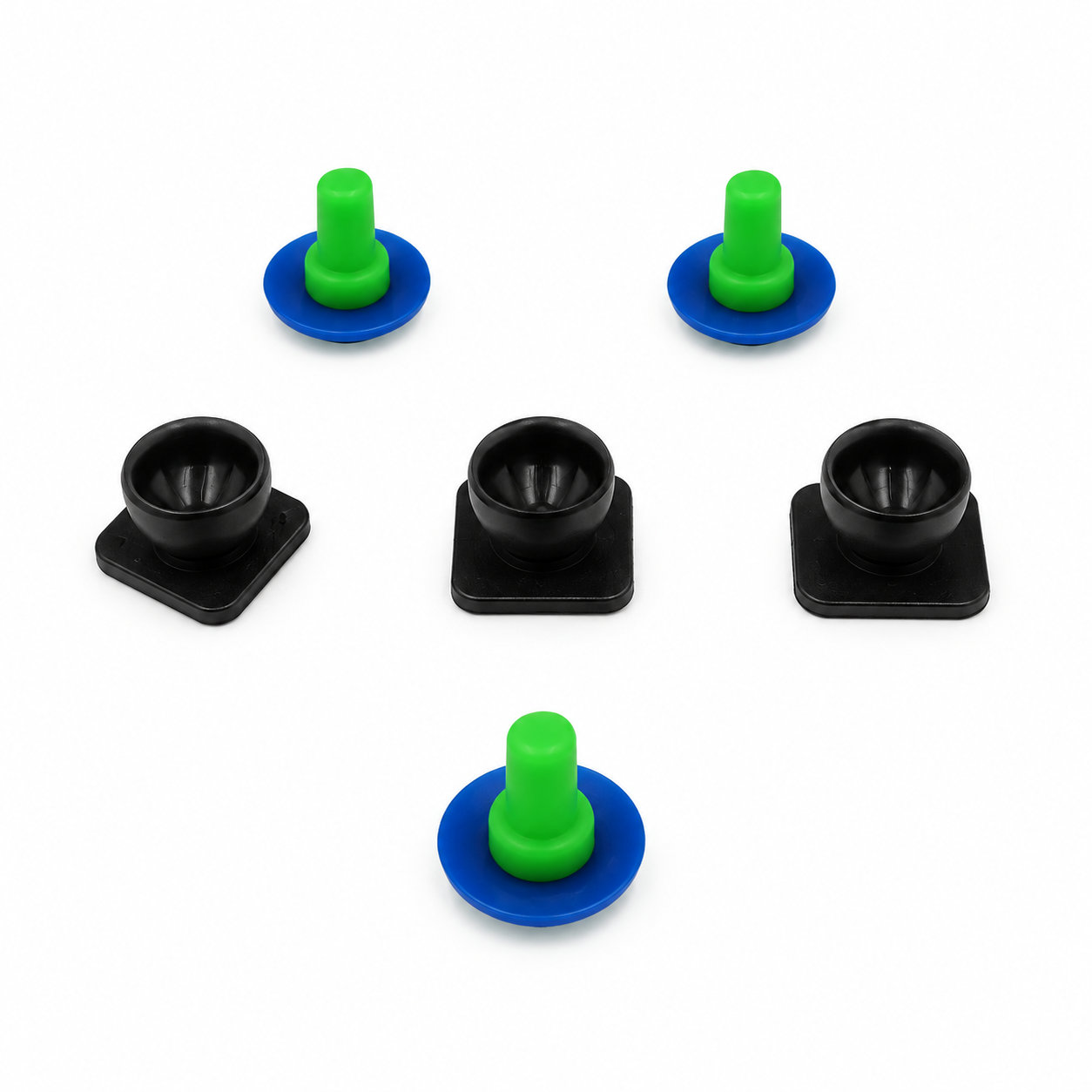

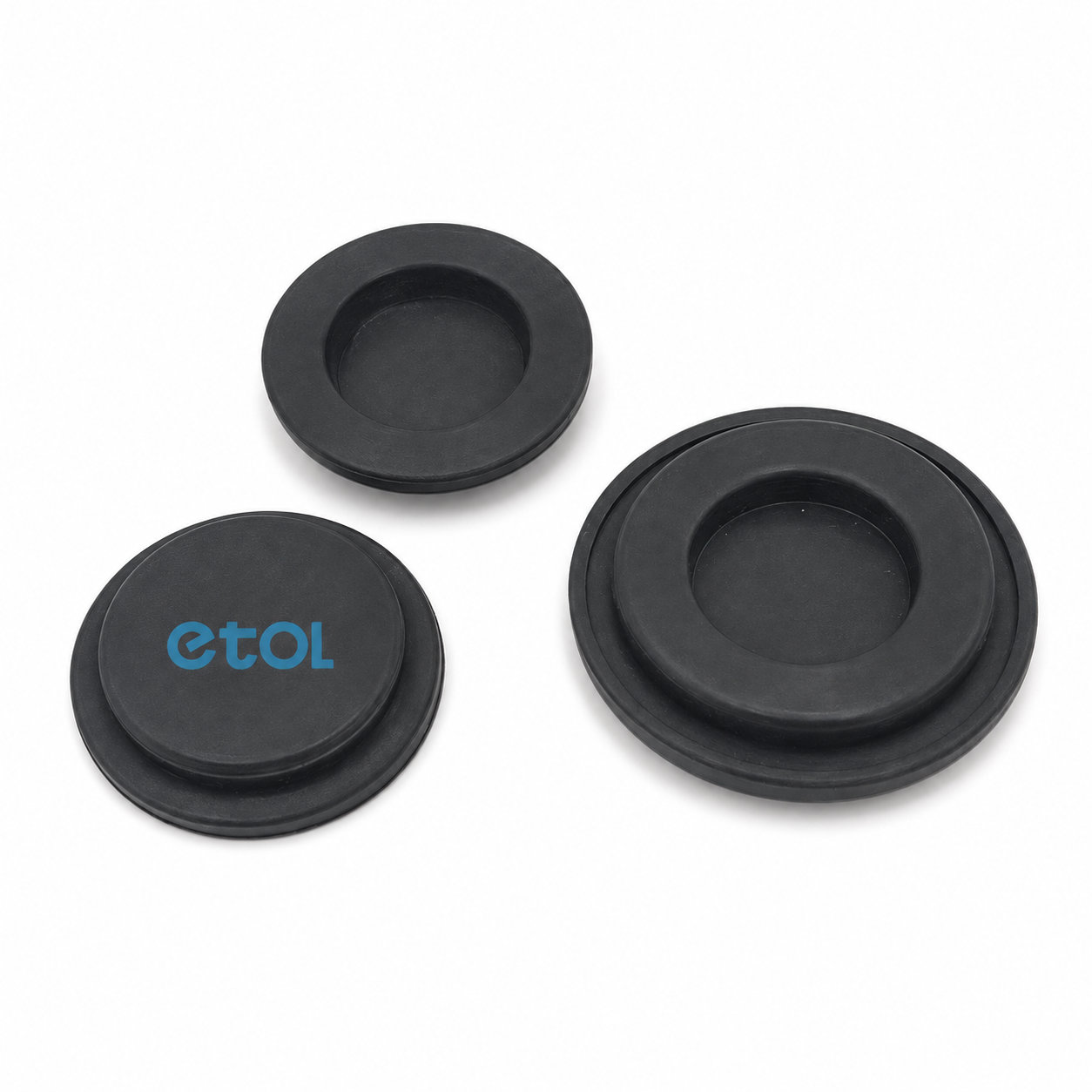

Photos illustrate structure or material appearance only. The mating component may change contact as it heats and cools, so assess sealing and retention on the complete assembly through the relevant states. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

FIND THE RIGHT FIT

End Cap Size Catalog

Compare inside diameter A with the outside of the part being covered. Check inside depth C and overall dimensions B and D for available clearance. These RSE references show a round cap with one closed end.

RSE End Caps

43 closed-end cap sizes. A is the inside diameter and C is the usable internal depth; B and D describe the outside envelope.

Generated product visualization of RSE End Caps. — Illustrative product rendering. Refer to the table for dimensions.

P/N	A	B	C	D	Color	Unit
RSE3.7-7-9	3.7	7	9	11	black,white	mm
RSE4.7-8-9	4.7	8	9	11	black,white	mm
RSE5.7-9-10	5.7	9	10	12	black,white	mm
RSE6.7-10-10	6.7	10	10	12	black,white	mm
RSE7.7-11-11	7.7	11	11	13	black,white	mm
RSE8.7-12-12	8.7	12	12	14	black,white	mm
RSE9.7-14-13	9.7	14	13	15	black,white	mm
RSE10.7-15-14	10.7	15	14	16	black,white	mm
RSE11.7-16-15	11.7	16	15	17	black,white	mm
RSE12.7-17-15	12.7	17	15	18	black,white	mm
RSE13.7-18-15	13.7	18	15	18	black,white	mm
RSE14.7-19-15	14.7	19	15	18	black,white	mm
RSE15.7-20-16	15.7	20	16	19	black,white	mm
RSE16.7-21-16	16.7	21	16	19	black,white	mm
RSE17.7-22-16	17.7	22	16	19	black,white	mm

Need a different fit? Share the opening dimensions, mating profile and intended use for a custom size.

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.

DISCUSS THIS COMPONENT

Describe the part you need.

Share the fit, operating conditions and quantity with our manufacturing team.
