Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Small rubber bellows/ Nitrile rubber bellows manufacturer
CUSTOM RUBBER & SILICONE MANUFACTURING

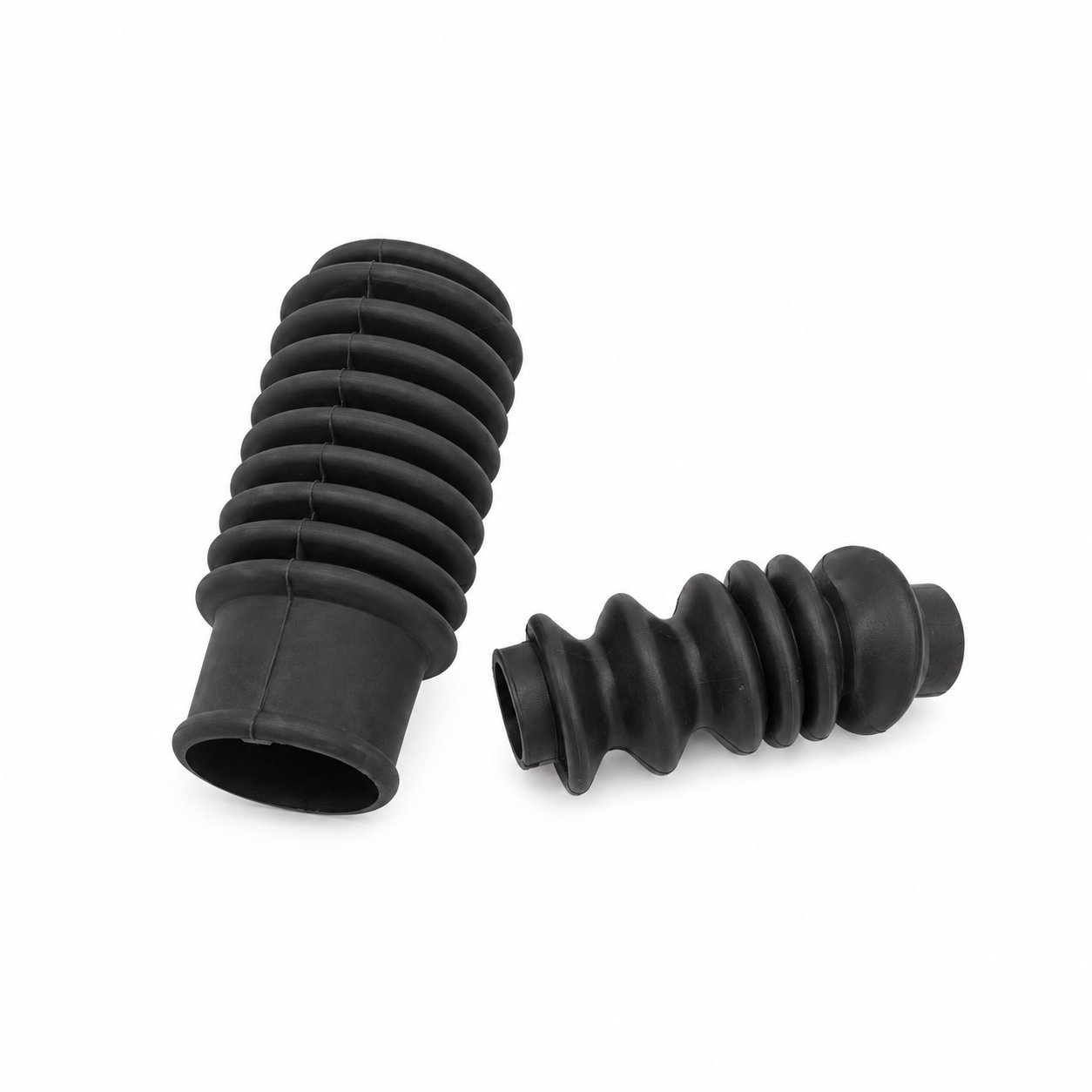

Small rubber bellows/ Nitrile rubber bellows manufacturer
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
Small rubber bellows provide a flexible cover where two attachment areas move relative to one another. The folded wall can accommodate a defined change in length while protecting the enclosed region. The nitrile option and custom dimensions should be selected around the actual movement and the space available for the compressed folds.
In a compact assembly, the shortest position deserves close attention. The folds need room to gather without becoming a hard obstruction between the moving parts. At the opposite end of travel, the bellows must not be pulled tight enough to shift its attachments. Check those positions with the real end fittings, because attachment depth changes the length available for motion.
Consider nearby features as well as axial travel. A screw head or bracket can rub a fold as it expands sideways, even when the overall length is correct. Keep the cover aligned with the movement it is intended to follow and avoid twisting it during installation.
Material, color and hardness can be customized for the installation. Evaluate the selected bellows through normal movement and any additional travel required for service. During maintenance, clear debris lodged between folds gently and look for a polished area that signals rubbing. When removing the assembly, release the end attachments before pulling on the folded wall, so the flexible section does not carry unnecessary removal force.
- Material options
- NBR compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. When removing the assembly, release the end attachments before pulling on the folded wall, so the flexible section does not carry unnecessary removal force.
- Custom geometry
- Check those positions with the real end fittings, because attachment depth changes the length available for motion.
- Fit evaluation
- Keep the cover aligned with the movement it is intended to follow and avoid twisting it during installation.
- Color & OEM
- Custom colors; identification clear of folds and end connections.
Photos illustrate structure or material appearance only. The folded wall can accommodate a defined change in length while protecting the enclosed region. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
