Custom made rubber 30mm silicone suction cup

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

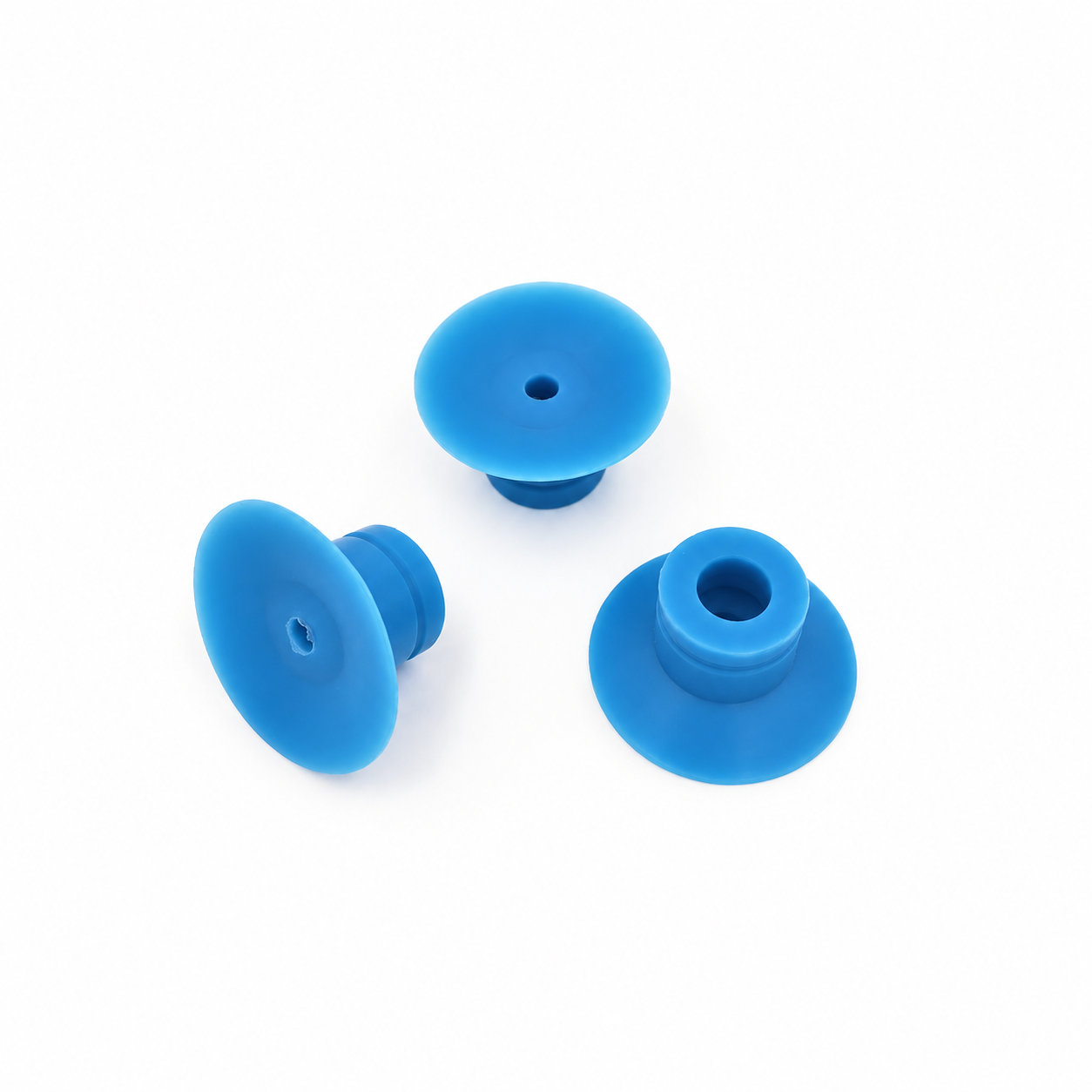

A 30mm silicone suction cup provides a compact contact footprint for a custom suction attachment. Its size is useful when the available surface is limited, but the entire rim still needs a suitable seating area. The surface condition and the way the cup is loaded determine whether that contact can be maintained.

Place the cup on a clean, smooth, nonporous area that extends beyond the full rim. A small cup positioned partly over an edge or surface joint cannot form the same continuous contact as one seated on an uninterrupted area. The attachment feature connected to the cup should also allow the intended load to act without unnecessarily peeling a side away.

Assess the cup in its actual arrangement, including the orientation of the surface and any movement of the attached item. The 30mm designation identifies size rather than a guaranteed holding load. If the cup is repeatedly removed, keep its contact face free of cuts and residue before refitting it. Release the edge deliberately during removal instead of sharply pulling the attached component, which can distort the cup or stress its connection.

Material options: Custom silicone compound; formulation and geometry developed together.
Hardness selection: Silicone options: 20–80 Shore A. Assess rim compliance with the attachment loaded in its intended direction, including any movement that could peel one side away.
Custom geometry: Its size is useful when the available surface is limited, but the entire rim still needs a suitable seating area.
Fit evaluation: A small cup positioned partly over an edge or surface joint cannot form the same continuous contact as one seated on an uninterrupted area.
Color & OEM: Custom colors; OEM markings outside the suction contact face.

Photos illustrate structure or material appearance only. A small cup positioned partly over an edge or surface joint cannot form the same continuous contact as one seated on an uninterrupted area. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
