Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Automotive round rubber bumper/neoprene rubber mounts
CUSTOM RUBBER & SILICONE MANUFACTURING
Automotive round rubber bumper/neoprene rubber mounts
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A round rubber bumper offers a circular contact face for a defined automotive mounting or stopping location. Neoprene is one of the material choices associated with this custom product. The diameter, height, and engagement details should follow the actual vehicle component rather than a visual comparison with a similar round part.
The approaching surface needs to land within the bumper's usable area throughout the movement expected in service. If the contact shifts toward the edge, a round face may be loaded unevenly. Review the installed position and any surrounding guide or mounting feature that controls that approach. The bumper should not be used to conceal an alignment problem in the adjoining assembly.
Local heat and fluid exposure belong in the material selection. During replacement, inspect the mounting hole or seat for distortion and remaining fragments of old rubber. Fully seat the new part before checking its projection. A partially fitted bumper can appear taller and change the gap that the automotive assembly was intended to maintain.
- Material options
- Custom neoprene formulation; tailor the geometry and color to the required interface and exposure.
- Hardness range
- 30–90 Shore A for rubber. Assess the grade against this fit requirement: If the contact shifts toward the edge, a round face may be loaded unevenly.
- Custom profile & fit
- The diameter, height, and engagement details should follow the actual vehicle component rather than a visual comparison with a similar round part.
- Assembly considerations
- Review the installed position and any surrounding guide or mounting feature that controls that approach.
- Design check
- During replacement, inspect the mounting hole or seat for distortion and remaining fragments of old rubber.

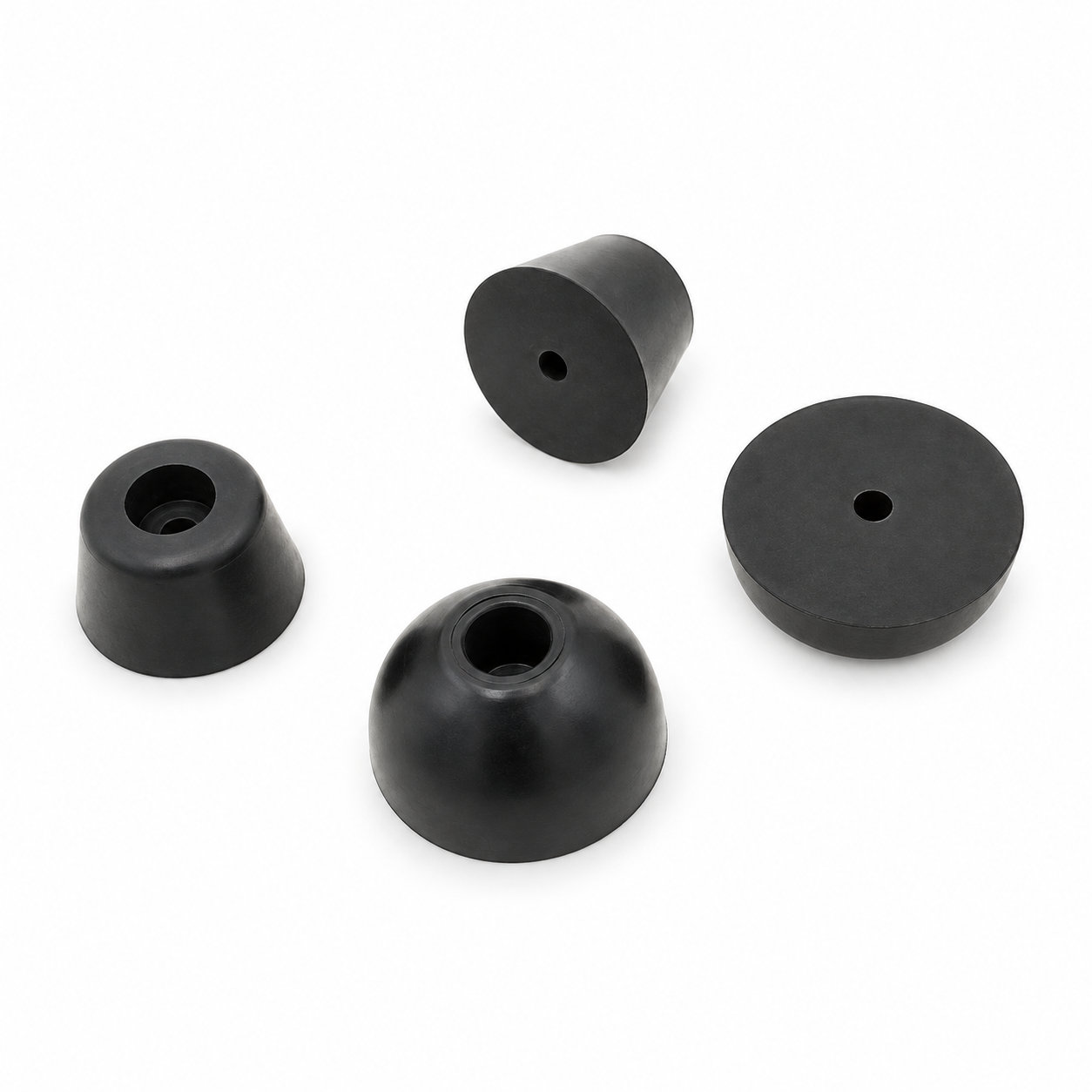

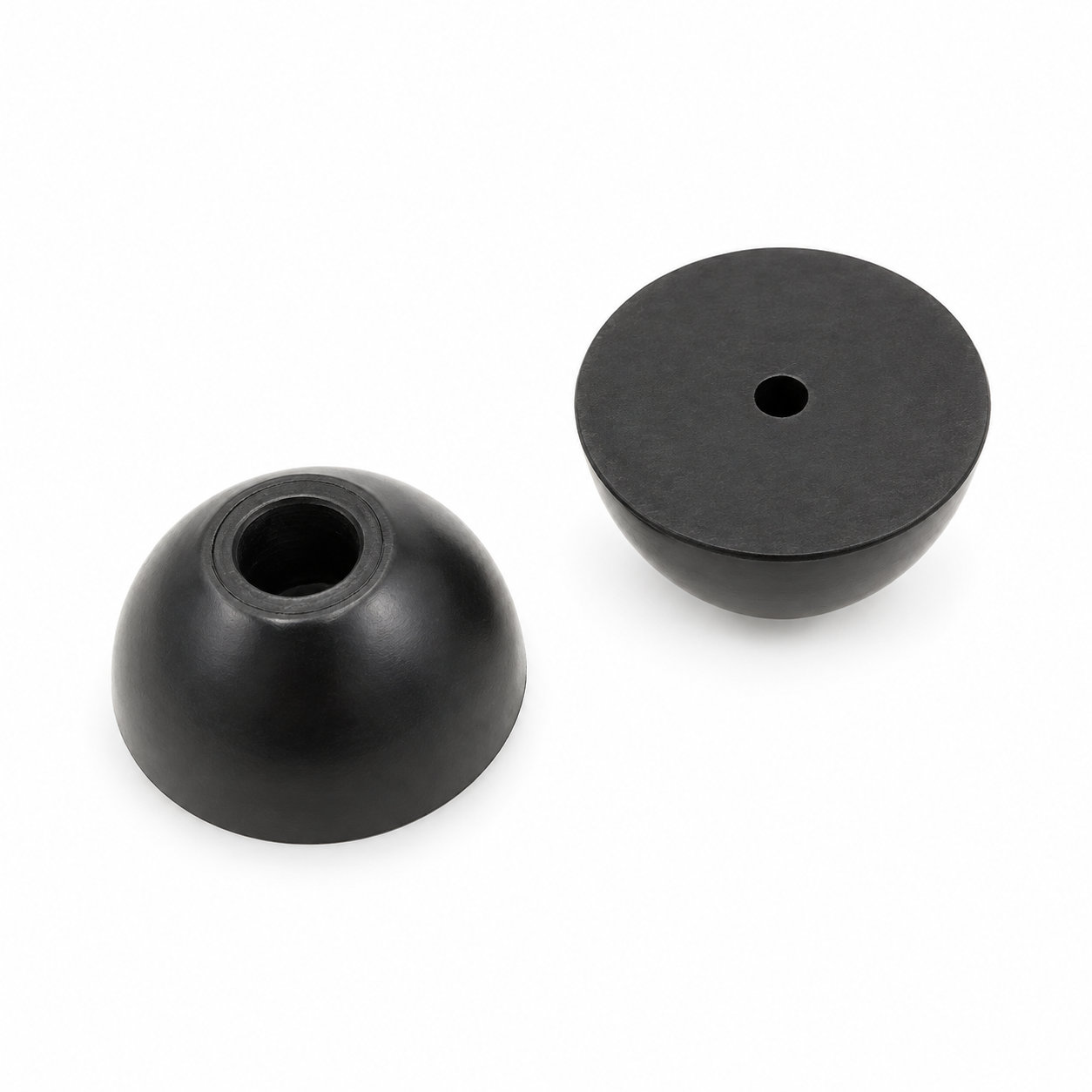

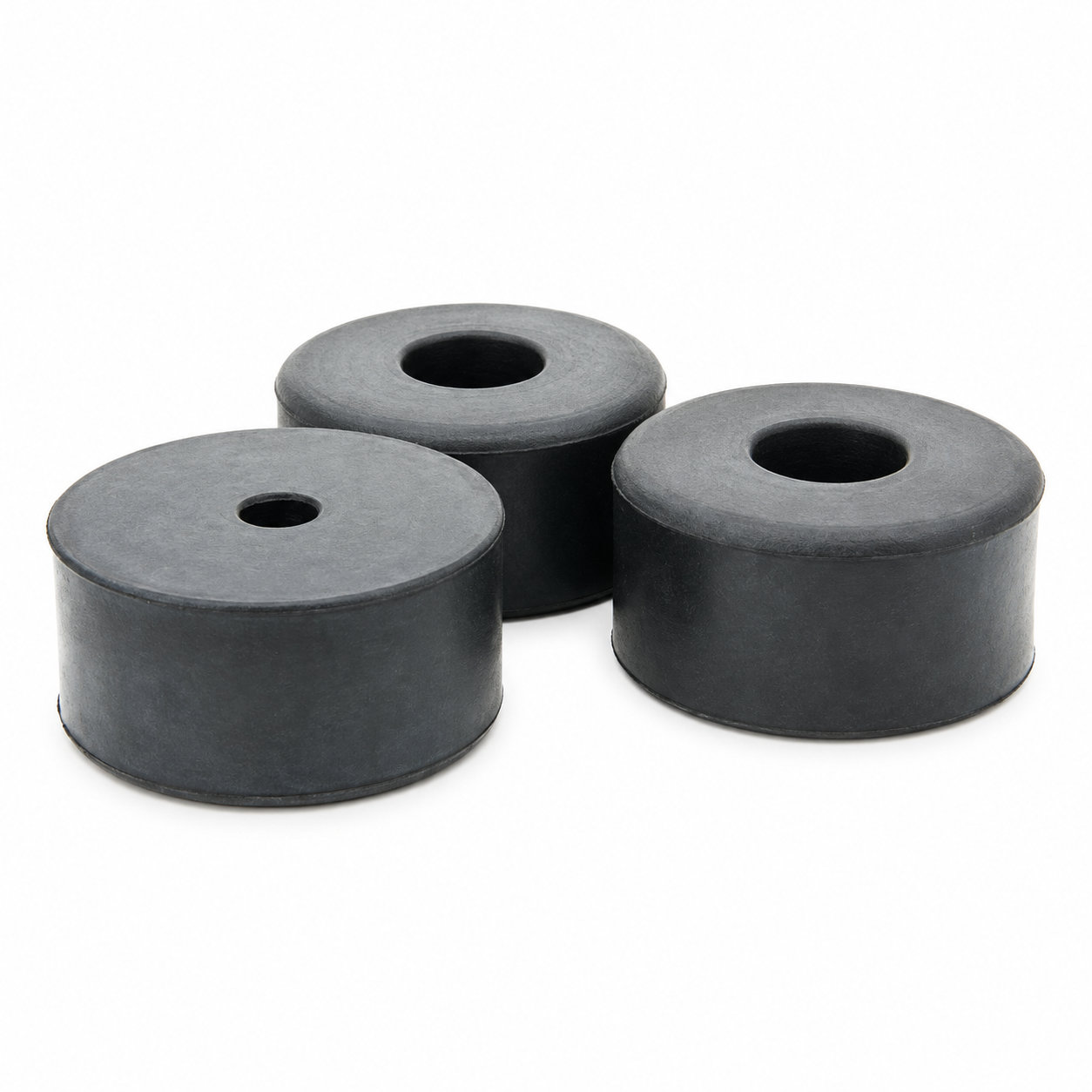

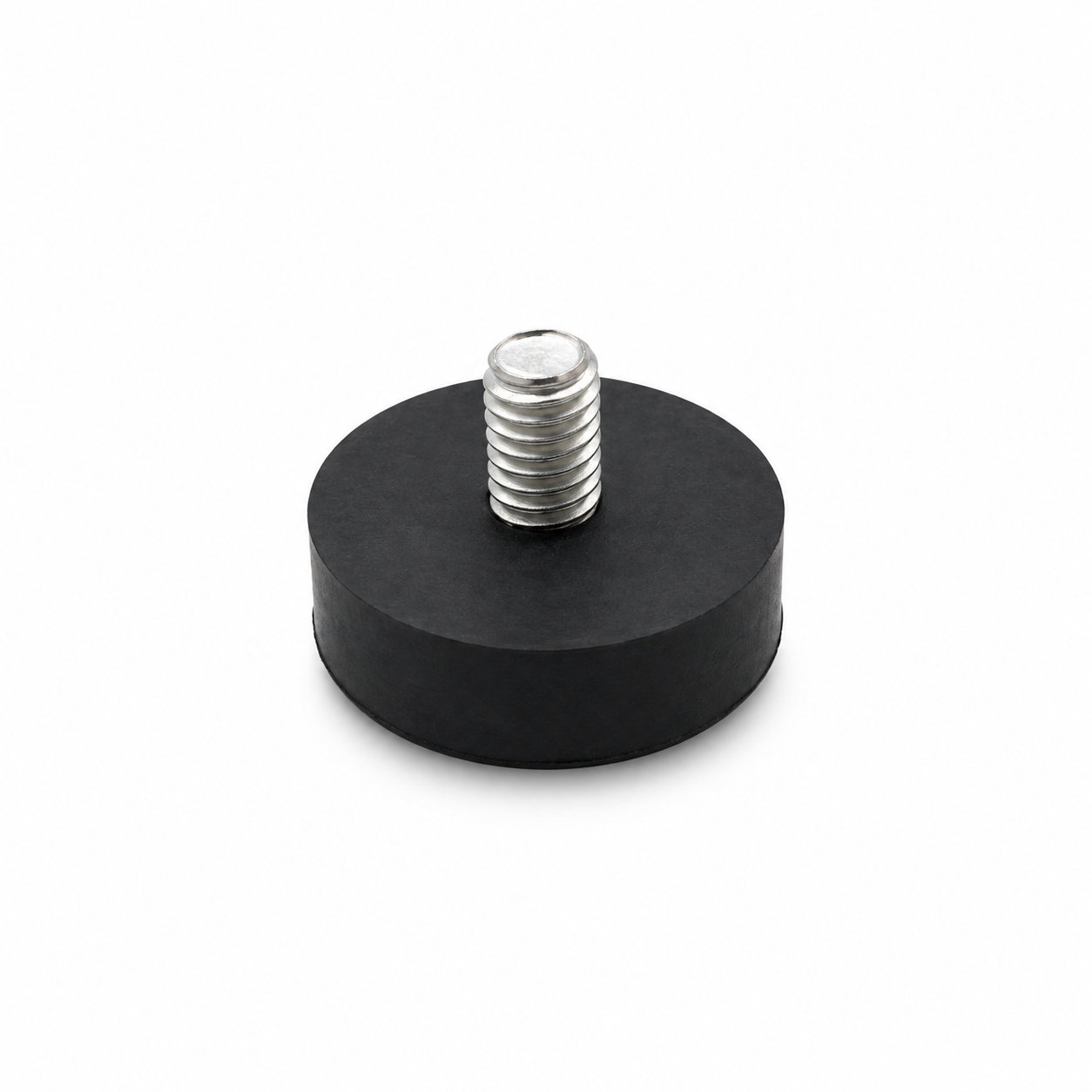

Photos illustrate structure or material only. The diameter, height, and engagement details should follow the actual vehicle component rather than a visual comparison with a similar round part. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
