Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Custom flat round rubber o-ring silicone gaskets and seals
CUSTOM RUBBER & SILICONE MANUFACTURING

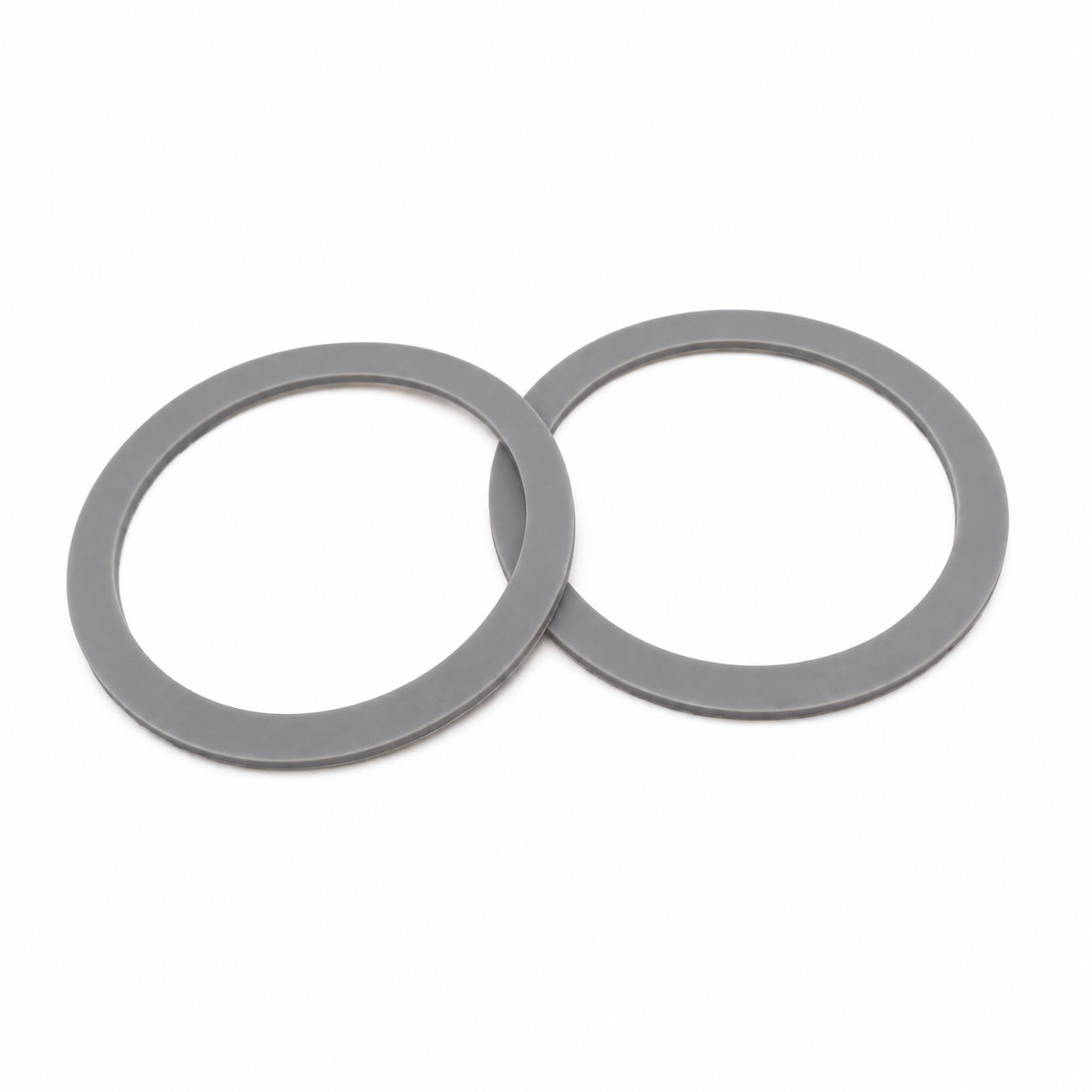

Custom flat round rubber o-ring silicone gaskets and seals
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A flat round rubber sealing component should be matched by its section as well as its circular outline. A flat gasket and a conventional O-ring occupy a seat differently, even when their overall diameters look similar. Custom dimensions and material options allow the selected shape to follow the intended joint.
Examine the mating geometry before selecting a replacement. A flat seat may support a washer-like section across its width, while a groove designed for a circular section controls the rubber differently. Preserve the required profile rather than choosing a ring only because it fits around the center feature.
The material needs to suit the substances and temperature at the interface. Position the seal cleanly and check that it remains flat or properly seated according to its design. Close the assembly through the intended locating arrangement to avoid pinching one side. During servicing, compare the removed part with the required dimensions, recognizing that sustained compression may have changed its shape. Use the specified section for replacement instead of copying a distorted old profile.
- Material options
- Silicone. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Silicone: 20–80 Shore A. Choose the grade for the actual flat seat or circular-section groove; each arrangement supports silicone deformation differently.
- Custom dimensions
- A flat round rubber sealing component should be matched by its section as well as its circular outline.
- Fit & assembly
- Position the seal cleanly and check that it remains flat or properly seated according to its design.
- Use & inspection
- During servicing, compare the removed part with the required dimensions, recognizing that sustained compression may have changed its shape.
Photos illustrate structure or material only. A flat seat may support a washer-like section across its width, while a groove designed for a circular section controls the rubber differently. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
