Custom manufacturing example · Custom molded skid-proof NBR dampers/EPDM small mounts
CUSTOM RUBBER & SILICONE MANUFACTURING

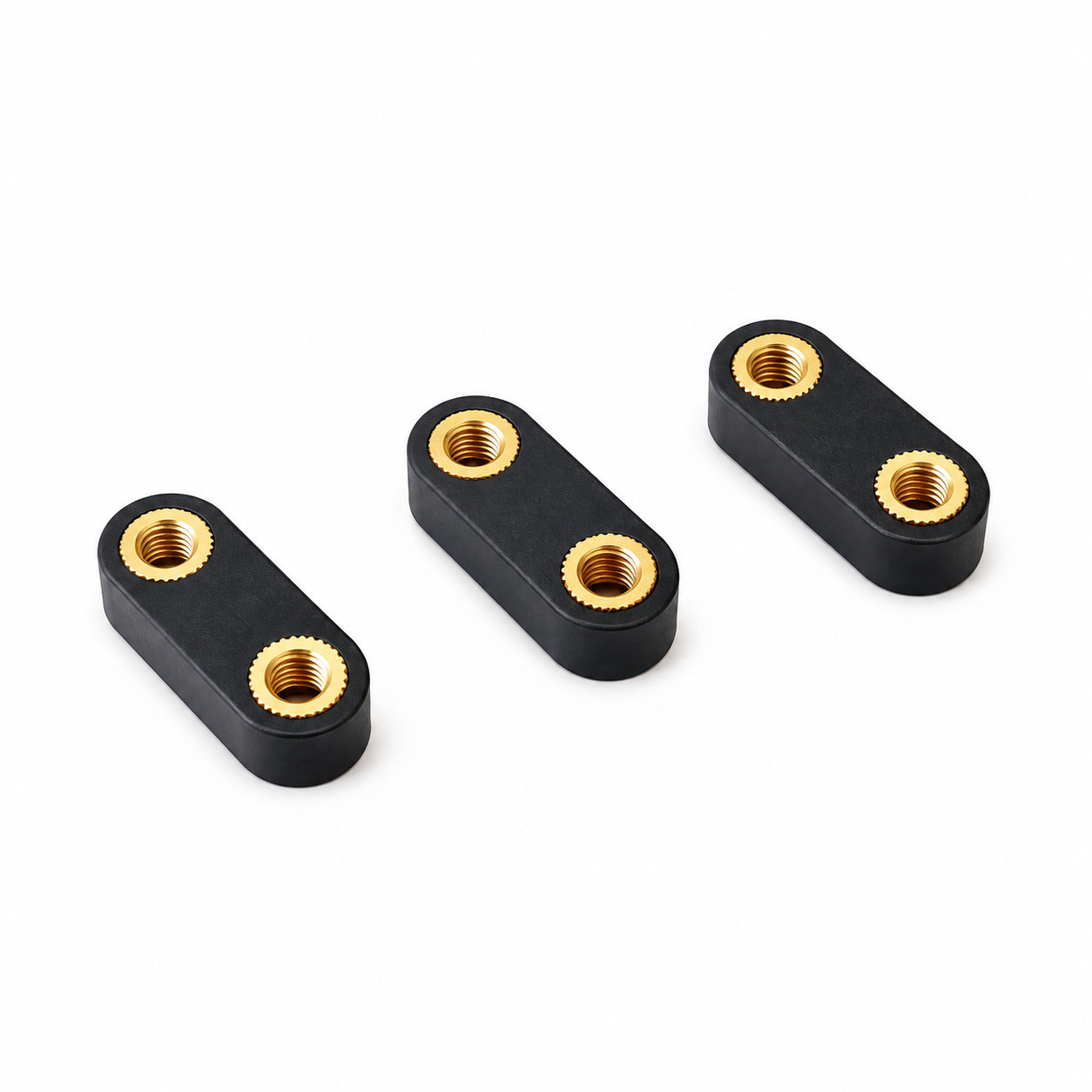

Custom molded skid-proof NBR dampers/EPDM small mounts
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
EPDM small mounts and NBR damper variants should be chosen for the actual contact and exposure conditions of the installation. Where the rubber meets a supporting surface, friction depends on that surface's finish, contamination and direction of applied force. A skid proof description does not establish one result for every mounting environment.
Custom shape, dimensions and color allow the component to match the equipment. Select the formulation for local fluids and temperature, then evaluate the complete support arrangement under representative loading. The material choice should remain clear if visually similar NBR and EPDM versions are used in different positions.
Check that the contact face is fully supported and that fastening does not leave the mount tilted. Keep particles and residue away from the working surfaces before installation. During maintenance, inspect for movement, uneven wear and a changing installed height. If a mount repeatedly shifts, review its retention and the forces reaching it rather than increasing surface pressure without understanding the cause. The whole assembly should maintain its intended stance and clearance.
- Material options
- EPDM / NBR compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. If a mount repeatedly shifts, review its retention and the forces reaching it rather than increasing surface pressure without understanding the cause.
- Custom geometry
- Custom shape, dimensions and color allow the component to match the equipment.
- Fit evaluation
- Select the formulation for local fluids and temperature, then evaluate the complete support arrangement under representative loading.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. EPDM small mounts and NBR damper variants should be chosen for the actual contact and exposure conditions of the installation. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
