Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Custom rubber cable seal grommet rubber long sleeve
CUSTOM RUBBER & SILICONE MANUFACTURING

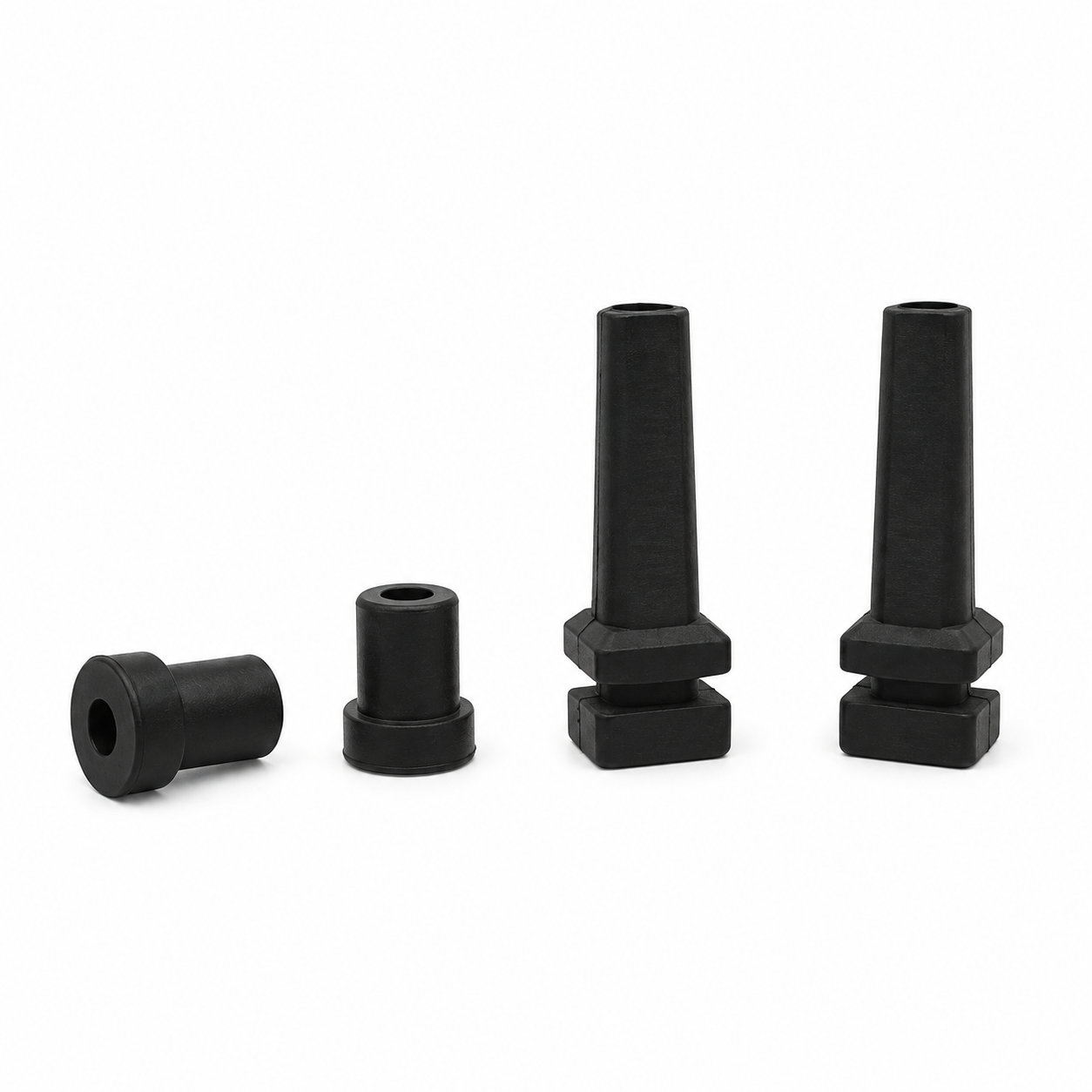

Custom rubber cable seal grommet rubber long sleeve
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview

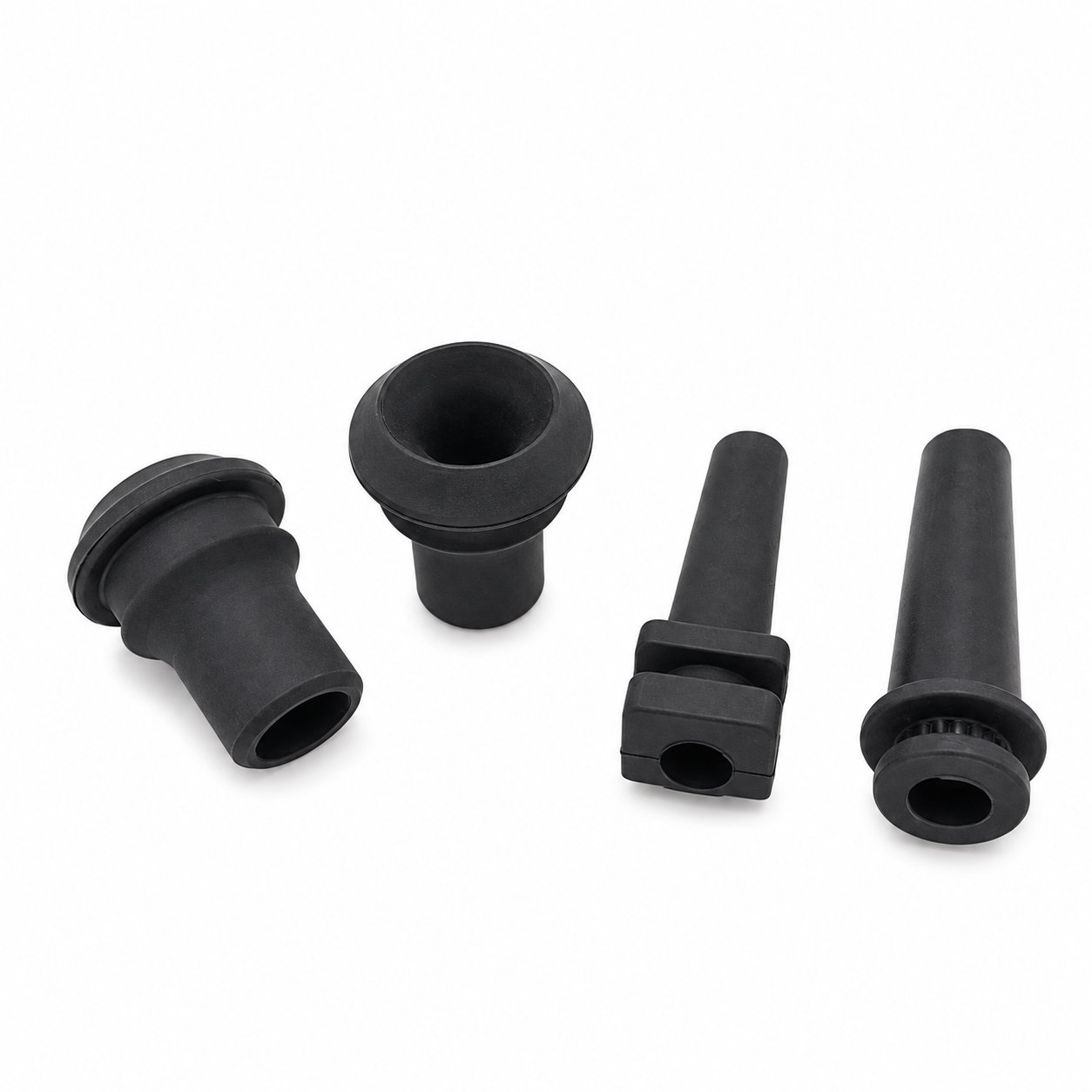

A rubber cable seal grommet with a long sleeve surrounds an extended section of the cable beyond its entry point. The sleeve should follow the cable's intended direction without becoming a lever that pulls the retaining portion away from the opening. Nearby routing and support positions are therefore part of the fit evaluation.
ETOL can customize the sleeve length, passage, material and hardness. Compare the profile with the actual cable and the space available after the enclosure is complete. Leave the cable enough freedom to follow its permitted bend without folding the rubber sharply at one end.
During assembly, position the cable supports before judging the final sleeve shape. Examine both the extended section and the entry contact after the cable reaches those supports. Any sealing function should be evaluated in that completed arrangement. If the sleeve leans strongly to one side during servicing, inspect the route and attachment points before replacing it; another sleeve may be subjected to the same load if the routing issue remains.
- Material options
- Custom rubber compound and color, selected for the contact conditions and required geometry.
- Hardness range
- 30–90 Shore A for rubber. Assess the grade against this fit requirement: Leave the cable enough freedom to follow its permitted bend without folding the rubber sharply at one end.
- Custom profile & fit
- Compare the profile with the actual cable and the space available after the enclosure is complete.
- Assembly considerations
- Nearby routing and support positions are therefore part of the fit evaluation.
- Design check
- Any sealing function should be evaluated in that completed arrangement.
Photos illustrate structure or material only. The sleeve should follow the cable's intended direction without becoming a lever that pulls the retaining portion away from the opening. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
