Custom manufacturing example · Dustproof round silicone rubber firewall grommet
CUSTOM RUBBER & SILICONE MANUFACTURING
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
Share the part, its application and your estimated quantity.

Selected for the contact, temperature and movement
Define the visible surfaces and intended color
Develop holes, lips and walls around the mating parts
Match the attachment and installation method

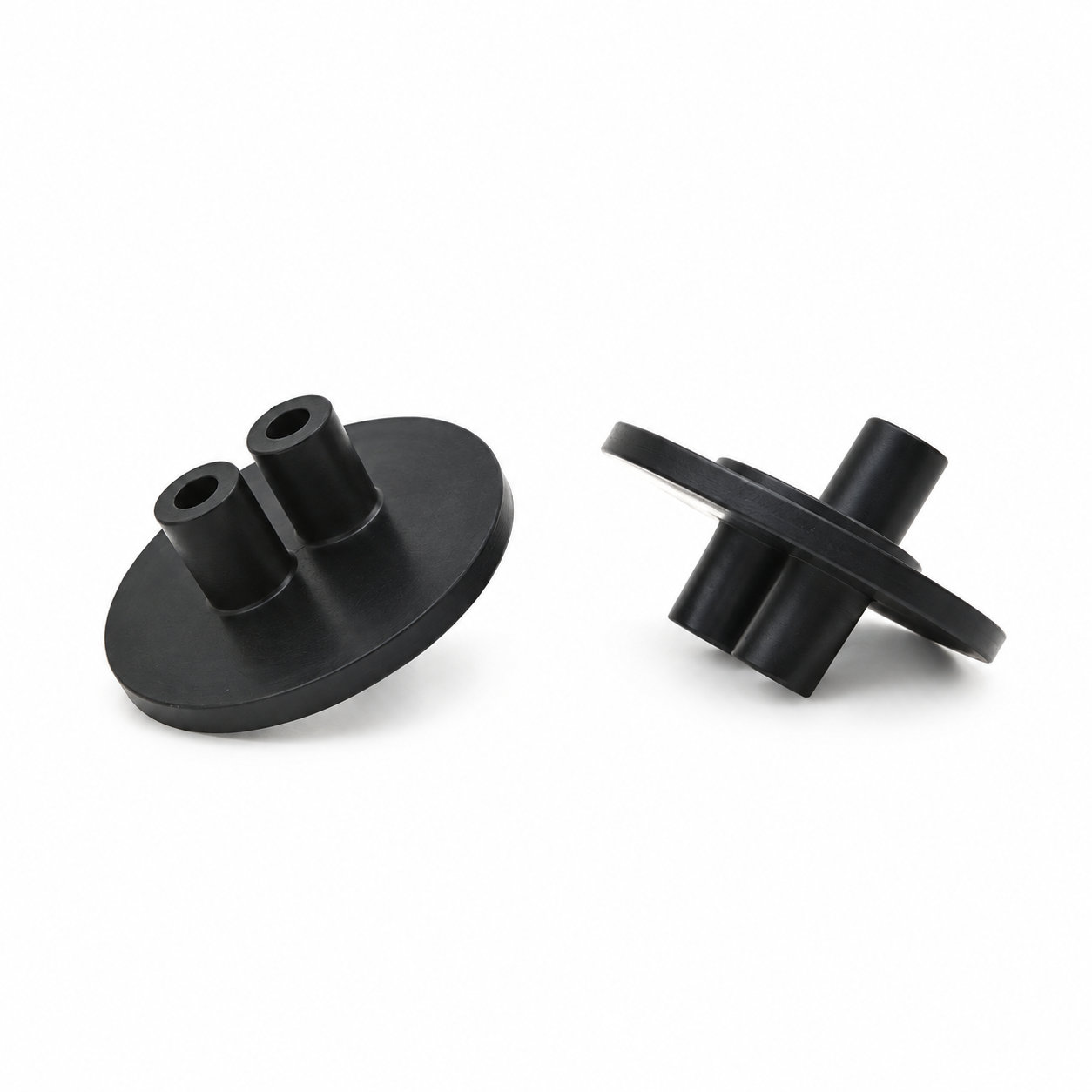

A round silicone rubber firewall grommet cushions a cable route through a partition and can be developed for a dust-resistant interface. Its retained profile should suit the hole and the final harness arrangement. The firewall location should be assessed with the complete assembly rather than treated as a separate fire rating for the rubber.
Fit the grommet while the opening is accessible and inspect the full circumference. Nearby brackets or trim installed afterward can disturb the cable and pull the liner out of its original position. Recheck the retained edge once those parts and harness supports are secured. Custom dimensions, material and color can follow the intended location. During servicing, keep loose debris from collecting at the passage before the liner is refitted. If a cable is pulled back through, examine the inner edge for a cut from its termination. Restore the correct route and seating before closing the surrounding area, so the partition edge remains protected when access is limited again.
Photos illustrate structure or material only. Nearby brackets or trim installed afterward can disturb the cable and pull the liner out of its original position. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
FIND THE RIGHT FIT
Choose a profile to compare part numbers and dimensions. Inch and metric sizes are listed in separate tables.
274 entries for Type D round through-hole grommets. Original fractions are retained, and exactly equivalent standard inch fractions replace decimal values where possible. Other values remain decimal inches.
