Factory customized color round flat silicone rubber washer

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

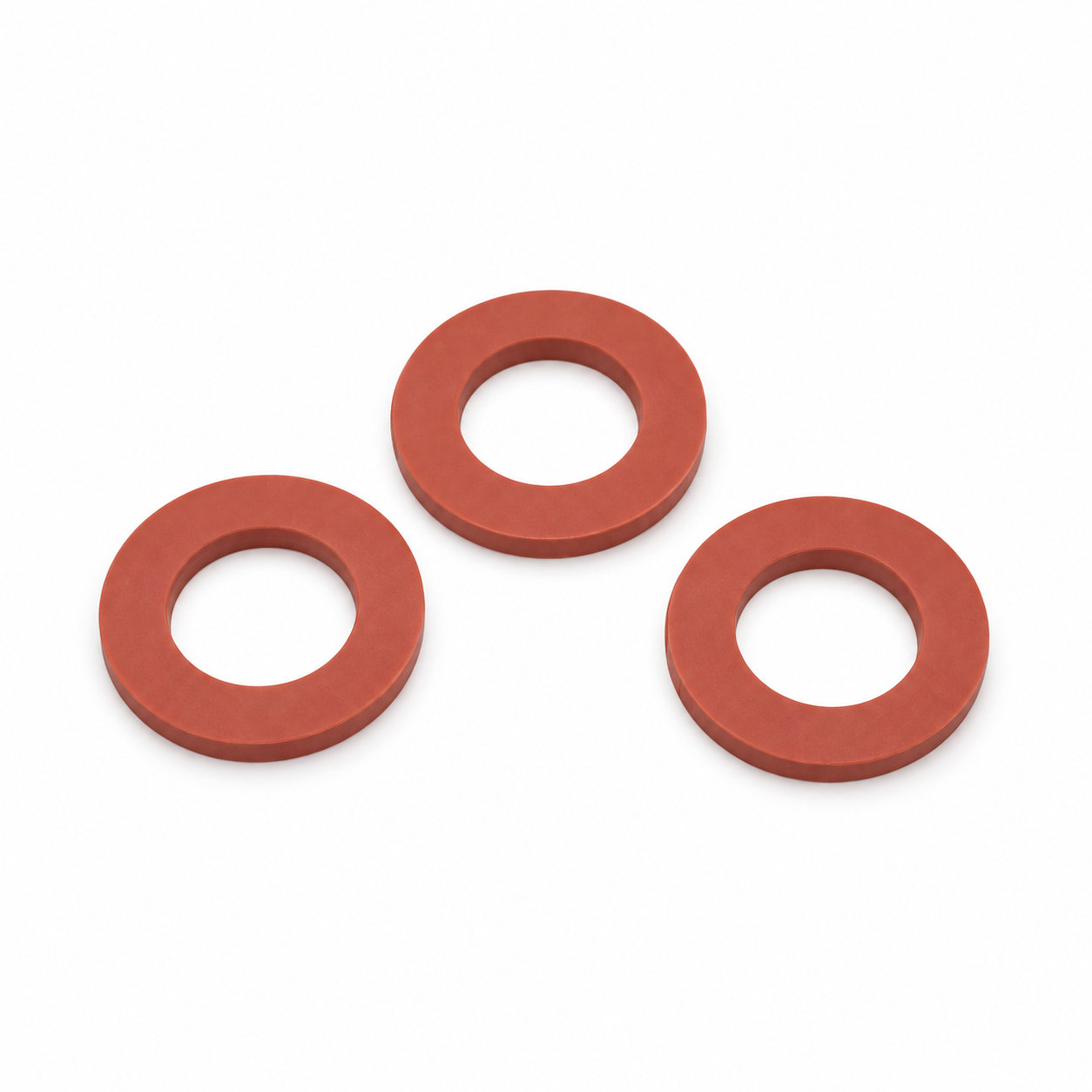

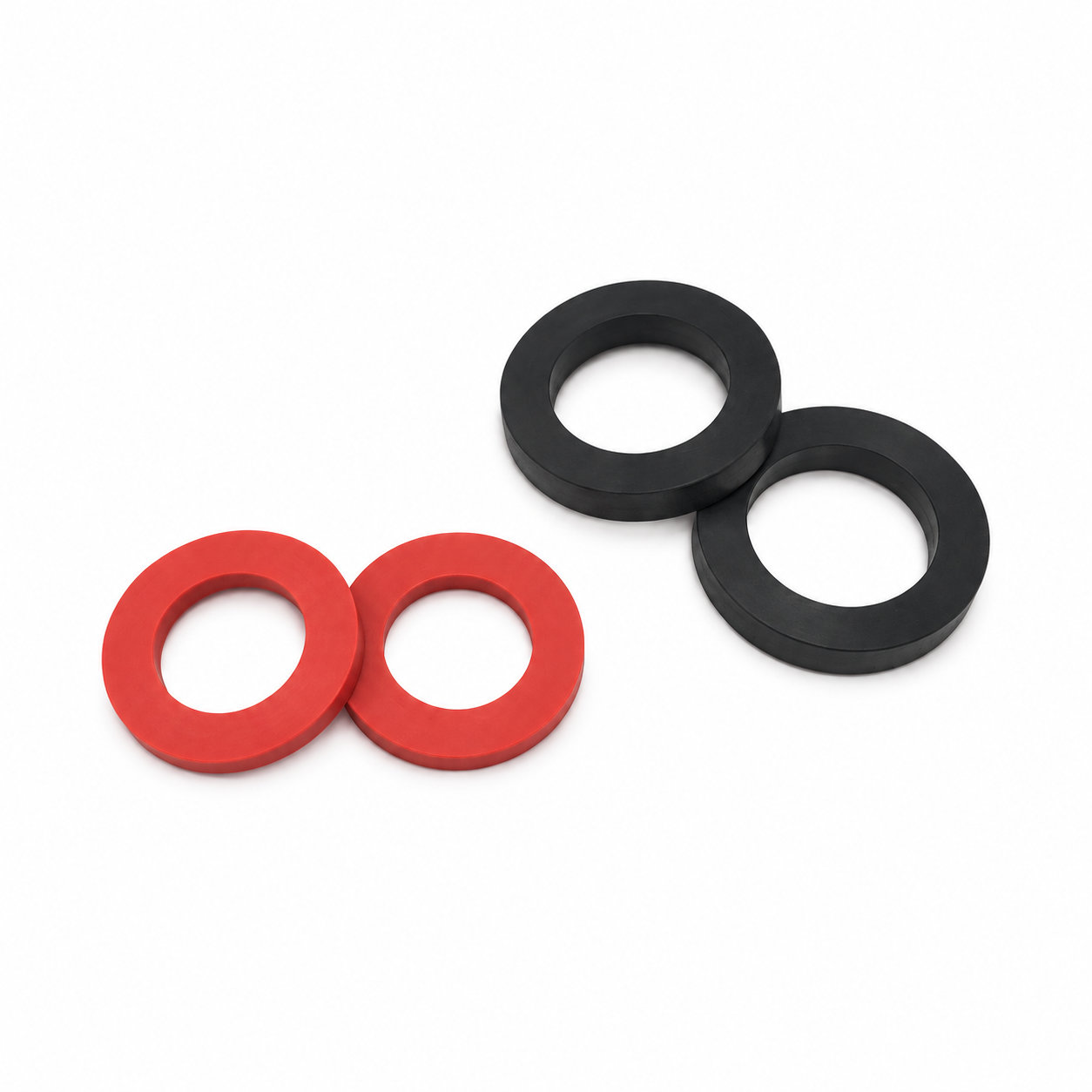

A round flat silicone rubber washer can be customized in color while keeping its main function at the mating faces. Color may help distinguish versions during assembly, but the inside diameter, outside diameter, and thickness still determine the fit. Keep any color convention associated with those actual dimensions and the selected compound.

Check the support beneath the full washer face. A portion left hanging into a recess can deform differently from the supported region when the joint closes. The center opening should remain clear of the intended passage or fastener without allowing the washer to shift excessively.

Place the washer flat and centered before bringing the adjoining faces together. Avoid dragging it around with rotating hardware, which can distort the contact band. Select silicone for the actual medium and temperature at the joint, and assess any sealing duty on the assembled connection. During service, inspect for uneven flattening or an inner edge pushed into the opening before fitting the correct replacement version.

Material options: Silicone. Custom formulation and color for the intended contact conditions.
Hardness selection: Silicone: 20–80 Shore A. A portion left hanging into a recess can deform differently from the supported region when the joint closes.
Custom dimensions: Color may help distinguish versions during assembly, but the inside diameter, outside diameter, and thickness still determine the fit.
Fit & assembly: The center opening should remain clear of the intended passage or fastener without allowing the washer to shift excessively.
Use & inspection: During service, inspect for uneven flattening or an inner edge pushed into the opening before fitting the correct replacement version.

Photos illustrate structure or material only. Color may help distinguish versions during assembly, but the inside diameter, outside diameter, and thickness still determine the fit. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
