Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · FKM NBR SBR non-standard rubber seal/gasket for industrial use
CUSTOM RUBBER & SILICONE MANUFACTURING

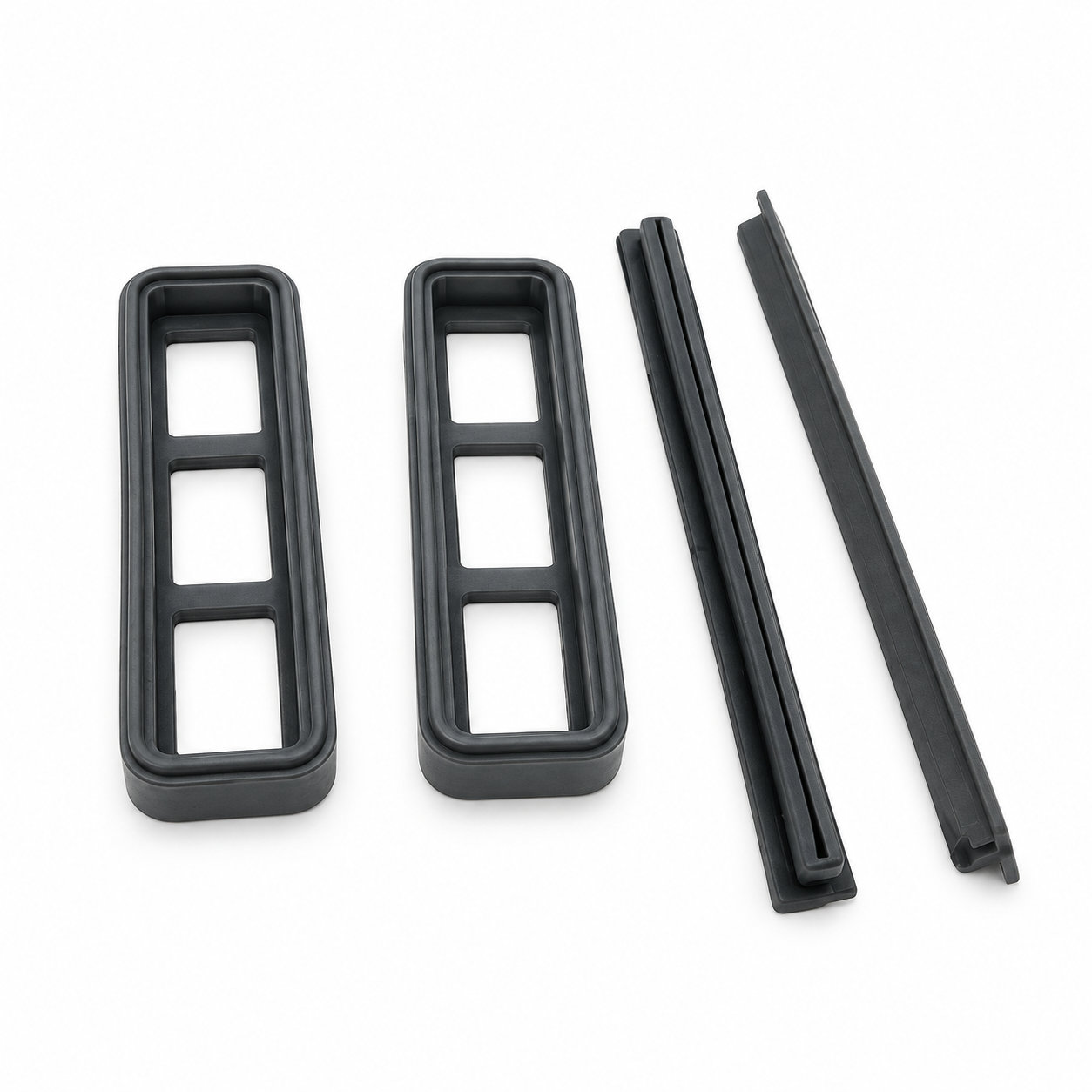

FKM NBR SBR non-standard rubber seal/gasket for industrial use
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A non-standard rubber seal can be developed for an industrial joint whose outline or section differs from common gasket sizes. FKM, NBR and SBR are among the named material options, with the finished compound chosen for the actual medium, temperature and contact conditions. These alternatives should be evaluated as distinct choices, not interchangeable labels for the same performance.
Define the working contour, thickness and support before selecting the final material. The joint should compress the gasket where contact is needed without leaving a thin edge unsupported. If the contour includes holes or narrow bridges, check how those regions locate during assembly and whether closing the joint displaces them.
Custom color can help identify variants in an equipment range, while the actual compound and dimensions remain the basis for replacement. Clean the mating faces before installation and place the gasket without stretching it into position. When the joint is opened, inspect for local pinching, extrusion or a changed shape. These observations can reveal a fit or compression issue that a simple visual comparison of loose gaskets would miss.
- Material options
- NBR / FKM / SBR. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. The joint should compress the gasket where contact is needed without leaving a thin edge unsupported.
- Custom dimensions
- A non-standard rubber seal can be developed for an industrial joint whose outline or section differs from common gasket sizes.
- Fit & assembly
- Clean the mating faces before installation and place the gasket without stretching it into position.
- Use & inspection
- Custom color can help identify variants in an equipment range, while the actual compound and dimensions remain the basis for replacement.
Photos illustrate structure or material only. The joint should compress the gasket where contact is needed without leaving a thin edge unsupported. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
